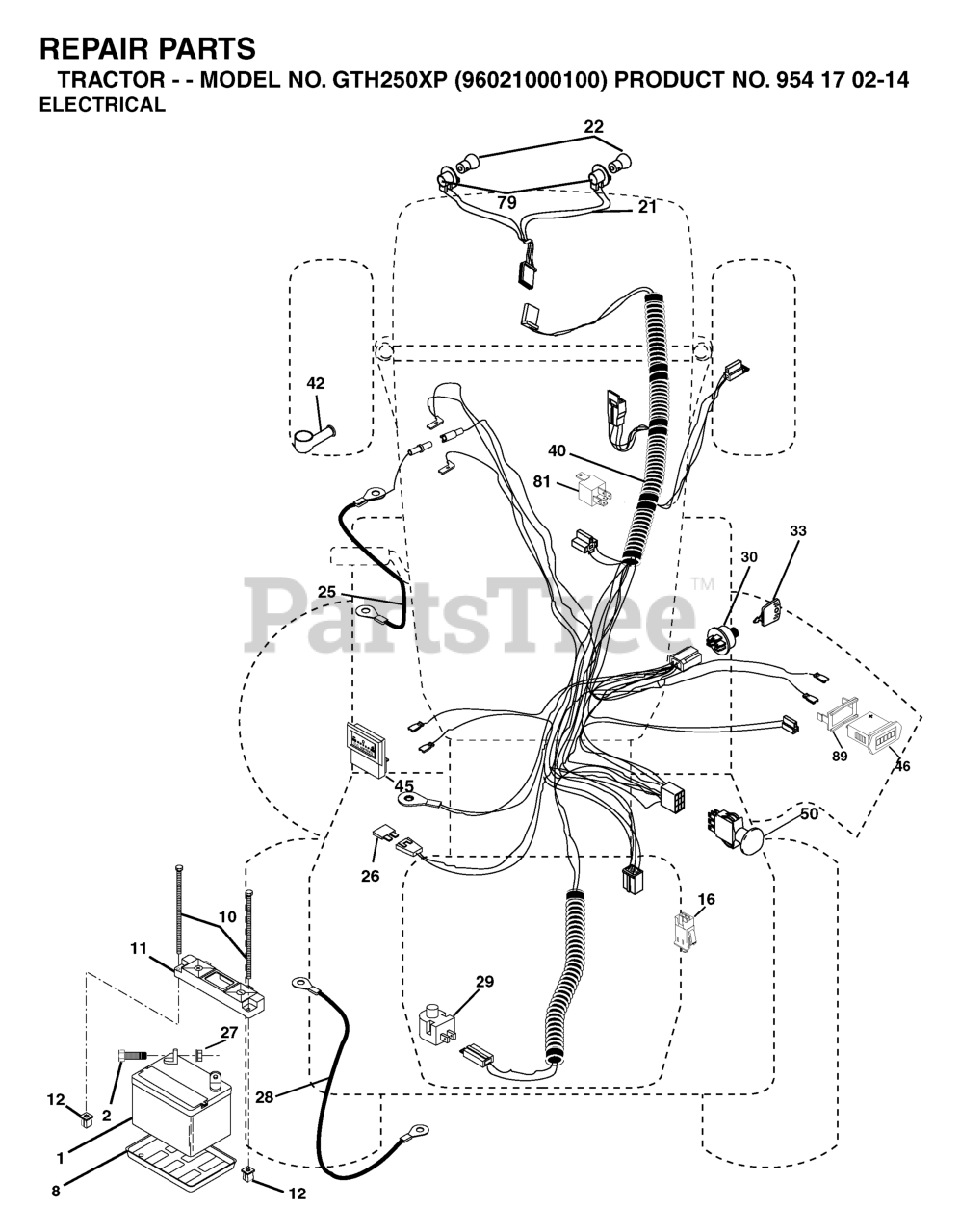

GTH 250 XP (960210001-00) - Husqvarna Garden Tractor (2005-01) ELECTRICAL Parts Diagram

Garden Tractor

ELECTRICAL Parts Diagram

  • Title

11

Husqvarna 532150109

BATTERY HOLDDOWN FRONT MOUNT

$

$

Not available

1

Husqvarna 532144927

BATTERY 12V .35 AMP
(Superseded to 532125603)

$205.99

$

In Stock, only 3 left!

0

8

Husqvarna 532124886

BATTERY TRAY T
(Superseded to 532007603)

$7.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532145211

BOLT 1/4-20 X 7.5
(Superseded to 532150177)

$

$

Not available

40

Husqvarna 532188032

NEEDS DESCRIPTION

$

$

Currently unavailable

21

Husqvarna 532175688

HARNESS.W/LIGHT SOCKET

$44.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532170697

CABLE, GROUND

$

$

Not available

12

Husqvarna 532145769

NUT, PUSH NYLON 1/4" BATTERY
(Superseded to 532150177)

$

$

Not available

25

Husqvarna 532185461

CABLE.4GA.RED.W/16GA.RED.WIRE

$24.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532154336

COVER.TERMINAL.RED

$8.99

$

In Stock, Qty 10

0

30

Husqvarna 532175566

IGNITION SWITCH

$28.99

$

In Stock, Qty 20+

0

79

Husqvarna 532175242

BULB HOLDER ASM.

$18.99

$

Usually ships in 3-10 days

0

89

Husqvarna 532169639

BRACKET SNAP-IN HOURMETER

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532108824

FUSE HYT

$6.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 20+

0

27

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 532121305

RP.SWITCH.PLUNGER.NC.GRAY
(Superseded to 532421062)

$17.99

$

In Stock, Qty 20+

0

33

Husqvarna 532140401

KEY MLD GEN DELTA

$6.99

$

In Stock, Qty 20+

0

22

Husqvarna 532004152

LIGHTBULB

$4.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532174651

RP.PTO.SWITCH.8 TERMINAL.BLACK
(Superseded to 582107601)

$31.99

$

In Stock, Qty 20+

0

45

Husqvarna 532122822

AMMETER

$28.99

$

In Stock, only 2 left!

0

46

Husqvarna 532169635

HOUR METER
(Superseded to 532169642)

$103.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532109748

RELAY.ASSY.T

$30.99

$

Usually ships in 3-10 days

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, Qty 10

0
