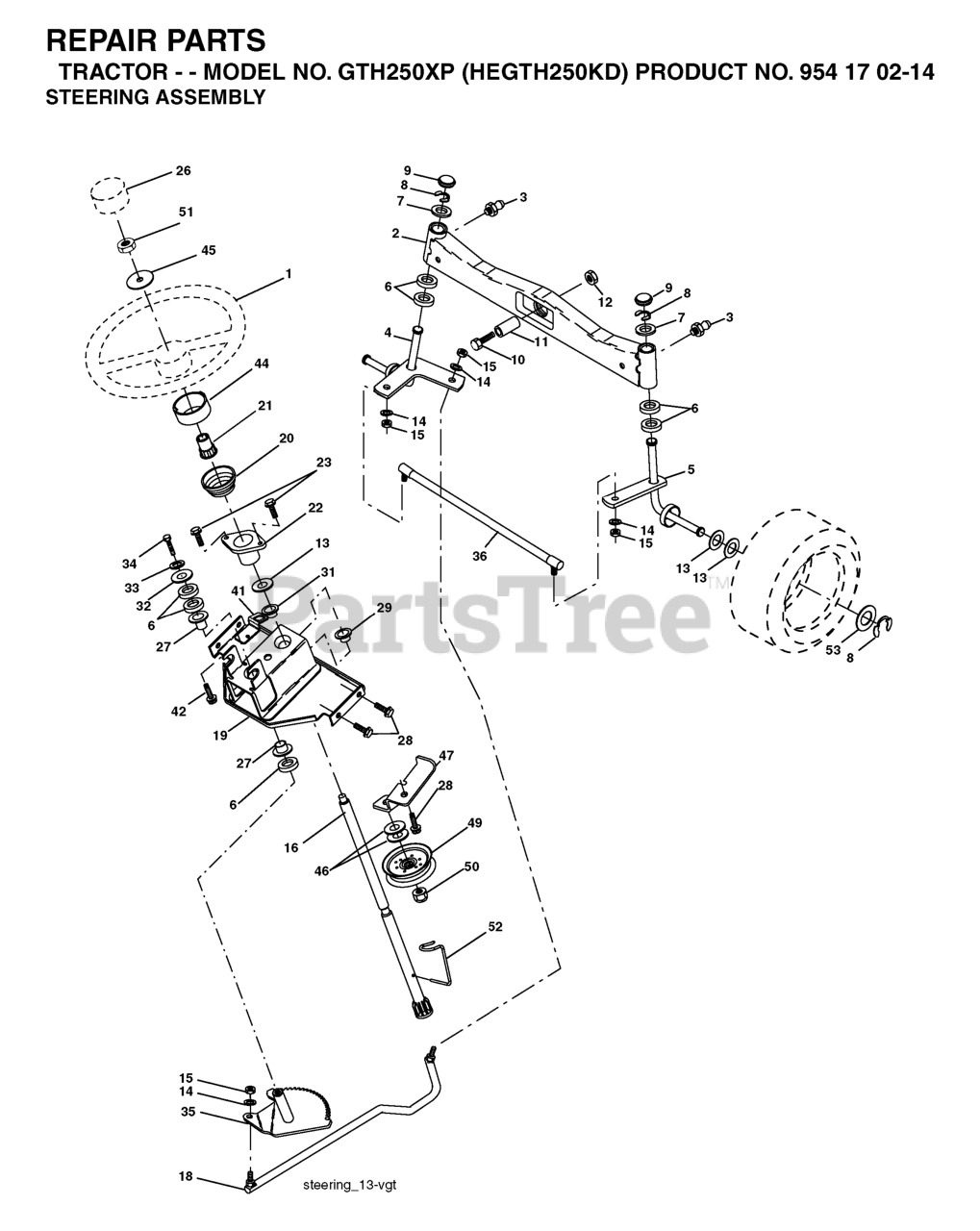

GTH 250 XP (954170214-D) - Husqvarna Garden Tractor (2004-09) STEERING Parts Diagram

Garden Tractor

STEERING Parts Diagram

  • Title

31

Husqvarna 532138136

BUSHING.NYLINER.

$10.99

$

In Stock, Qty 5

0

29

Husqvarna 532104239

BEARING-FLANGE GT

$12.99

$

In Stock, only 3 left!

0

36

Husqvarna 532186799

ROD.TIE.NON-ADJUSTABLE

$87.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532175572

DRAGLINK, BALL JOINT (3SPG1401

$74.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532177592

BOOT, STEERING
(Superseded to 532163887)

$

$

Not available

6

Husqvarna 532124931

THRUST WASHER
(Superseded to 532006266)

$7.49

$

In Stock, Qty 8

0

46

Husqvarna 819131610

WASHER PM

$6.49

$

In Stock, Qty 7

0

26

Husqvarna 532166626

CAP.WHEEL.STEERING.GREY
(Superseded to 532172092)

$17.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532178557

AXLE.FRONT.CAST.MACHINE.W/ZERK

$

$

Not available

51

Husqvarna 873940800

NUT.HEX.1/2-20

$7.49

$

In Stock, only 4 left!

0

4

Husqvarna 532161849

SPINDLE ASSY LH

$

$

Not available

41

Husqvarna 532155246

BRACKET INTERLOCK

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 532155105

BUSHING, STRG. BLK
(Superseded to 532155108)

$7.99

$

In Stock, only 1 left!

0

3

Husqvarna 532183226

FITTING.GREASE.TAPERED

$7.49

$

In Stock, only 2 left!

0

42

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 532179471

BRKT.ASM.IDLER.STATIONERY

$7.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532161848

SPINDLE ASM RH

$

$

Not available

14

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

52

Husqvarna 532175553

CLIP.STEERING

$13.99

$

In Stock, only 1 left!

0

35

Husqvarna 532138059

GEAR.ASM.SECTOR.

$

$

Not available

53

Husqvarna 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

1

Husqvarna 532166627

STEERING WHEEL
(Superseded to 532159944)

$

$

Not available

32

Husqvarna 819111610

WASHER

$6.49

$

Usually ships in 3-10 days

0

44

Husqvarna 532177593

EXTENSION STEERING PREMIUM
(Superseded to 532160135)

$

$

Not available

45

Husqvarna 819182411

Washer 9/16 ID x 1 1/2 OD 11 Ga. Zin

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532156011

SUPPORT ASM., STEERING VGT

$

$

Not available

10

Husqvarna 874781044

Bolt, Hex 5/8 -11 x 2 - 3/4 Gr. 5

$

$

Not available

33

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

12

Husqvarna 873901000

NUT-LOC,FLANGE LT
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

49

Husqvarna 532175820

PULLEY.IDLER.FLAT.46.PR.DR.

$

$

Not available

16

Husqvarna 532186814

SHAFT ASM, STEERING

$100.99

$

In Stock, Qty 5

0

34

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

21

Husqvarna 532159945

STEERING WHEEL ADAPTOR

$

$

Not available

11

Husqvarna 532136518

TUBE, PIVOT AXLE

$9.99

$

Usually ships in 3-10 days

0

8

Husqvarna 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532124937

BRNG T
(Superseded to 532003366)

$4.99

$

In Stock, Qty 19

0

15

Husqvarna 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, only 2 left!

0

9

Husqvarna 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 8

0
