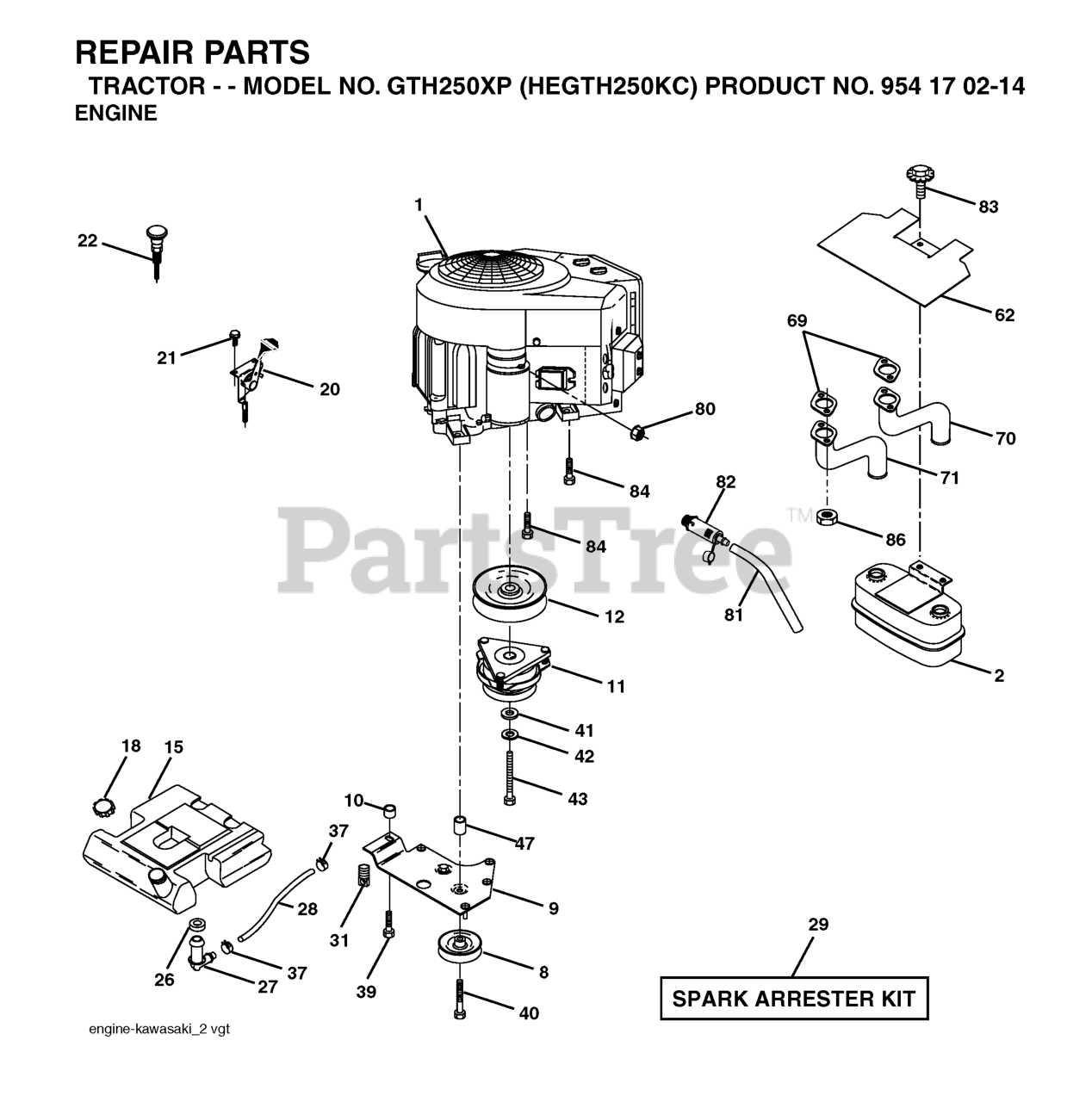

GTH 250 XP (954170214-C) - Husqvarna Garden Tractor (2004-01) ENGINE Parts Diagram

Garden Tractor

ENGINE Parts Diagram

  • Title

70

Husqvarna 532175766

TUBE EXHAUST LH

$

$

Not available

31

Husqvarna 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

47

Husqvarna 532175288

BUSHING

$

$

Not available

9

Husqvarna 532177748

KEEPER ASM BELT ENGINE

$

$

Not available

25

Husqvarna 873920600

Nut Keps 3/8 - 24 UNF

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532176252

HEAT SHIELD

$

$

Not available

21

Husqvarna 532171875

SCREW
(Superseded to 532189747)

$17.99

$

Usually ships in 3-10 days

0

39

Husqvarna 817490636

SCREW TT 3/8-16X2-1/4 UNC
(Superseded to 596564004)

$2.49

$

In Stock, Qty 6

0

15

Husqvarna 532179115

TANK.FUEL.5.0 LEFT.FILL.YTGT

$

$

Not available

22

Husqvarna 532178148

CHOKE CONTROL
(Superseded to 532175441)

$

$

Not available

28

Husqvarna 532007834

FUEL LINE
(Superseded to 532008542)

$

$

Not available

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

82

Husqvarna 532181654

PLUG DRAIN OIL EASY
(Superseded to 532428287)

$18.99

$

In Stock, only 2 left!

0

27

Husqvarna 532139277

STEM FUEL TANK

$8.99

$

In Stock, Qty 5

0

8

Husqvarna 532121361

RP.IDLER GROOVED
(Superseded to 532139123)

$37.99

$

In Stock, only 1 left!

0

71

Husqvarna 532175767

TUBE.EXHAUST.KAWASAKI.RH

$

$

Not available

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

69

Husqvarna 532178151

GASKET

$2.49

$

In Stock, Qty 20+

0

80

Husqvarna 532163305

FLANGE NUT
(Superseded to 873030800)

$

$

Not available

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$6.49

$

In Stock, only 3 left!

0

83

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, only 2 left!

0

10

Husqvarna 532175287

BUSHING

$

$

Not available

41

Husqvarna 532126197

WASHER

$8.99

$

In Stock, only 3 left!

0

12

Husqvarna 532143996

PULLEY ENG VGT ELECT CLUTCH

$53.99

$

Usually ships in 3-10 days

0

40

Husqvarna 817490664

Screw TT 3/8-16 x 4 unc

$

$

Not available

26

Husqvarna 532003645

BUSHING OUTLET T

$4.99

$

Usually ships in 3-10 days

0

84

Husqvarna 817060624

SCREW 3/8-16 X 1-1/2

$7.49

$

In Stock, only 1 left!

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 5

0

18

Husqvarna 532181803

TANK CAP
(Superseded to 532179124)

$37.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

20

Husqvarna 532178147

CONTROL.THROTTLE.COBRA.42"BLK.

$36.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532179953

BOLT HEX 7/16-20 X 3.75 GR. 5
(Superseded to 501606601)

$4.99

$

In Stock, only 1 left!

0

11

Husqvarna 532179335

CLUTCH MZ ZTR GT.48/54"1.125"

$341.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532417071

PLATE.ENGINE.MOUNT.PNT
(Superseded to 583748701)

$30.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532180478

PULLEY,ENGINE TRACTION DRIVE
(Superseded to 595926601)

$31.99

$

Usually ships in 3-10 days

0

4

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

34

Husqvarna 532198580

CLEVIS PIN

$6.49

$

Usually ships in 3-10 days

0

48

Husqvarna 532166785

LOCKNUT 5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, only 1 left!

0

49

Husqvarna 532415340

FRAME.WELD.PNT.003BGP

$

$

Not available

52

Husqvarna 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 12

0

21

Husqvarna 874610516

SCREW

$4.99

$

In Stock, only 4 left!

0

50

Husqvarna 532403215

PLATE.REAR

$

$

Not available

24

Husqvarna 532179157

PULLEY, ENGINE IMPELLER DRIVE
(Superseded to 532426491)

$26.99

$

In Stock, only 1 left!

0

46

Husqvarna 532410877

PAN.BOTTOM.PLASTIC

$31.99

$

In Stock, only 2 left!

0

57

Husqvarna 811050500

WASHER EXT TOOTH LOCK 5/16
(Superseded to 810040500)

$3.99

$

In Stock, only 4 left!

0

29

Husqvarna 532192213

COVER.ASM.BELT/STORAGE
(Superseded to 532443030)

$40.99

$

In Stock, only 1 left!

0

44

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 2 left!

0

47

Husqvarna 532184471

SCREW, HEX HEAD, TAPPING

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532415450

PLATE.SHIFTER.BZP

$7.99

$

In Stock, only 3 left!

0

7

Husqvarna 532166785

LOCKNUT 5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, only 1 left!

0

39

Husqvarna 532416864

BRACKET.CLUTCH.PLATE.BZP

$4.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532155452

BELT.GUIDE.RH

$6.49

$

In Stock, only 1 left!

0

9

Husqvarna 532407908

NEEDS DESCRIPTION

$

$

Not available

51

Husqvarna 532406109

SHAFT, AUGER CONTROL
(Superseded to 532429668)

$47.99

$

In Stock, only 1 left!

0

38

Husqvarna 532187101

LINK, SPEED CONTROL

$

$

Not available

35

Husqvarna 532405485

ARM, AUGER CONTROL

$9.99

$

In Stock, only 1 left!

0

27

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

1

Husqvarna 532181044

RP SPRING, TRACTION IDLER
(Superseded to 532414557)

$6.49

$

In Stock, only 3 left!

0

16

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532180522

PULLEY.W/SPACER.2.25

$31.99

$

In Stock, only 2 left!

0

41

Husqvarna 532700279

RETAINER CLIP

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532400026

WASHER, FLAT 3/8

$9.49

$

In Stock, only 3 left!

0

14

Husqvarna 532178828

SPRING, BRAKE

$6.49

$

In Stock, Qty 6

0

18

Husqvarna 874780524

HEX BOLT
(Superseded to 539976935)

$

$

Not available

31

Husqvarna 817490408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532180523

PULLEY.W/SPACER.2.75

$24.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532178830

COVER.STORAGE.SNOW

$

$

Not available

12

Husqvarna 532410420

ARM PAD ASSY
(Superseded to 532422111)

$15.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532402881

BOLT.SHOULDER.3/X.25

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532184074

BRACKET, IDLER PIVOT
(Superseded to 532422762)

$91.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 532415435

PLATE.CLUTCH.BZP

$2.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532408007

BELT.V.IMPELLER

$43.99

$

In Stock, Qty 9

0

13

Husqvarna 532085179

RETAINER CLIP PM

$7.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532409475

SPACER.ENGINE.PULLEY

$9.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532175331

RP BUSHING, IDLER PIVOT
(Superseded to 587343701)

$6.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532184804

IDLER ARM
(Superseded to 585238401)

$44.99

$

In Stock, only 2 left!

0

10

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

33

Husqvarna 532415433

BRACKET.SHIFTER.PLATE.BZP

$4.99

$

In Stock, only 1 left!

0

6

Husqvarna 532059289

STEEL WASHER

$4.99

$

In Stock, only 3 left!

0

53

Husqvarna 532193071

KEY.PUSH/PULL.B&S.283707
(Superseded to 532019371)

$7.49

$

In Stock, Qty 20+

0

8

Husqvarna 532175330

PIN, IDLER PIVOT

$5.99

$

In Stock, Qty 18

0
