GTH 250 XP (954170092-A) - Husqvarna Garden Tractor (2003-01) CHASSIS & ENCLOSURES Parts Diagram

Garden Tractor

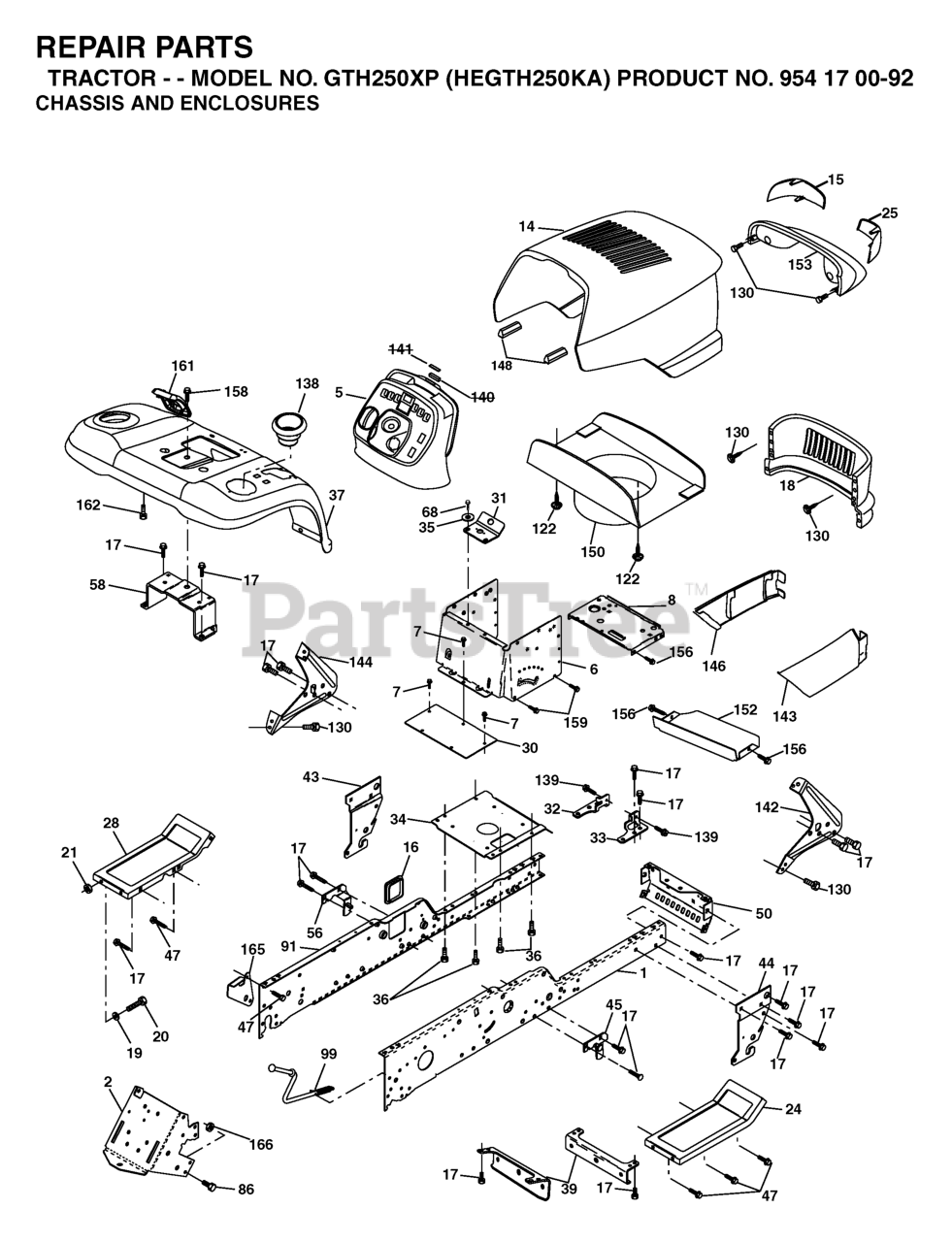

CHASSIS & ENCLOSURES Parts Diagram

  • Title
5

Husqvarna 532177582

DASH.STEALTH.YTGT.2CYL.BLK
(Superseded to 583716201)

$

$

Not available

47

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532177583

HOOD ASM.
(Superseded to 532194976)

$121.99

$

Usually ships in 3-10 days

0

130

Husqvarna 532171875

SCREW
(Superseded to 532189747)

$17.99

$

Usually ships in 3-10 days

0

36

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

161

Husqvarna 532181787

CONSOL.FUEL.WINDOW.BLACK

$34.99

$

Usually ships in 3-10 days

0

158

Husqvarna 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532175282

DRAWBAR, GT

$

$

Not available

33

$6.49

$

In Stock, only 1 left!

0

152

Husqvarna 532177956

BROWNING SHIELD

$

$

Not available

6

Husqvarna 532157882

DASH VGT, LOWER

$

$

Not available

139

Husqvarna 532171873

BOLT, SHOULDER 5/16-18

$5.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532136939

FRONT SUSPENSION BRKT LH

$

$

Not available

68

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

159

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532161419

BRACKET SUPT 1-PC VGT STEERING

$4.99

$

Usually ships in 3-10 days

0

99

Husqvarna 532177143

ROD ASM, BYPASS

$24.99

$

Usually ships in 3-10 days

0

20

Husqvarna 874760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532161842

LENS RH
(Superseded to 583125201)

$

$

Not available

138

Husqvarna 532181798

CUPHOLDER
(Superseded to 583710501)

$12.99

$

Usually ships in 3-10 days

0

143

Husqvarna 532177586

SKIRT GRILLE RH

$43.99

$

In Stock, only 2 left!

0

156

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

32

$7.49

$

In Stock, only 4 left!

0

91

Husqvarna 532180374

KIT.RAIL.CHASS.LH.GT

$56.99

$

Usually ships in 3-10 days

0

35

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 532177584

GRILLE
(Superseded to 532182873)

$193.99

$

Usually ships in 3-10 days

0

19

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532183569

BRACKET ASM., FENDER

$14.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532177018

PLATE ASM ENG CHASSIS

$37.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532175278

BRACKET AXLE, FRONT

$

$

Not available

44

Husqvarna 532136940

FRONT SUSPENSION BRKT RH

$

$

Not available

24

Husqvarna 532181058

FOOTREST PNT RH
(Superseded to 532442579)

$

$

Not available

17

Husqvarna 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

142

Husqvarna 532161897

BRACKET DASH STEALTH(R)

$7.49

$

Usually ships in 3-10 days

0

56

Husqvarna 532176016

BRACKET ASM., SUSP CHASSIS LH

$

$

Not available

45

Husqvarna 532176018

BRACKET, ASM., SUSP CHASSIS RH

$

$

Not available

16

Husqvarna 532121794

COVER ACCESS

$

$

Not available

8

Husqvarna 532145166

SUPPORT, BATTERY

$

$

Not available

122

Husqvarna 532161464

SCREW.HEX.WS.HD.8-18 X 7/8

$

$

Not available

50

Husqvarna 532175476

BRACKET, CHASSIS FRONT

$

$

Not available

148

Husqvarna 532164655

EXTRUSION BUMPER (3 2) (2 2)

$8.99

$

Usually ships in 3-10 days

0

165

Husqvarna 532183554

BRACKET SUPPORT TANK

$85.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532145052

SADDLE.HYDRO.95

$

$

Not available

153

Husqvarna 532179765

LIGHT ASM.

$

$

Not available

146

Husqvarna 532177587

SKIRT GRILLE LH

$

$

Not available

162

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532161841

LENS LH
(Superseded to 583125201)

$

$

Not available

37

Husqvarna 532181720

FENDER, PNT
(Superseded to 532196023)

$

$

Not available

150

Husqvarna 532161237

DUCT HEAT HOOD
(Superseded to 532190309)

$45.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532180375

KIT.RAIL.CHASS.RH.GT

$56.99

$

Usually ships in 3-10 days

0

144

Husqvarna 532161900

BRACKET DASH STEALTH LH

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

166

Husqvarna 873680700

Nut, Crownlock Hex 7/16-14 unc

$2.99

$

Usually ships in 3-10 days

0

86

Husqvarna 874780716

BOLT FIN HEX 7/16-14 X 1

$4.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532181057

FOOTREST PNT LH
(Superseded to 532182507)

$43.99

$

Usually ships in 3-10 days

0
