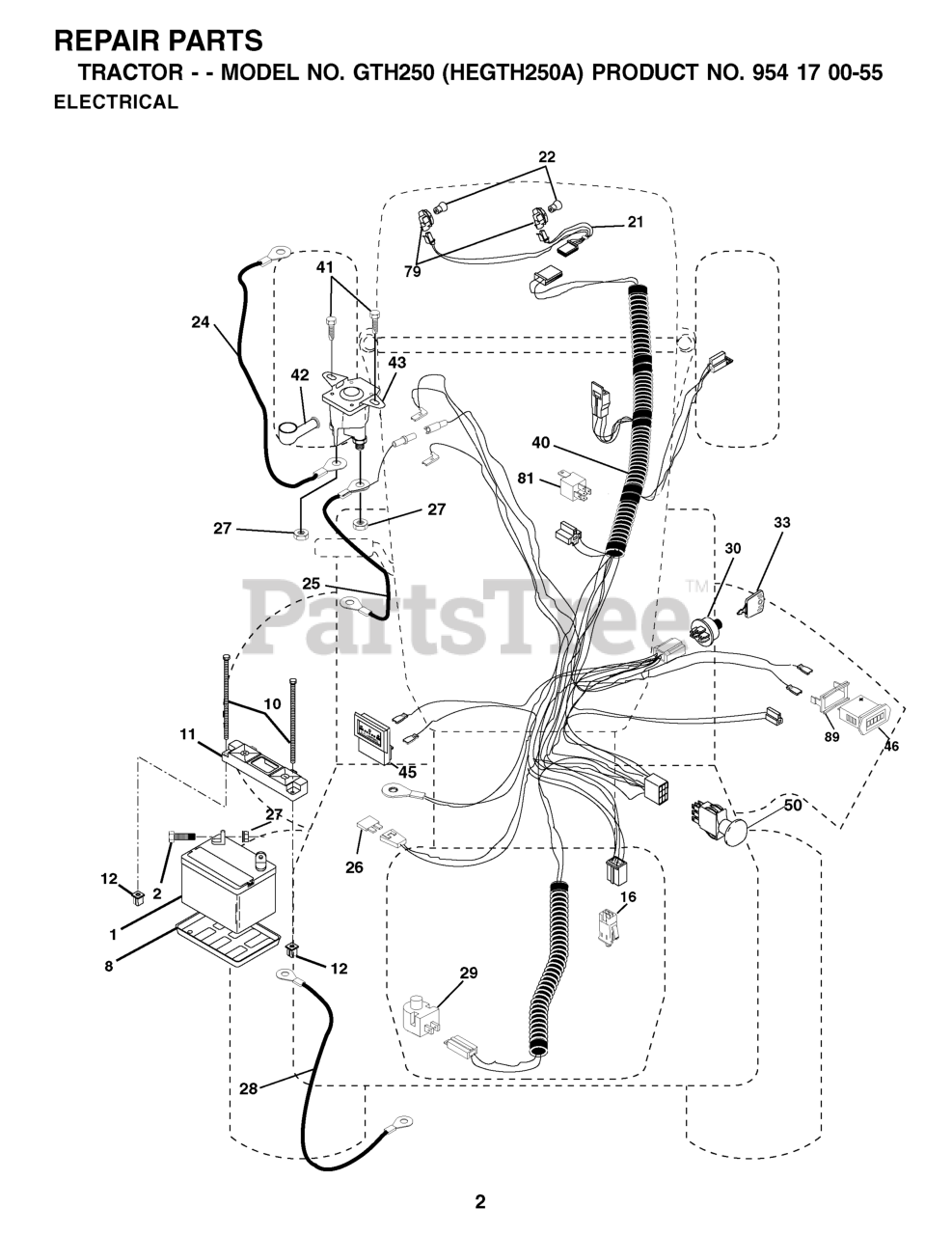

GTH 250 (954170055-A) - Husqvarna Garden Tractor (2002-03) ELECTRICAL Parts Diagram

Garden Tractor

ELECTRICAL Parts Diagram

  • Title
46

Husqvarna 532169635

HOUR METER
(Superseded to 532169642)

$103.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532145211

BOLT 1/4-20 X 7.5
(Superseded to 532150177)

$

$

Not available

26

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532170238

HARNESS, IGNITION

$194.99

$

Usually ships in 3-10 days

0

89

Husqvarna 532169639

BRACKET SNAP-IN HOURMETER

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

28

Husqvarna 532170697

CABLE, GROUND

$24.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532175242

BULB HOLDER ASM.

$18.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532178861

SOLENOID
(Superseded to 532146154)

$24.99

$

In Stock, only 2 left!

0

25

Husqvarna 532146149

CABLE, BATTERY

$10.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532145769

NUT, PUSH NYLON 1/4" BATTERY
(Superseded to 532150177)

$

$

Not available

21

Husqvarna 532175688

HARNESS.W/LIGHT SOCKET

$44.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532150109

BATTERY HOLDDOWN FRONT MOUNT

$

$

Not available

81

Husqvarna 532109748

RELAY.ASSY.T

$30.99

$

In Stock, only 1 left!

0

30

Husqvarna 532175566

IGNITION SWITCH

$26.99

$

In Stock, only 4 left!

0

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 5

0

50

Husqvarna 532174651

RP.PTO.SWITCH.8 TERMINAL.BLACK
(Superseded to 582107601)

$28.99

$

In Stock, Qty 8

0

24

Husqvarna 532124770

CABLE-BATTERY YTV
(Superseded to 532185464)

$10.99

$

Usually ships in 3-10 days

0

22

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532160784

PLUNGER SWITCH (COLOR:OLIVE)

$20.99

$

In Stock, only 1 left!

0

45

$20.99

$

In Stock, only 1 left!

0

8

Husqvarna 532124886

BATTERY TRAY T
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, only 1 left!

0

1

Husqvarna 532144927

BATTERY 12V .35 AMP
(Superseded to 532125603)

$194.99

$

In Stock, only 2 left!

0

33

Husqvarna 532140401

KEY MLD GEN DELTA

$6.99

$

In Stock, Qty 7

0
