GTH 250 (954140104-A) - Husqvarna Garden Tractor (1999-09) Lift Assembly Parts Diagram

Garden Tractor

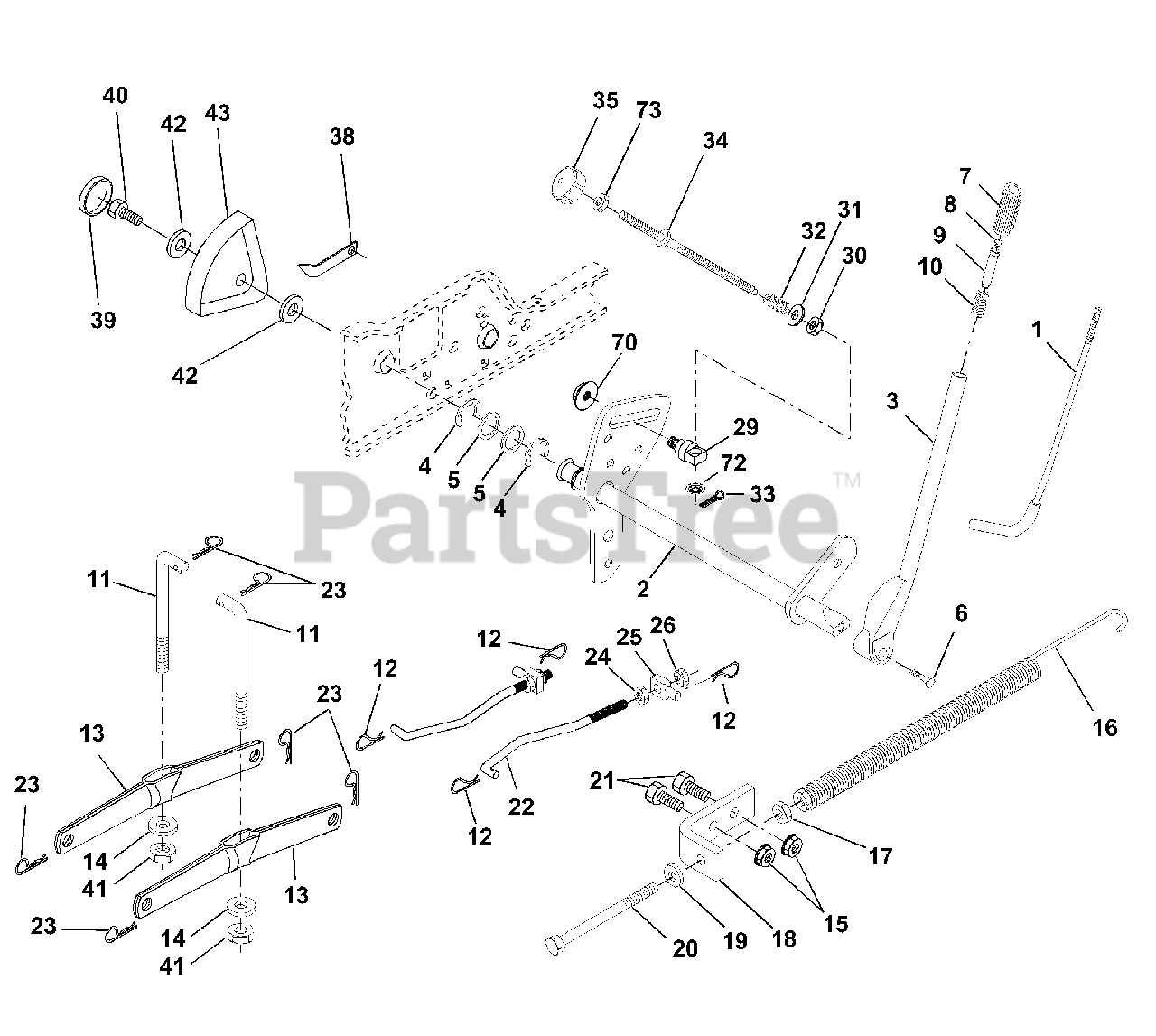

Lift Assembly Parts Diagram

  • Title

1

Husqvarna 532121006

Rod Asm., Lever

$34.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532159187

Shaft Asm., Lift Vgt
(Superseded to 532177535)

$

$

Not available

3

Husqvarna 532159189

Lever Asm., Lift Rh

$

$

Not available

4

Husqvarna 812000022

E-Ring Truarc #5133-87

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532171182

Washer 29/32 x 1-1/4 x 16 Ga.
(Superseded to 819292016)

$7.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532171362

Bolt, Fin Hex 3/8-16 x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532125631

Grip, Handle Fluted

$7.99

$

In Stock, only 1 left!

0

8

Husqvarna 532124526

Button, Plunger
(Superseded to 532125925)

$

$

Not available

9

Husqvarna 532122364

Plunger, Lever Lift
(Superseded to 532125925)

$

$

Not available

10

Husqvarna 532124874

Spring 2-1/8"
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532146704

Link Lift
(Superseded to 532145543)

$

$

Not available

12

Husqvarna 532171212

Retainer, Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 532139868

Arm, Suspension Vgt

$15.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532140302

Bearing
(Superseded to 532169865)

$

$

Not available

15

Husqvarna 532171168

Nut, Crownlock 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532124687

Spring Asm., Assist Lift
(Superseded to 532674247)

$

$

Not available

17

Husqvarna 532171357

Nut, Hex Jam 3/8-16 Unc
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

18

Husqvarna 532143363

Bracket, Spring Assist

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532171140

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 819131316)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 532171418

Bolt, Adjust Spring Assist
(Superseded to 532005328)

$2.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532171339

Bolt, Fin Hex 3/8-16 x 1
(Superseded to 819132411)

$

$

Not available

22

Husqvarna 532127218

Link, Front

$17.99

$

In Stock, only 4 left!

0

23

Husqvarna 532171211

Retainer, Spring
(Superseded to 532004939)

$

$

Not available

24

Husqvarna 873350800

Nut, Jam Hex 1/2-13 Unc

$

$

Not available

25

Husqvarna 532130171

Trunnion
(Superseded to 532175689)

$

$

Not available

26

Husqvarna 873680800

Nut, Crownlock 1/2-13 Unc
(Superseded to 873350800)

$

$

Not available

29

Husqvarna 532171203

Trunnion, Infin Height
(Superseded to 532150233)

$12.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532171355

Nut, Special
(Superseded to 532110807)

$

$

Not available

31

Husqvarna 532171207

Washer 13/32 x 5/8 x 16 Ga.
(Superseded to 819131016)

$6.49

$

In Stock, Qty 5

0

32

Husqvarna 532137150

Spring, Compression Inf Hgt

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532171359

Pin, Cotter 3/32 x 1/2
(Superseded to 876020308)

$

$

Not available

34

Husqvarna 532171353

Rod, Adj Lift
(Superseded to 532137167)

$7.49

$

In Stock, only 2 left!

0

35

Husqvarna 532138057

Knob, Inf 3/8-16 Unc

$8.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532155097

Pointer, Height Indicator

$

$

Not available

39

Husqvarna 532123935

Plug, Hole

$5.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532171210

Screw 5/16-18 x 1
(Superseded to 817060516)

$6.49

$

Usually ships in 3-10 days

0

41

Husqvarna 873540600

Nut, Crownlock 3/8-24

$4.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532171209

Washer 11/32 x 1-1/2 x 10 Ga.
(Superseded to 819112410)

$6.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532123934

Scale, Indicator Height

$

$

Not available

70

Husqvarna 532171178

Nut Hex Flange Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

72

Husqvarna 532110452

Nut Push Phos & Oil

$3.99

$

Usually ships in 3-10 days

0

73

Husqvarna 532171357

Nut Hex Jam 3/8-16 Unc
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0
