GTH 2448 T (960430009-01) - Husqvarna 48" Garden Tractor (2006-06) Mower Lift Parts Diagram

48" Garden Tractor

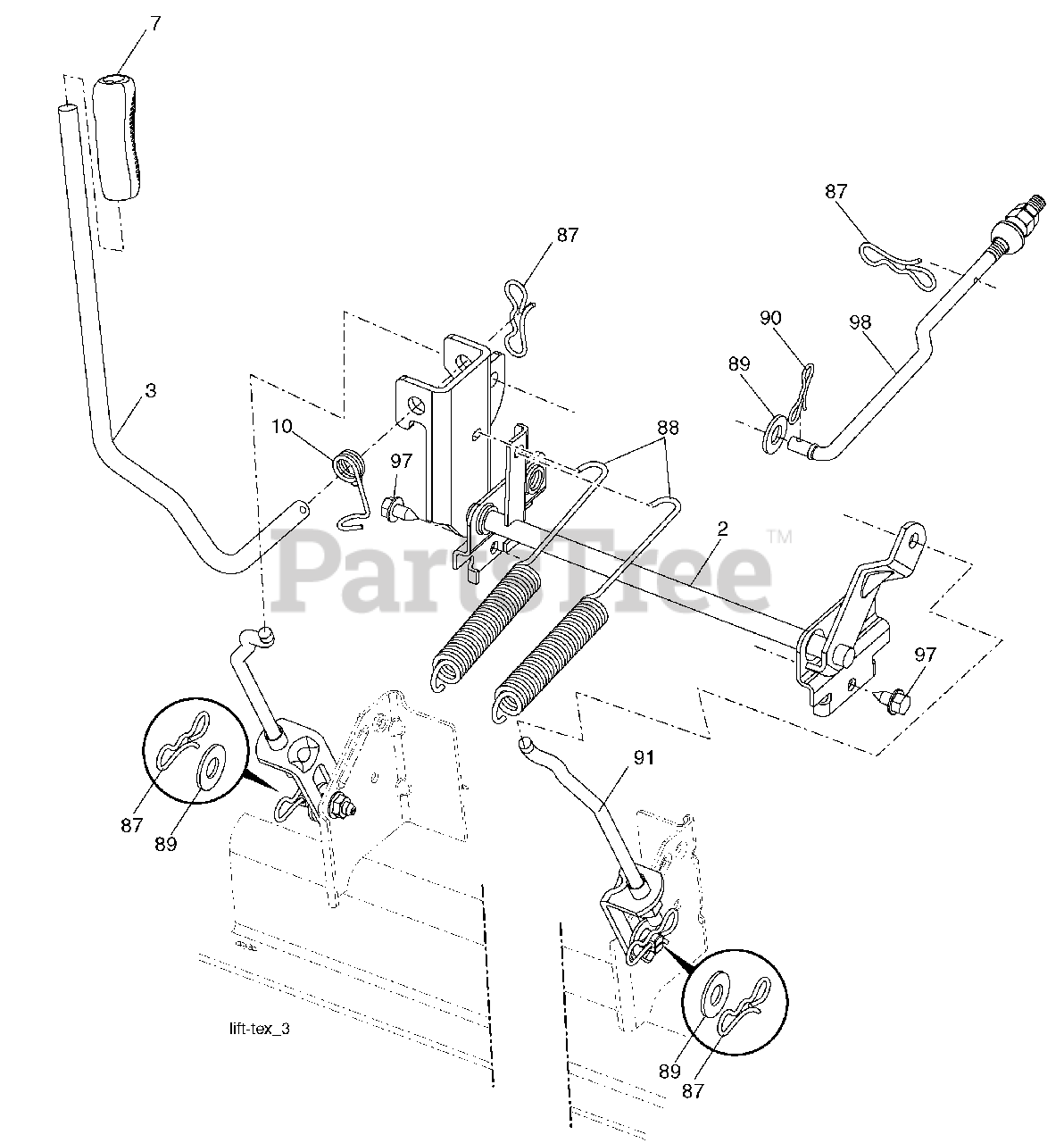

Mower Lift Parts Diagram

  • Title

2

Husqvarna 532195223

Shaft Asm., Lift
(Superseded to 532422027)

$80.99

$

In Stock, only 1 left!

0

3

Husqvarna 532195230

Lever Asm., Lift Rh

$54.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532196492

Grip, Lever
(Superseded to 532411555)

$9.49

$

In Stock, only 1 left!

0

10

Husqvarna 532196314

Spring Torsion

$6.49

$

In Stock, only 2 left!

0

87

Husqvarna 532194209

Pin Cotter 7/16 Bow Tie Lock

$3.99

$

In Stock, only 1 left!

0

88

Husqvarna 532195304

Spring Lift Assist
(Superseded to 532195301)

$13.99

$

Usually ships in 3-10 days

0

89

Husqvarna 819191912

Washer Clear Zinc

$6.49

$

In Stock, Qty 20+

0

90

Husqvarna 532194208

Pin Cotter 5/16 Bow Tie Lock

$3.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532197984

Link Lift Susp Mower Rear
(Superseded to 589464801)

$12.99

$

Usually ships in 3-10 days

0

92

Husqvarna 532195174

Bracket Connect Link Lift
(Superseded to 532195181)

$

$

Not available

95

Husqvarna 532195171

Bushing Alignment Link Lift
(Superseded to 532195181)

$

$

Not available

97

Husqvarna 817060612

Screw 3/8-16 x .75 Smgml Tap/R.Z
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

98

Husqvarna 532195264

Link Lift Susp. Front Mower
(Superseded to 581506902)

$11.99

$

In Stock, Qty 15

0

99

Husqvarna 532195263

Bushing Spherical Susp Front

$

$

Not available

100

Husqvarna 873360700

Nut Hex Jam ASF 7/16-20 unf
(Superseded to 873610700)

$7.49

$

In Stock, only 4 left!

0
