GTH 2448 T (960430009-00) - Husqvarna 48" Garden Tractor (2005-12) MOWER LIFT / DECK LIFT Parts Diagram

48" Garden Tractor

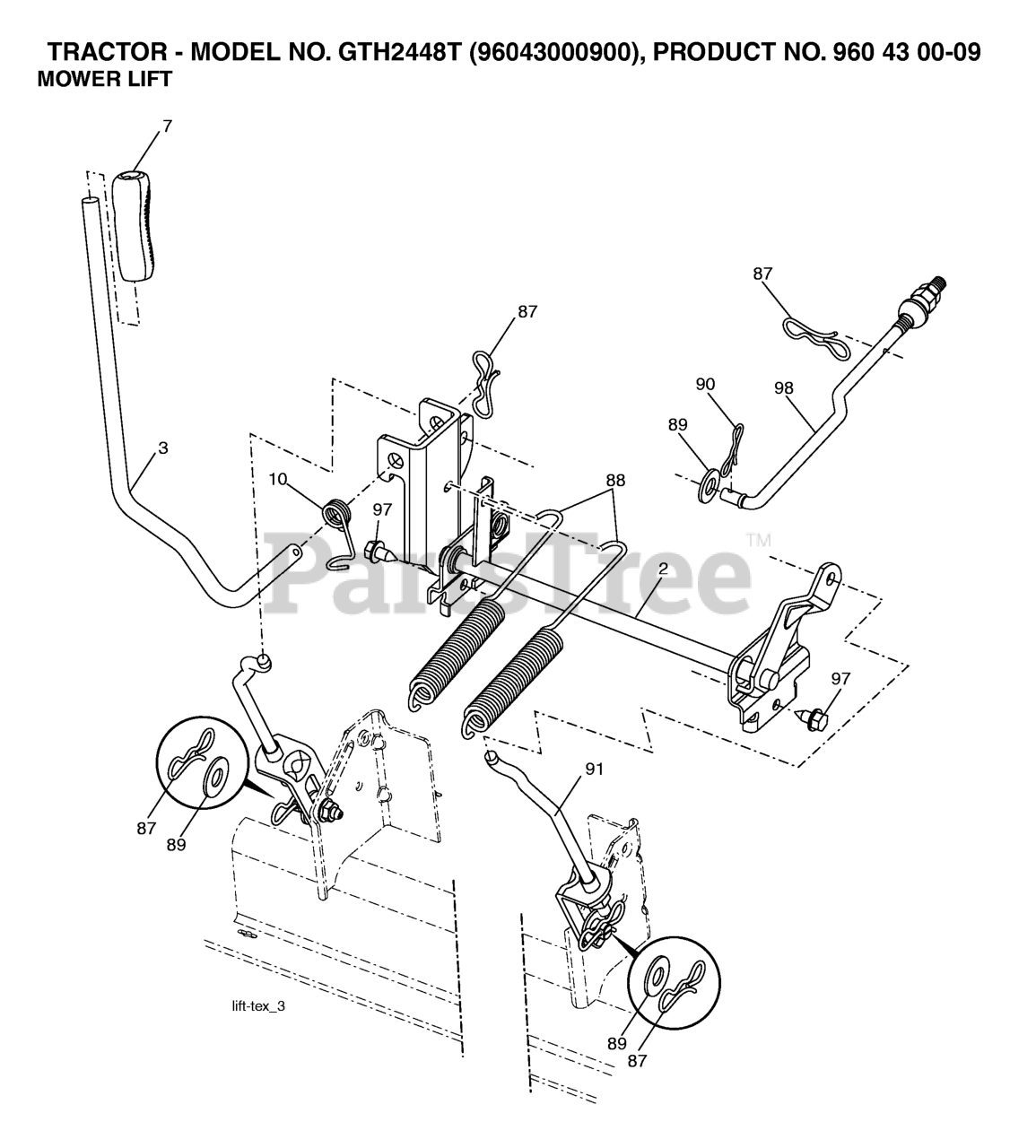

MOWER LIFT / DECK LIFT Parts Diagram

  • Title
98

Husqvarna 532195264

LINK.ASM.SUSP.FRONT.MWR.10.5
(Superseded to 581506902)

$11.99

$

In Stock, Qty 15

0

90

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532196492

GRIP.LEVER.5625.ID
(Superseded to 532411555)

$9.49

$

In Stock, only 1 left!

0

10

Husqvarna 532196314

SPRING.TORSION.LIFT.HANDLE

$6.49

$

In Stock, only 2 left!

0

97

Husqvarna 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

2

Husqvarna 532195223

SHAFT.ASM.LIFT.CROSS.H
(Superseded to 532422027)

$80.99

$

In Stock, only 1 left!

0

100

Husqvarna 873360700

NUT **
(Superseded to 873610700)

$7.49

$

In Stock, only 4 left!

0

89

Husqvarna 819191912

WASHER.CLEAR.ZINC

$6.49

$

In Stock, Qty 20+

0

91

Husqvarna 532197984

LINK.LIFT.ASM.REAR.GT.
(Superseded to 589464801)

$12.99

$

Usually ships in 3-10 days

0

88

Husqvarna 532195304

SPRING.LIFT.ASSIST.GT2
(Superseded to 532195301)

$13.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532195230

LEVER.LIFT.HANDLE.GT

$54.99

$

Usually ships in 3-10 days

0

87

Husqvarna 532194209

PIN.COTTER.7/16.BOW TI.

$3.99

$

In Stock, only 1 left!

0
