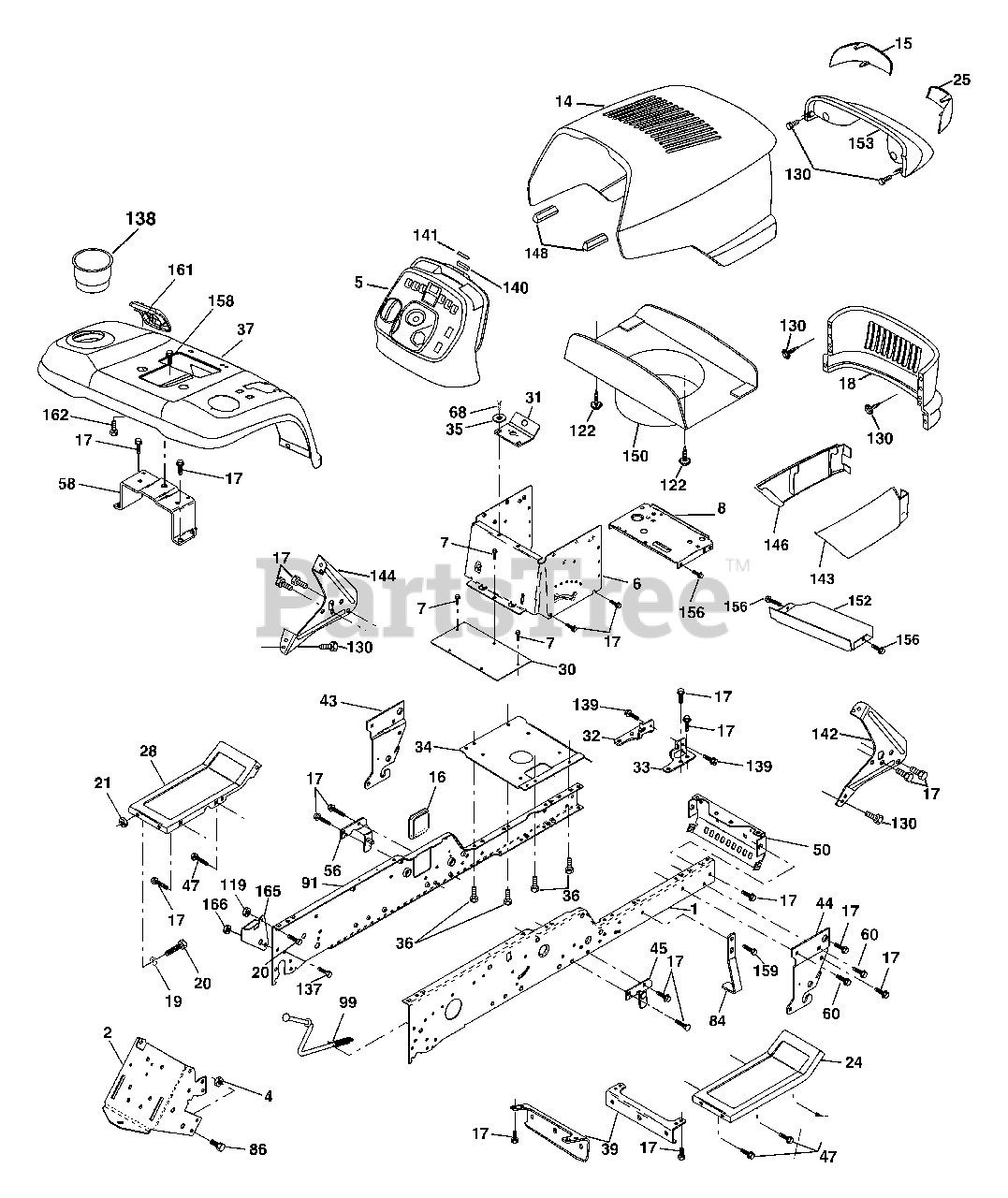

GTH 2350 (954568540-A) - Husqvarna 50" Garden Tractor (2002-07) Chassis And Enclosures Parts Diagram

50" Garden Tractor

Chassis And Enclosures Parts Diagram

  • Title

1

Husqvarna 532180372

Rail, Frame RH
(Superseded to 532180375)

$56.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532175282

Drawbar, Gt

$

$

Not available

4

Husqvarna 873800700

Nut, Lock Hex 7/16 Unc

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532177582

Dash, Plastic
(Superseded to 583716201)

$

$

Not available

6

Husqvarna 532157882

Dash, 1PCS, Lower

$

$

Not available

7

Husqvarna 817720408

Screw, Thd Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532145166

Support, Battery

$

$

Not available

14

Husqvarna 532177583

Hood Asm., Pnt
(Superseded to 532194976)

$121.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532161841

Lens LH
(Superseded to 583125201)

$

$

Not available

16

Husqvarna 532121794

Cover, Access

$

$

Not available

17

Husqvarna 817060612

Screw, 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

18

Husqvarna 532177584

Grille
(Superseded to 532182873)

$193.99

$

Usually ships in 3-10 days

0

19

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

20

Husqvarna 874760616

Bolt, Fin Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 873680600

Nut, Crownlock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532181058

Footrest, RH
(Superseded to 532442579)

$

$

Not available

25

Husqvarna 532161842

Lens RH
(Superseded to 583125201)

$

$

Not available

28

Husqvarna 532181057

Footrest, LH
(Superseded to 532182507)

$43.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532145052

Saddle

$

$

Not available

31

Husqvarna 532161419

Bracket Supt 1-pc Vgt Steering

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532161327

Bracket, Frame Pivot Lh

$7.49

$

In Stock, only 4 left!

0

33

Husqvarna 532161326

Bracket, Frame Pivot Rh

$6.49

$

In Stock, only 1 left!

0

34

Husqvarna 532177018

Plate Asm Engine Chassis

$37.99

$

Usually ships in 3-10 days

0

35

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

36

Husqvarna 817060512

Screw 5/16-18 x 3/4
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532181720

Fender, Pnt.
(Superseded to 532196023)

$

$

Not available

39

Husqvarna 532175278

Bracket, Axle Front

$

$

Not available

43

Husqvarna 532136939

Bracket, Spnsn Front Lh

$

$

Not available

44

Husqvarna 532136940

Bracket, Spnsn Front Rh

$

$

Not available

45

Husqvarna 532154913

Bracket Asm., Susp Chassis Rh

$

$

Not available

47

Husqvarna 817490608

Screw Thdrol 3/8-16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532175476

Bracket, Chassis Front

$

$

Not available

56

Husqvarna 532154914

Bracket Asm., Susp Chassis Lh

$

$

Not available

58

Husqvarna 532175315

Bracket Asm., Fender
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

60

Husqvarna 817060620

Screw 3/8-16 x 1-1/4

$7.49

$

In Stock, Qty 11

0

68

Husqvarna 817490508

Screw, 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

84

Husqvarna 532142992

Stop Over Center

$6.49

$

Usually ships in 3-10 days

0

86

Husqvarna 874760716

Bolt, Fin Hex 7/16-14 Unc x 1
(Superseded to 874780716)

$4.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532180366

Rail, Frame Lh

$

$

Not available

99

Husqvarna 532177143

Rod Asm. Bypass

$24.99

$

Usually ships in 3-10 days

0

119

Husqvarna 873680600

Nut Crownlock 3/8-16 Unc

$3.99

$

Usually ships in 3-10 days

0

122

Husqvarna 532161464

Screw Hex WSHD 8-18 x 7/8

$

$

Not available

130

Husqvarna 532164863

Screw Hw Hd Hi-Lo #13-16 x 3/4
(Superseded to 532189747)

$17.99

$

Usually ships in 3-10 days

0

137

Husqvarna 874780716

Bolt Fin Hex 7/16-14 x 1 Gr. 5

$4.99

$

Usually ships in 3-10 days

0

138

Husqvarna 532181798

Cupholder
(Superseded to 583710501)

$

$

Not available

139

Husqvarna 532171873

Bolt Shoulder 5/16-18

$5.99

$

Usually ships in 3-10 days

0

140

Husqvarna 532163806

Magnet Stealth

$

$

Not available

141

Husqvarna 532163805

Striker Plate

$

$

Not available

142

Husqvarna 532161897

Bracket Dash Stealth RH

$7.49

$

Usually ships in 3-10 days

0

143

Husqvarna 532177586

Skirt Grille RH

$43.99

$

In Stock, only 2 left!

0

144

Husqvarna 532161900

Bracket Dash Stealth LH

$7.49

$

Usually ships in 3-10 days

0

146

Husqvarna 532177587

Skirt Grille LH

$

$

Not available

148

Husqvarna 532164655

Extrusion Bumper

$8.99

$

Usually ships in 3-10 days

0

150

Husqvarna 532161237

Duct Heat Hood
(Superseded to 532190309)

$45.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532177956

Shield, Browning

$

$

Not available

153

Husqvarna 532179765

Light Box Asm w/Lens

$

$

Not available

156

Husqvarna 817000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, only 2 left!

0

158

Husqvarna 817670608

Screw 3/8-16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

159

Husqvarna 817000612

Screw Hex Wsh Thdrol 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

161

Husqvarna 532181787

Consol Fuel Window

$

$

Not available

162

Husqvarna 532142432

Screw Hex Wsh Hi-Lo 1/4-1/2 Unc

$6.49

$

Usually ships in 3-10 days

0

165

Husqvarna 532182254

Bracket Support Fuel Tank

$

$

Currently unavailable

166

Husqvarna 873680700

Nut Crownlock 7/16-14

$2.99

$

Usually ships in 3-10 days

0
