GTH 2254 XP (960230002-01) - Husqvarna 54" Garden Tractor (2005-06) Electrical Parts Diagram

54" Garden Tractor

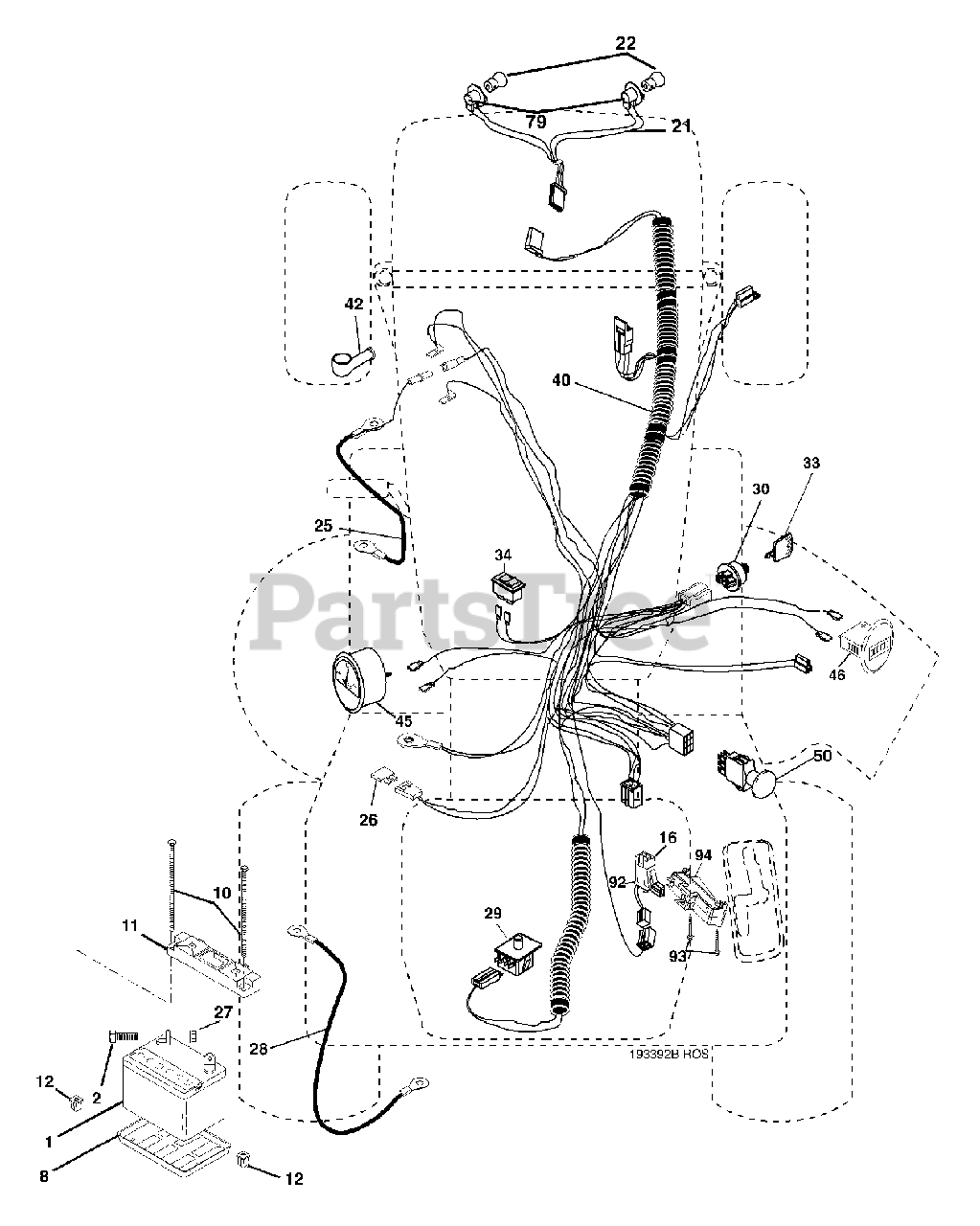

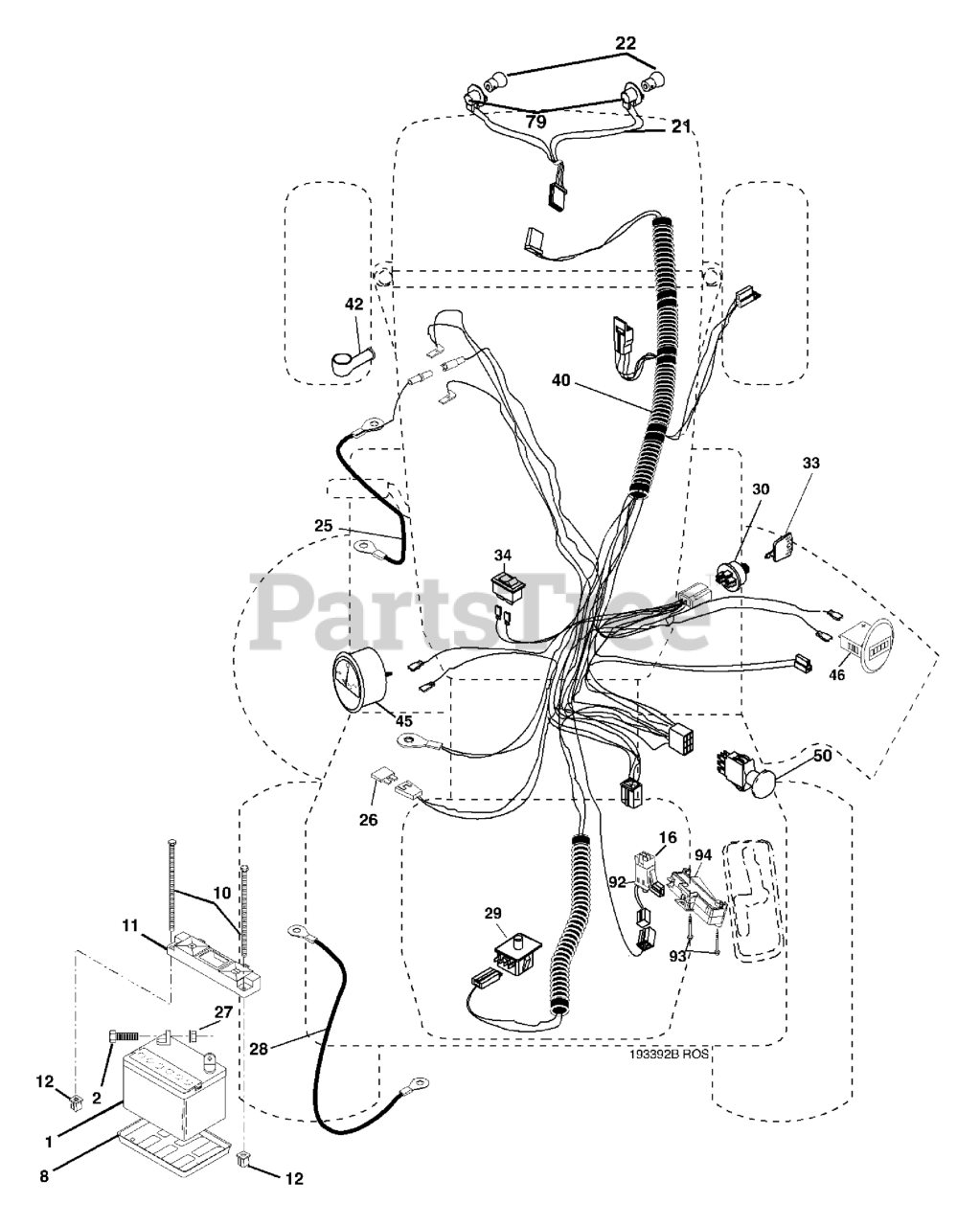

Electrical Parts Diagram

  • Title
1

Husqvarna 532144927

Battery
(Superseded to 532125603)

$194.99

$

In Stock, only 2 left!

0

2

Husqvarna 874760412

Bolt Hex Head 1/4-20 x 3/4

$7.49

$

In Stock, only 1 left!

0

8

Husqvarna 532124886

Tray, Battery
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532145211

Bolt, Battery Front 1/4-20 x 7.5 Zinc
(Superseded to 532150177)

$

$

Not available

11

Husqvarna 532150109

Holddown Battery Front Mount

$

$

Not available

12

Husqvarna 532145769

Nut, Push Nylon 1.4" Battery Front
(Superseded to 532150177)

$

$

Not available

16

Husqvarna 532176138

Switch Interlock Push-In

$22.99

$

In Stock, Qty 5

0

21

Husqvarna 532175688

Harness Socket Light w/4152J

$44.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532004152

Bulb Light

$4.99

$

Usually ships in 3-10 days

0

$24.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 873510400

Nut Keps Hex 1/4-20
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

28

Husqvarna 532170697

Cable Bolt Ground

$24.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532192749

Switch, Seat

$21.99

$

In Stock, Qty 14

0

30

Husqvarna 532193350

Switch, Ign

$22.99

$

Usually ships in 3-10 days

0

$6.99

$

In Stock, Qty 7

0

34

Husqvarna 532110712

Switch Light/Reset B/B/Red

$9.49

$

In Stock, only 2 left!

0

40

Husqvarna 532193392

Harness Ign.

$109.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532154336

Cover, Terminal Red

$8.99

$

In Stock, only 2 left!

0

45

$78.99

$

Usually ships in 3-10 days

0

46

$122.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532174651

Switch, PTO
(Superseded to 582107601)

$28.99

$

In Stock, Qty 8

0

79

Husqvarna 532175242

Bulbholder Asm

$18.99

$

Usually ships in 3-10 days

0

92

Husqvarna 532193465

Harness Pigtail Reverse Switch

$15.99

$

Usually ships in 3-10 days

0

93

Husqvarna 532192540

Screw 10-14 x 2.0

$4.99

$

Usually ships in 3-10 days

0

94

Husqvarna 532191834

Modual Reverse ROS

$37.99

$

Usually ships in 3-10 days

0
