GTH 2254 XP (954571229-B) - Husqvarna 54" Garden Tractor (2004-08) Mower Deck Parts Diagram

54" Garden Tractor

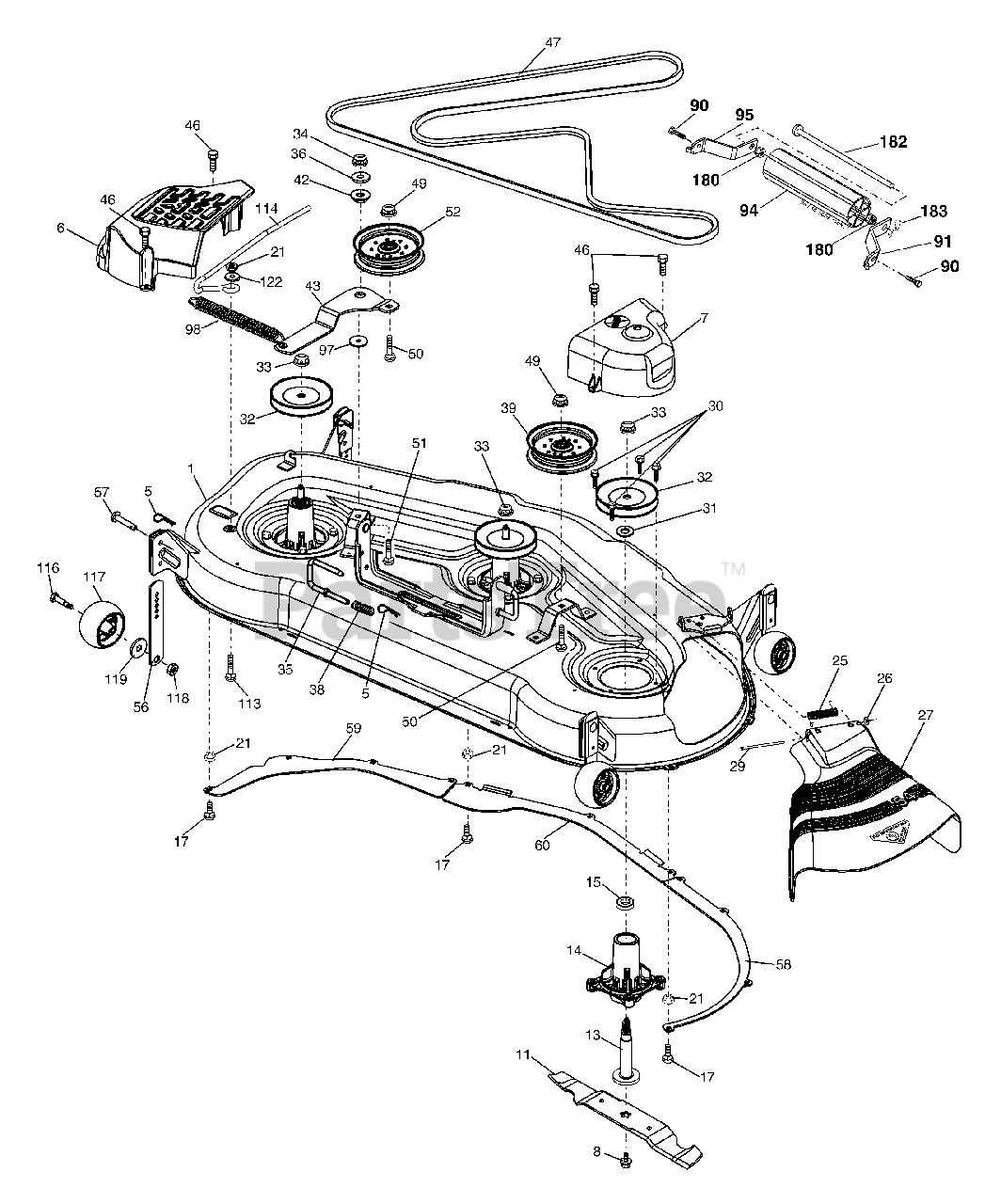

Mower Deck Parts Diagram

  • Title

1

Husqvarna 532188920

Deck Weldment Mower
(Superseded to 532196498)

$

$

Not available

5

Husqvarna 532124670

Retainer Spring

$

$

Not available

6

Husqvarna 532187297

Cover Mandrel LH

$37.99

$

In Stock, only 1 left!

0

7

Husqvarna 532188187

Cover Mandrel RH

$37.99

$

In Stock, only 1 left!

0

8

Husqvarna 532174365

Bolt 7/16 Asm. Blade
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532187254

Blade Standard
(Superseded to 532187255)

$22.99

$

In Stock, Qty 20+

0

13

Husqvarna 532187291

Shaft Asm. w/Lower Bearing

$28.99

$

In Stock, Qty 10

0

14

Husqvarna 532187281

Mandrel Housing
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

15

Husqvarna 532110485

Bearing, Ball, Mandrel

$13.99

$

In Stock, Qty 14

0

17

Husqvarna 872110505

Bolt Carr. 5/16-18 x 5/8
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 873680500

Nut, Crownlock 5/16-18 unc
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532178102

Spring Torsion
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

26

Husqvarna 532110452

Nut, Push

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532188938

Deflector Shield
(Superseded to 532187257)

$80.99

$

In Stock, Qty 8

0

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga.

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532131491

Rod, Hinge
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Husqvarna 532173984

Screw Thd Roll
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 532187690

Washer, Spacer Mower Vented

$4.99

$

In Stock, Qty 8

0

32

Husqvarna 532173436

Pulley, Mandrel

$17.99

$

In Stock, Qty 20+

0

33

Husqvarna 532178342

Nut, Flg. Top Lock Cntr. 9/16
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

34

Husqvarna 873680600

Nut

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532188635

Pin Suspension Rear

$26.99

$

In Stock, only 2 left!

0

36

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 532188657

Spring Compression

$6.49

$

In Stock, only 2 left!

0

39

Husqvarna 532187284

Pulley, Idler, Stationary

$56.99

$

In Stock, Qty 6

0

41

Husqvarna 532187557

Bushing Relief Tension

$9.49

$

In Stock, only 1 left!

0

42

Husqvarna 532122052

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

43

Husqvarna 532187278

Arm, Idler
(Superseded to 532196216)

$157.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532137729

Screw, Thdroll. 1/4-20 x 5/8

$4.99

$

In Stock, Qty 19

0

47

Husqvarna 532191273

V-Belt, Mower, Secondary
(Superseded to 584451901)

$91.99

$

In Stock, only 3 left!

0

49

Husqvarna 873900600

Nut, Lock Flg. 3/8-16 unc
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

50

Husqvarna 872110616

Bolt, Carr. 3/8-16 x 2

$6.49

$

Usually ships in 3-10 days

0

51

Husqvarna 872110610

Bolt 3/8-16 x 1-1/4 Gr. 5
(Superseded to 872140614)

$4.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532188460

Pulley Idler clutching

$

$

Not available

56

Husqvarna 532155986

Bar Pnt Adj.

$20.99

$

In Stock, Qty 10

0

57

Husqvarna 532156941

Pin Head Rivet

$

$

Not available

58

Husqvarna 532187342

Baffle Right

$12.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532187344

Baffle Left

$

$

Not available

60

Husqvarna 532187607

Baffle Center

$22.99

$

In Stock, only 2 left!

0

90

Husqvarna 874760516

Bolt 5/16-18 x 1
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

91

Husqvarna 532180535

Bracket Asm N Roller RH

$

$

Not available

94

Husqvarna 532176066

Roller Nose 48"

$13.99

$

In Stock, Qty 20+

0

95

Husqvarna 532180534

Bracket N Roller LH

$4.99

$

Usually ships in 3-10 days

0

97

Husqvarna 819133210

Washer Hardened
(Superseded to 532413524)

$

$

Not available

98

Husqvarna 532187282

Spring Clutch Drive

$

$

Not available

101

Husqvarna 532187298

Cover Mulching

$

$

Not available

102

Husqvarna 871081010

Screw 10-24 x 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

103

Husqvarna 810071000

Washer Lock

$4.99

$

In Stock, Qty 11

0

104

Husqvarna 819061216

Washer

$4.99

$

Usually ships in 3-10 days

0

105

Husqvarna 532125004

Nut Weld
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

113

Husqvarna 872110508

Bolt Rdhd Sqnk 5/16-18 unc x 3/4

$4.99

$

Usually ships in 3-10 days

0

114

Husqvarna 532187556

Rod Tension Relief

$24.99

$

In Stock, only 1 left!

0

116

Husqvarna 532184219

Bolt, Shoulder
(Superseded to 532193406)

$5.99

$

In Stock, Qty 20+

0

117

Husqvarna 532133957

Gauge Wheel

$13.99

$

In Stock, Qty 20+

0

118

Husqvarna 873930600

Nut, Centerlock 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Husqvarna 819121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

122

Husqvarna 532187557

Bushing Tension Relief

$9.49

$

In Stock, only 1 left!

0

180

Husqvarna 873800500

Nut 5/16-18

$3.99

$

Usually ships in 3-10 days

0

182

Husqvarna 532179127

Rod Roller Nose Narrow
(Superseded to 594092501)

$6.99

$

In Stock, Qty 20+

0

183

Husqvarna 532163552

Retainer Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

Husqvarna 532187292

Mandrel Asm. Service
(Superseded to 587820301)

Note: (Includes Key Nos. 13-15 and 33)

$56.99

$

In Stock, Qty 18

0

Husqvarna 532188377

Replacement Mower, Complete
(Superseded to 532196099)

Note: (Std. deck order separately nose roller components key nos. 90, 91, 94, 95, 180, 182, 183)

$1092.99

$

Usually ships in 3-10 days

0
