GTH 2250 (954567093) - Husqvarna 50" Garden Tractor (2001-04) ENGINE 2 Parts Diagram

50" Garden Tractor

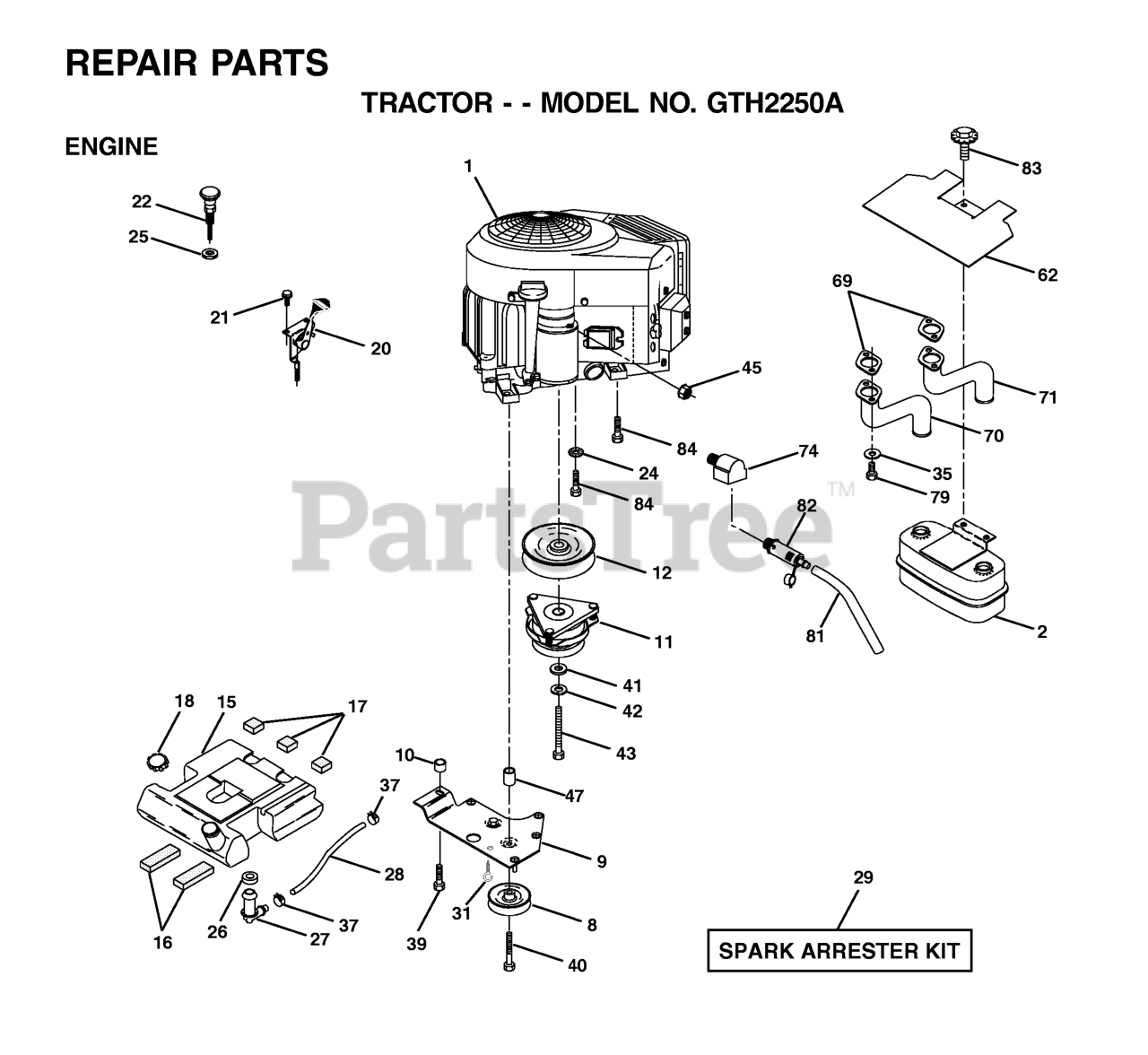

ENGINE 2 Parts Diagram

  • Title

21

Husqvarna 532164863

SCREW
(Superseded to 532189747)

$17.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532007834

FUEL LINE
(Superseded to 532008542)

$

$

Not available

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

69

Husqvarna 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 3 left!

0

18

Husqvarna 532161493

CAP, FUEL GUAGE

$

$

Not available

40

Husqvarna 817490664

Screw TT 3/8-16 x 4 unc

$

$

Not available

24

Husqvarna 811050600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

16

Husqvarna 532109227

PAD IDLER TI

$4.99

$

In Stock, Qty 20+

0

83

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

39

Husqvarna 817490636

SCREW TT 3/8-16X2-1/4 UNC
(Superseded to 596564004)

$2.49

$

In Stock, Qty 6

0

12

Husqvarna 532143996

PULLEY ENG VGT ELECT CLUTCH

$53.99

$

In Stock, only 1 left!

0

25

Husqvarna 873920600

Nut Keps 3/8 - 24 UNF

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532178385

THROTTLE CABLE
(Superseded to 532175437)

$44.99

$

In Stock, only 1 left!

0

26

Husqvarna 532003645

BUSHING OUTLET T

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532177748

KEEPER ASM BELT ENGINE

$

$

Not available

17

Husqvarna 532106082

PAD-SPACER LT

$

$

Not available

35

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

70

Husqvarna 532176069

TUBE.EXHAUST.B&S.VGT.LH

$51.99

$

Usually ships in 3-10 days

0

82

Husqvarna 532148315

PLUG, OIL DRAIN EASY
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

79

Husqvarna 871070512

SCREW
(Superseded to 532192334)

$

$

Not available

62

Husqvarna 532146629

RP SHIELD HEAT MUFFLER
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532151346

FUEL TANK 3.5G

$96.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

2

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532126197

WASHER

$8.99

$

In Stock, only 3 left!

0

84

Husqvarna 817060624

SCREW 3/8-16 X 1-1/2

$7.49

$

In Stock, only 1 left!

0

47

Husqvarna 532175288

BUSHING

$

$

Not available

31

Husqvarna 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

8

Husqvarna 532121361

RP.IDLER GROOVED
(Superseded to 532139123)

$37.99

$

In Stock, only 1 left!

0

74

Husqvarna 532162295

ELBOW STREET BRASS

$34.99

$

In Stock, only 1 left!

0

27

Husqvarna 532139277

STEM FUEL TANK

$8.99

$

In Stock, Qty 7

0

22

Husqvarna 532178639

REPL BY 532 1754-40
(Superseded to 532175440)

$34.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532176070

TUBE.EXHAUST.B&S.VGT.RH

$78.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532175287

BUSHING

$

$

Not available

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0
