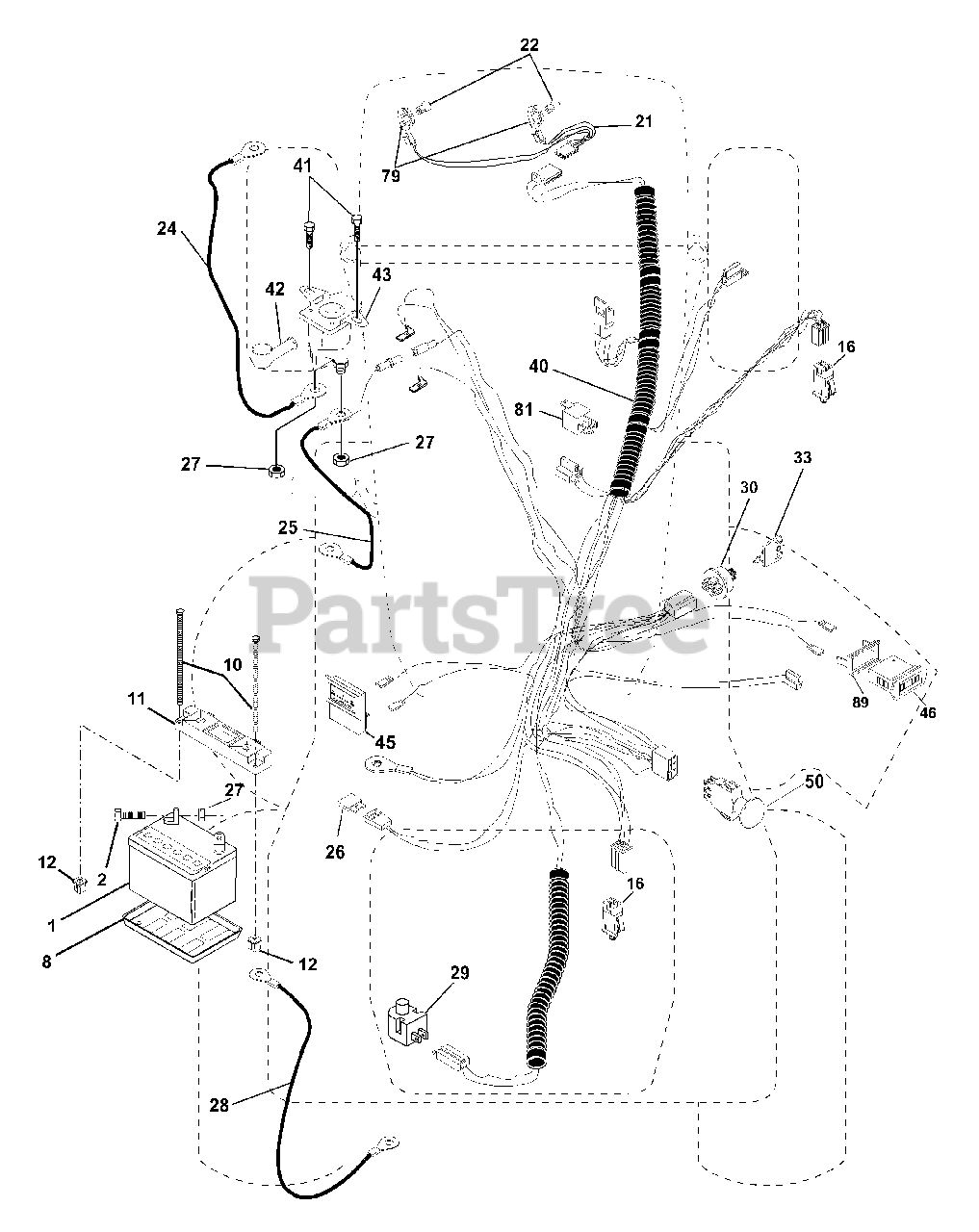

GTH 2250 (954567093-A) - Husqvarna 50" Garden Tractor (2000-11) Electrical Parts Diagram

50" Garden Tractor

Electrical Parts Diagram

  • Title
1

Husqvarna 532144926

Battery
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

2

Husqvarna 874760412

Bolt Hex Head 1/4-20 x 3/4

$7.49

$

In Stock, only 1 left!

0

8

Husqvarna 532124886

Tray, Battery
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532145211

Bolt, Battery Front 1/4-20 x 7.5 Zinc
(Superseded to 532150177)

$

$

Not available

11

Husqvarna 532150109

Holddown Battery Front Mount

$

$

Not available

12

Husqvarna 532145769

Nut, Push Nylon 1.4" Battery Front
(Superseded to 532150177)

$

$

Not available

16

Husqvarna 532153664

Switch Interlock Push-In
(Superseded to 532176138)

$22.99

$

In Stock, Qty 9

0

21

Husqvarna 532166184

Harness Socket Light w/4152J

$

$

Not available

22

Husqvarna 532004152

Bulb Light

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532004206

Cable, Battery
(Superseded to 583750601)

$

$

Not available

25

Husqvarna 532146149

Cable, Battery

$10.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 873510400

Nut Keps Hex 1/4-20
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

28

Husqvarna 532170697

Cable,Ground

$24.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532160784

Switch, Plunger Normal Op Olive

$20.99

$

In Stock, only 1 left!

0

30

Husqvarna 532175566

Switch, Ign

$26.99

$

In Stock, Qty 8

0

$6.99

$

In Stock, Qty 9

0

40

Husqvarna 532170238

Harness Ign.

$194.99

$

Usually ships in 3-10 days

0

41

Husqvarna 817720408

Screw 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

Cover, Terminal Red
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Husqvarna 532175141

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, only 3 left!

0

45

$20.99

$

In Stock, only 1 left!

0

46

Husqvarna 532169635

Hourmeter Snap-In
(Superseded to 532169642)

$103.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532174651

Switch, PTO
(Superseded to 582107601)

$28.99

$

In Stock, Qty 8

0

79

Husqvarna 532163996

Bulbholder Asm
(Superseded to 532175688)

$44.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532109748

Relay Asm.

$30.99

$

In Stock, only 1 left!

0

89

Husqvarna 532169639

Bracket Snap-In Hourmeter

$6.49

$

Usually ships in 3-10 days

0
