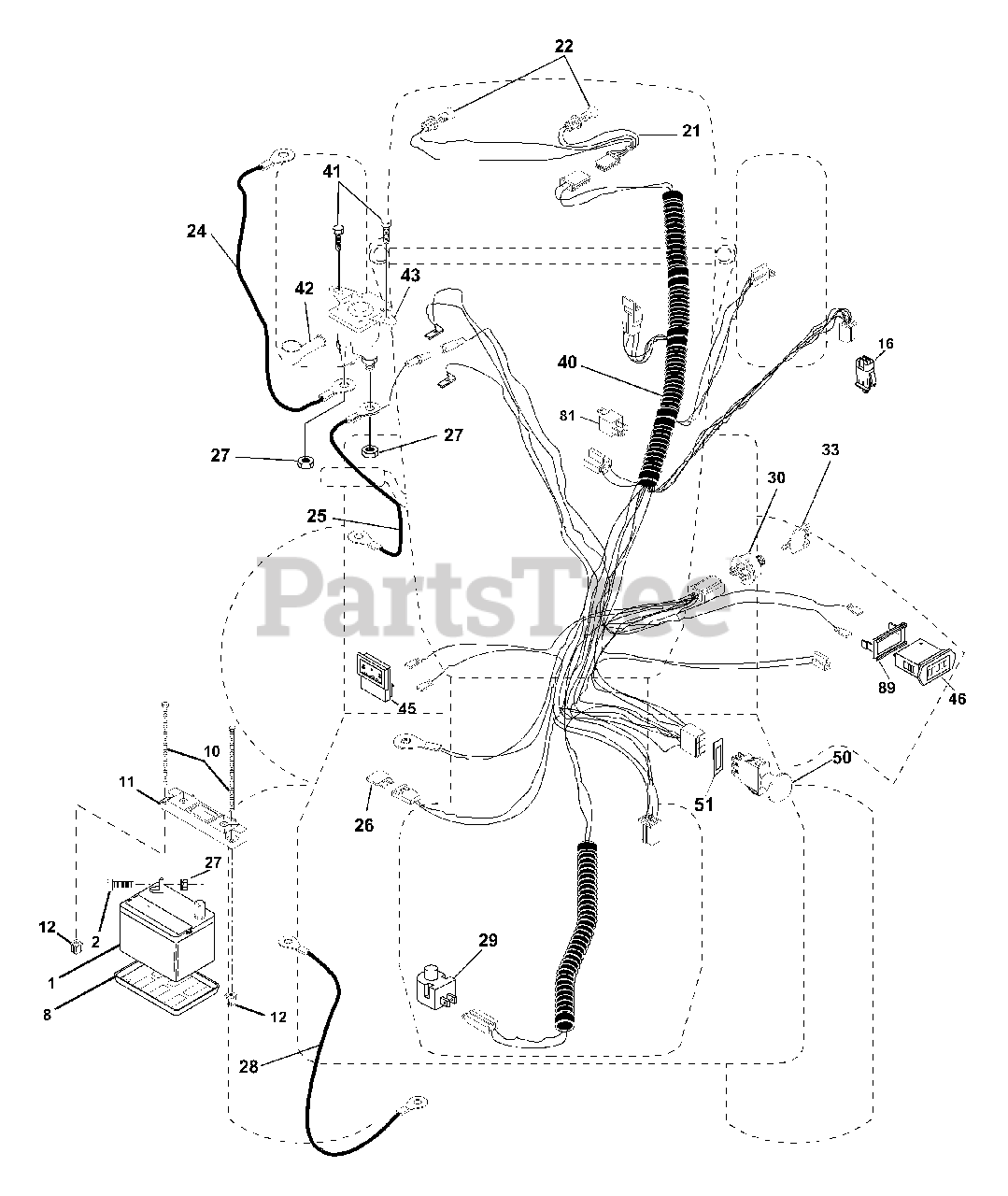

GTH 225 (954140103-A) - Husqvarna Garden Tractor (1999-10) Electrical Parts Diagram

Garden Tractor

Electrical Parts Diagram

  • Title
1

Husqvarna 532144927

Battery
(Superseded to 532125603)

$194.99

$

In Stock, only 1 left!

0

2

Husqvarna 532171017

Bolt Hex Head 1/4-20 x 3/4
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

8

Husqvarna 532124886

Tray, Battery
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532171327

Bolt, Btr Frt 1/4-20 x 7-1/2 Zinc
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

11

Husqvarna 532150109

Holddown Battery Front Mount

$

$

Not available

12

Husqvarna 532145769

Nut Push Nylon 1/4" Battery Frt.
(Superseded to 532150177)

$

$

Not available

16

Husqvarna 532153664

Switch Interlock Push-In
(Superseded to 532176138)

$22.99

$

In Stock, Qty 9

0

21

Husqvarna 532166182

Harness Socket Light w/4152J

$

$

Not available

22

Husqvarna 532004152

Bulb Light

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532004014

Cable, Starter

$

$

Not available

25

Husqvarna 532146686

Cable, Battery

$10.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532171018

Nut Keps Hex 1/4-20 UNC
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

28

Husqvarna 532170697

Cable, Ground

$24.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532160784

Switch, Plunger

$20.99

$

In Stock, only 1 left!

0

30

Husqvarna 532163968

Switch, Ign
(Superseded to 532175566)

$26.99

$

In Stock, Qty 8

0

$6.99

$

In Stock, Qty 9

0

40

Husqvarna 532166176

Harness Ign.

$

$

Currently unavailable

41

Husqvarna 532171323

Screw 1/4-20 x 1/2
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

Cover, Terminal Red
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Husqvarna 532145673

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, only 3 left!

0

45

Husqvarna 532122822

Ammeter Rectangular

$20.99

$

In Stock, only 1 left!

0

46

Husqvarna 532169635

Meter Hour Snap-In
(Superseded to 532169642)

$103.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532169417

Switch, PTO
(Superseded to 582107601)

$28.99

$

In Stock, Qty 8

0

51

Husqvarna 532140405

Ring Retainer PTO

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 532110143

Bulb, Light Pkg.

$

$

Not available

81

Husqvarna 532109748

Relay Asm.

$30.99

$

In Stock, only 1 left!

0

89

Husqvarna 532169639

Bracket Snap-In Hourmeter

$6.49

$

Usually ships in 3-10 days

0
