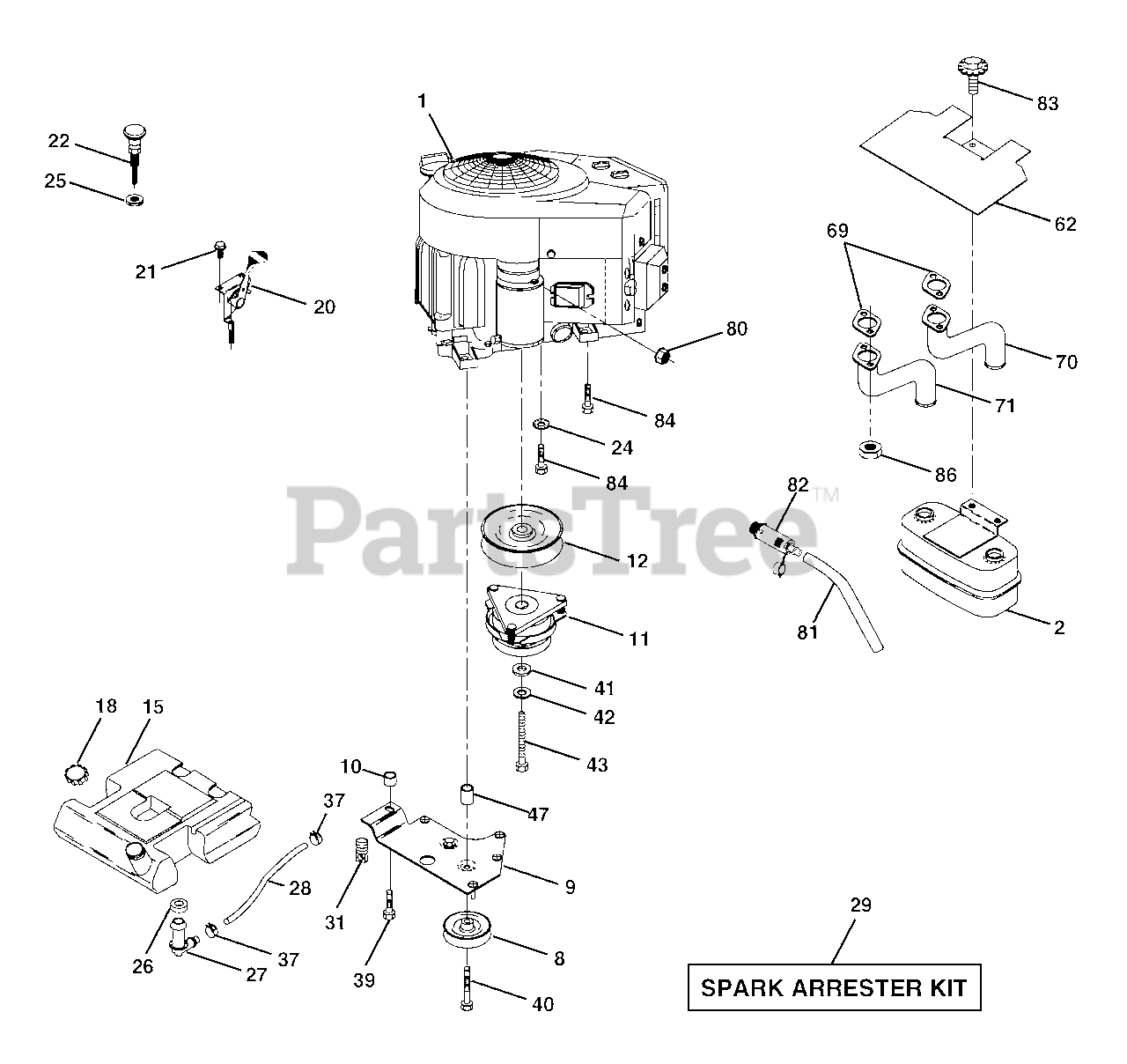

GTH 2248 XP (954567888-C) - Husqvarna 48" Garden Tractor (2003-07) Engine Parts Diagram

48" Garden Tractor

Engine Parts Diagram

  • Title

1

Engine Kawasaki, Model No. FH641V

Note: (Order parts from engine manufacturer)

$

$

Not available

2

Husqvarna 532149723

Muffl er Side

$74.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532121361

Pulley V-Idler
(Superseded to 532139123)

$37.99

$

In Stock, only 1 left!

0

9

Husqvarna 532177748

Keeper Asm. Belt Engine VGT

$

$

Not available

10

Husqvarna 532175287

Bushing

$

$

Not available

11

Husqvarna 532179335

Clutch Electric

$341.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532143996

Pulley Engine VGT Elect Clutch

$53.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532179115

Tank Fuel 5.0

$

$

Not available

18

Husqvarna 532181803

Cap Fuel
(Superseded to 532179124)

$37.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532178147

Control Throttle

$36.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532171875

Screw HWHD Hi-Lo #13-16 x 3/4
(Superseded to 532189747)

$17.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532178148

Control Choke
(Superseded to 532175441)

$

$

Not available

24

Husqvarna 811050600

Washer Ext Tooth 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 873920600

Nut Keps 3/8-24 Unf

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532003645

Bushing

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532139277

Stem Tank Fuel

$8.99

$

In Stock, Qty 5

0

28

Husqvarna 532007834

Fuel Line
(Superseded to 532008542)

$

$

Not available

29

Husqvarna 532137180

Spark Arrester Kit

$182.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

Clamp Hose

$7.49

$

In Stock, only 4 left!

0

39

Husqvarna 817490636

Screw TT 3/8-16 x 2-1/4 Unc
(Superseded to 596564004)

$2.49

$

In Stock, Qty 6

0

40

Husqvarna 817490664

Screw TT 3/8-16 x 4 Unc

$

$

Not available

41

Husqvarna 532126197

Washer 1-1/2 OD x 15/32 ID x .250

$8.99

$

In Stock, only 3 left!

0

42

Husqvarna 810040700

Washer Lock 7/16
(Superseded to 539990247)

$

$

Not available

43

Husqvarna 532179953

Bolt Hex 7/16-20 x 3.75 Ga 5
(Superseded to 501606601)

$4.99

$

In Stock, only 1 left!

0

47

Husqvarna 532175288

Bushing

$

$

Not available

62

Husqvarna 532176252

Shield Heat Muffl er

$

$

Not available

69

Gasket

Note: (Order from Engine Manufacturer)

$

$

Not available

70

Husqvarna 532175767

Tube Exhaust RH

$

$

Not available

71

Husqvarna 532175766

Tube Exhaust LH

$

$

Not available

80

Husqvarna 532163305

Nut Flange M8-1.25
(Superseded to 873030800)

$

$

Not available

81

Husqvarna 532148456

Tube Drain Oil Easy

$6.99

$

In Stock, Qty 5

0

82

Plug Oil Drain

Note: ((Order parts from engine manufacturer)

$

$

Not available

83

Husqvarna 532171877

Bolt 5/16-18unc x 1-3/4 W/Sems

$7.49

$

In Stock, only 2 left!

0

84

Husqvarna 817060624

Screw 3/8-16 x 1-1/2

$7.49

$

In Stock, only 1 left!

0

86

Husqvarna 532184362

Nut Hex Flange Toplock M8-1.25

$6.49

$

In Stock, only 3 left!

0
