GTH 2248 XP (954567888-B) - Husqvarna 48" Garden Tractor (2003-05) ENGINE Parts Diagram

48" Garden Tractor

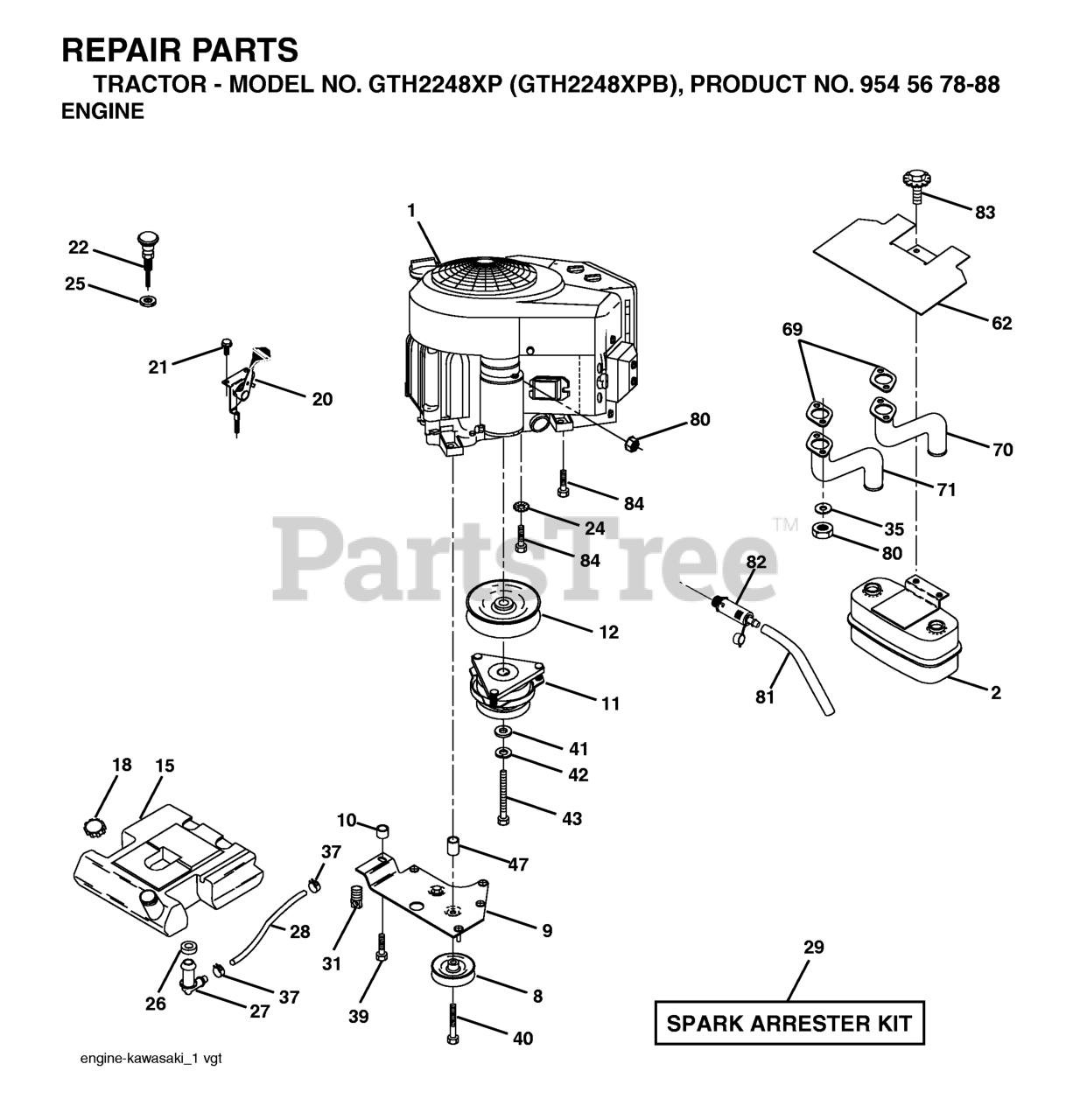

ENGINE Parts Diagram

  • Title
9

Husqvarna 532177748

KEEPER ASM BELT ENGINE

$

$

Not available

21

Husqvarna 532171875

SCREW
(Superseded to 532189747)

$17.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532181803

TANK CAP
(Superseded to 532179124)

$37.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532176252

HEAT SHIELD

$

$

Not available

71

Husqvarna 532175766

TUBE EXHAUST LH

$

$

Not available

25

Husqvarna 873920600

Nut Keps 3/8 - 24 UNF

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532178148

CHOKE CONTROL
(Superseded to 532175441)

$

$

Not available

10

$

$

Not available

28

Husqvarna 532007834

FUEL LINE
(Superseded to 532008542)

$

$

Not available

$8.99

$

In Stock, only 3 left!

0

80

Husqvarna 532163305

FLANGE NUT
(Superseded to 873030800)

$

$

Not available

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 5

0

43

Husqvarna 532179953

BOLT HEX 7/16-20 X 3.75 GR. 5
(Superseded to 501606601)

$4.99

$

In Stock, only 1 left!

0

20

Husqvarna 532178147

CONTROL.THROTTLE.COBRA.42"BLK.

$36.99

$

Usually ships in 3-10 days

0

83

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, only 2 left!

0

47

$

$

Not available

26

Husqvarna 532003645

BUSHING OUTLET T

$4.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

40

Husqvarna 817490664

Screw TT 3/8-16 x 4 unc

$

$

Not available

2

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532179115

TANK.FUEL.5.0 LEFT.FILL.YTGT

$

$

Not available

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

84

Husqvarna 817060624

SCREW 3/8-16 X 1-1/2

$7.49

$

In Stock, only 1 left!

0

11

Husqvarna 532179335

CLUTCH MZ ZTR GT.48/54"1.125"

$341.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532175767

TUBE.EXHAUST.KAWASAKI.RH

$

$

Not available

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

27

Husqvarna 532139277

STEM FUEL TANK

$8.99

$

In Stock, Qty 5

0

12

Husqvarna 532143996

PULLEY ENG VGT ELECT CLUTCH

$53.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532121361

RP.IDLER GROOVED
(Superseded to 532139123)

$37.99

$

In Stock, only 1 left!

0

24

Husqvarna 811050600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

39

Husqvarna 817490636

SCREW TT 3/8-16X2-1/4 UNC
(Superseded to 596564004)

$2.49

$

In Stock, Qty 6

0
