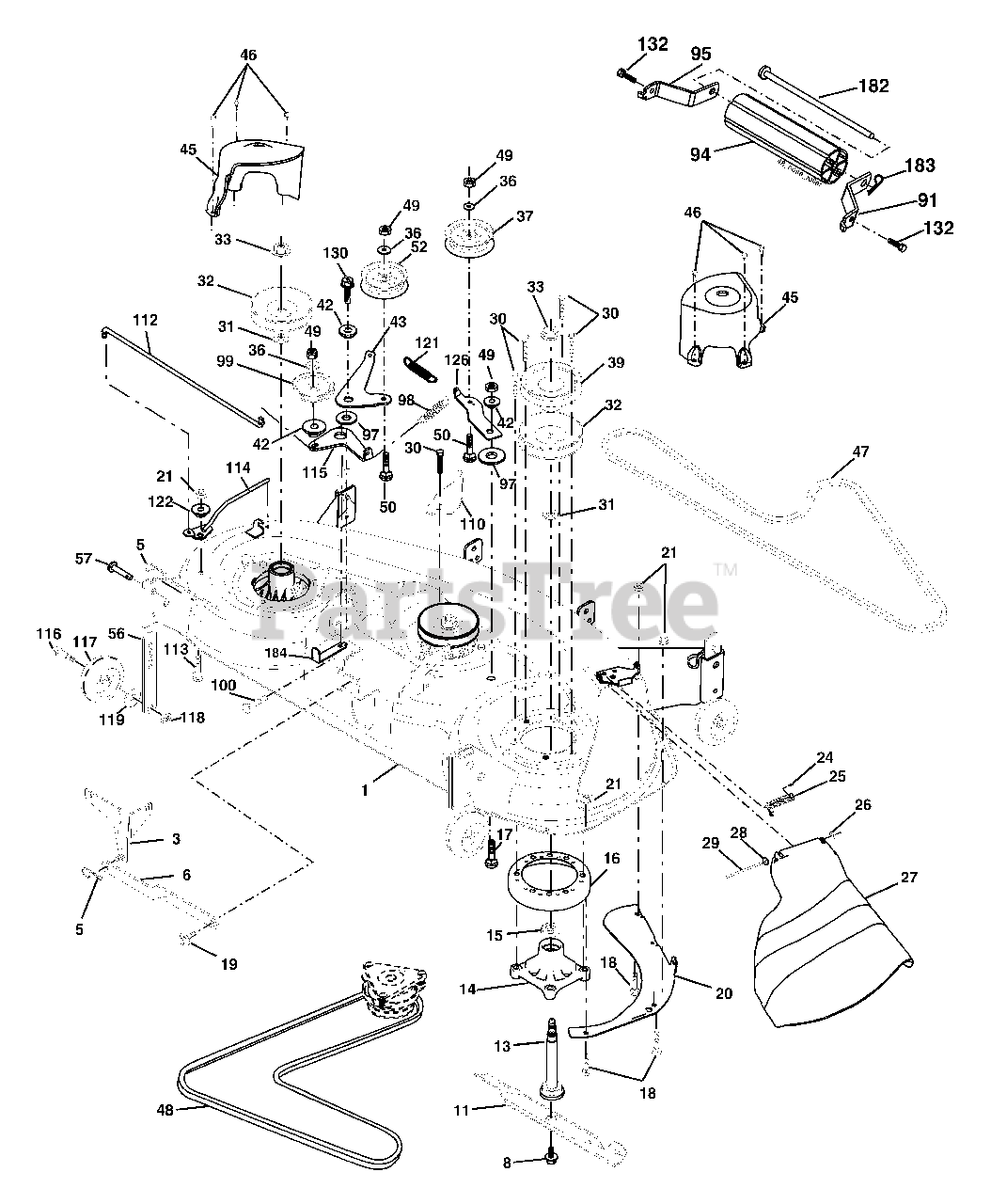

GTH 2248 XP (954567888-B) - Husqvarna 48" Garden Tractor (2002-10) Mower Deck Parts Diagram

48" Garden Tractor

Mower Deck Parts Diagram

  • Title

1

Husqvarna 532181848

Deck Weldment Mower 48
(Superseded to 532184233)

$

$

Not available

3

Husqvarna 532178915

Bracket Asm., Sway Bar

$

$

Not available

5

Husqvarna 532124670

Retainer Spring

$

$

Not available

6

Husqvarna 532178024

Sway Bar Deck

$8.99

$

In Stock, only 4 left!

0

8

Husqvarna 532174365

Bolt 7/16 Asm. Blade
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532173921

Blade, 48" Mulching

Note: (For mulching mowers only)

$22.99

$

In Stock, only 4 left!

0

11

Husqvarna 532180054

Blade, 48" Hi-Lift

Note: (For bagging and discharging)

$22.99

$

In Stock, Qty 20+

0

13

Husqvarna 532174360

Shaft Asm. w/Lower Bearing

$66.99

$

In Stock, only 1 left!

0

14

Husqvarna 532174358

Mandrel Asm.

$56.99

$

In Stock, only 3 left!

0

15

Husqvarna 532110485

Bearing, Ball, Mandrel

$13.99

$

In Stock, Qty 11

0

16

Husqvarna 532174493

Stripper Mandrel Deck

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 872110610

Bolt RDHD Sq Neck 3/8-16 x 1.25
(Superseded to 872140614)

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 872140505

Bolt, Carriage 5/16-18 x 5/8
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532132827

Bolt, Hex Hd, Shoulder 5/16-18

$

$

Not available

20

Husqvarna 532174378

Baffle, Vortex Mower

$14.99

$

Usually ships in 3-10 days

0

21

Husqvarna 873680500

Nut, Crownlock 5/16-18 Unc
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532105304

Cap, Sleeve

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532178102

Spring, Torsion
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

26

Husqvarna 532110452

Nut, Push

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532181707

Deflector Shield
(Superseded to 532180655)

$45.99

$

In Stock, only 4 left!

0

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga.

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532131491

Rod, Hinge
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Husqvarna 532173984

Screw, Thdroll Washer Head
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

31

Husqvarna 532129963

Washer, Spacer Mower Vented
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532177865

Pulley, Mandrel
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

33

Husqvarna 532178342

Nut, Flg. Top Lock Cntr. 9/16
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

36

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 532177968

Pulley, Idler, Flat

$31.99

$

In Stock, Qty 9

0

39

Husqvarna 532174375

Pulley, Idler, Driven

$39.99

$

In Stock, Qty 6

0

42

Husqvarna 532122052

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

43

Husqvarna 532174373

Arm, Idler Secondary

$

$

Not available

45

Husqvarna 532180806

Cover, Mandrel Deck

$

$

Not available

46

Husqvarna 532137729

Screw, Thdroll. 1/4-20 x 5/8

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 532180808

V-Belt, Mower, Secondary

$56.99

$

In Stock, Qty 6

0

48

Husqvarna 532174368

V-Belt, Mower, Primary

$56.99

$

Usually ships in 3-10 days

0

49

Husqvarna 873680600

Nut, Crownlock 3/8-16 Unc

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 872110612

Bolt, Carr. 3/8-16 x 1-1/2 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

52

Husqvarna 532175820

Pulley Idler Flat

$

$

Not available

56

Husqvarna 532155986

Bar Pnt Adj.

$20.99

$

In Stock, Qty 10

0

57

Husqvarna 532156941

Pin Head Rivet

$

$

Not available

91

Husqvarna 532180535

Bracket Asm N Roller RH

$

$

Not available

94

Husqvarna 532176066

Roller Nose 48"

$13.99

$

In Stock, Qty 13

0

95

Husqvarna 532180534

Bracket Asm N Roller LH

$4.99

$

Usually ships in 3-10 days

0

97

Husqvarna 532178515

Washer Hardened

$6.99

$

Usually ships in 3-10 days

0

98

Husqvarna 532179479

Spring Primary Drive

$

$

Not available

99

Husqvarna 532184058

Pulley Idler "V"
(Superseded to 532189993)

$66.99

$

In Stock, Qty 10

0

100

Husqvarna 872110616

Bolt RDHD Sqnk 3/8-16 Unc x 2

$6.49

$

Usually ships in 3-10 days

0

110

Husqvarna 532175016

Arm Spring Secondary

$

$

Not available

112

Husqvarna 532174387

Link Tension Relief Lever

$

$

Not available

113

Husqvarna 872110506

Bolt Carr. 5/16-18 x 3/4

$7.49

$

In Stock, Qty 20+

0

114

Husqvarna 532174384

Tension Asm. Relief Lever

$

$

Not available

115

Husqvarna 532174609

Arm Spring Tension Relief

$5.99

$

In Stock, only 1 left!

0

116

Husqvarna 532184219

Bolt, Shoulder
(Superseded to 532193406)

$5.99

$

In Stock, Qty 20+

0

117

Husqvarna 532133957

Gauge Wheel

$13.99

$

In Stock, Qty 10

0

118

Husqvarna 873930600

Nut, Centerlock 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Husqvarna 819121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

121

Husqvarna 532174371

Spring Secondary Drive

$

$

Not available

122

Husqvarna 532174606

Bushing Pivot Tension Relief

$4.99

$

In Stock, only 2 left!

0

126

Husqvarna 532174372

Arm, Idler, Primary Deck

$

$

Not available

130

Husqvarna 817000616

Screw 3/8-16 x 1.0

$7.49

$

In Stock, only 3 left!

0

132

Husqvarna 817000612

Screw 3/8-16 x .75

$4.99

$

In Stock, only 2 left!

0

182

Husqvarna 532179127

Rod Roller Nose
(Superseded to 594092501)

$6.99

$

In Stock, Qty 19

0

183

Husqvarna 532163552

Retainer Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

184

Husqvarna 532173979

Keeper Belt Idler

$

$

Not available

Husqvarna 532181591

Replacement Mower, Complete
(Superseded to 532181579)

$

$

Not available

Husqvarna 532174356

Mandrel Asm. Service
(Superseded to 587125201)

Note: (Includes Key Nos. 13-15 and 33)

$56.99

$

In Stock, only 4 left!
