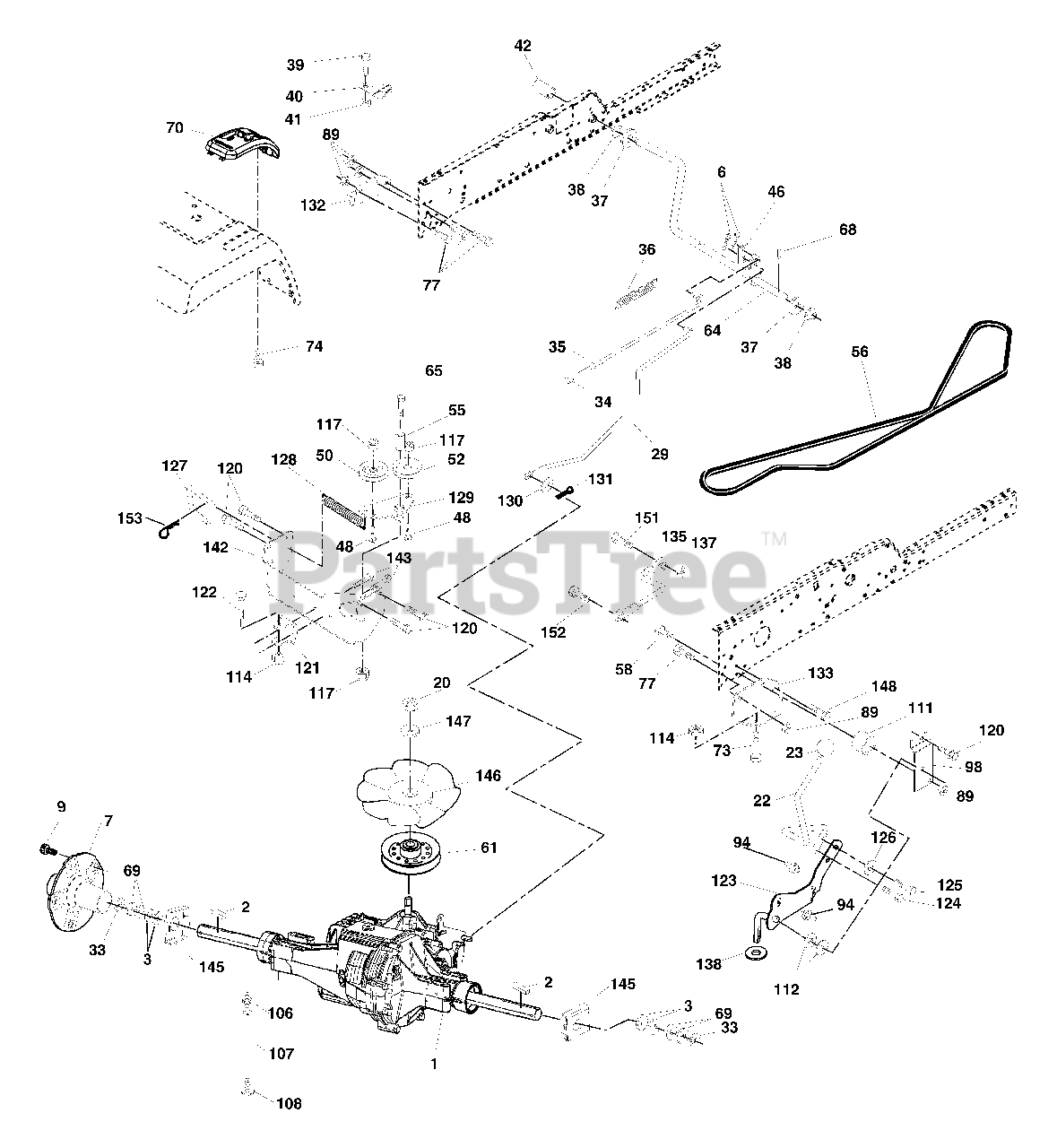

GTH 2248 XP (954567888-A) - Husqvarna 48" Garden Tractor (2002-01) Ground Drive Parts Diagram

48" Garden Tractor

Ground Drive Parts Diagram

  • Title

1

Transaxle Hydro Gear 331-3000

Note: (Order Parts From Transaxle Manufacturer)

$

$

Not available

2

Husqvarna 532180642

Key Sq. 1/4 x 1/4 x 2

$

$

Currently unavailable

3

Husqvarna 532007563

Washer

$8.99

$

In Stock, only 1 left!

0

6

Husqvarna 876020412

Pin, Cotter
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

7

Husqvarna 532140507

Wheel, Hub Assembly

$182.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532140080

Bolt, Hub

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 873940800

Nut

$7.49

$

In Stock, only 4 left!

0

22

Husqvarna 532176602

Lever Asm Shift

$

$

Not available

23

Husqvarna 532140845

Knob

$13.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532176600

Brake, Rod

$27.99

$

Usually ships in 3-10 days

0

33

Husqvarna 812000053

Ring E

$7.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532071673

Cap, Parking Brake

$5.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532137648

Rod, Parking Brake

$11.99

$

In Stock, only 1 left!

0

36

Husqvarna 532149412

Spring, Drive Ground

$

$

Not available

37

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532150035

Nyliner

$4.99

$

Usually ships in 3-10 days

0

39

Husqvarna 874321016

Screw, Fin. #10-24 x 1

$

$

Not available

40

Husqvarna 532178575

Actuator, Interlock VGT

$

$

Not available

41

Husqvarna 873931000

Nut Centerlock 10-24 Unc

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532008883

Cover, Pedal
(Superseded to 510089501)

$6.49

$

In Stock, Qty 14

0

46

Husqvarna 532145170

Retainer, Spring

$4.99

$

Usually ships in 3-10 days

0

48

Husqvarna 872110614

Bolt Rdhd 3/8-16 x 1.3/4 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532131494

Pulley, Idler, Flat
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

52

Husqvarna 532127783

Pulley, Idler, Grooved
(Superseded to 532139245)

$37.99

$

In Stock, only 1 left!

0

55

Husqvarna 532105706

Bearing, Idler

$7.49

$

Usually ships in 3-10 days

0

56

Husqvarna 532161597

V-Belt

$48.99

$

In Stock, only 2 left!

0

58

Husqvarna 874760724

Bolt Fin Hex 7/16-14 x 1-1/2

$4.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532143995

Pulley, Transaxle

$34.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532176601

Shaft, Brake Pedal

$60.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532179613

Bolt, Shoulder

$6.49

$

In Stock, only 2 left!

0

68

Husqvarna 532005142

Pin, Roll

$

$

Not available

69

Husqvarna 532123800

Washer

$7.49

$

In Stock, only 1 left!

0

70

Husqvarna 532181788

Console Automatic YT/GT

$

$

Not available

73

Husqvarna 874490548

Bolt Hex Flghd 5/16-18 x 3 Gr5

$6.49

$

In Stock, only 1 left!

0

74

Husqvarna 532142432

Screw Hex Wsh. Hi-Lo 1/4-1/2

$6.49

$

Usually ships in 3-10 days

0

77

Husqvarna 874780716

Bolt Fin Hex 7/16-14 x 1

$4.99

$

Usually ships in 3-10 days

0

89

Husqvarna 873680700

Nut Crownlock 7/16-14 Unc

$2.99

$

Usually ships in 3-10 days

0

94

Husqvarna 532133835

Fastener Christmas Tree

$7.49

$

Usually ships in 3-10 days

0

98

Husqvarna 532141004

Bracket Shift

$

$

Not available

106

Husqvarna 532142918

O-Ring Asm Hydro Gear

$

$

Not available

107

Husqvarna 532154739

Line Fuel Hydro 15" VGT

$6.49

$

Usually ships in 3-10 days

0

108

Husqvarna 532142917

Cap Asm Vent Hydro Gear
(Superseded to 532142578)

$46.99

$

Usually ships in 3-10 days

0

111

Husqvarna 532156240

Spacer Shift Lever VGTH

$2.99

$

Usually ships in 3-10 days

0

112

Husqvarna 532156104

Washer Nylon High Temp
(Superseded to 532178558)

$6.49

$

Usually ships in 3-10 days

0

114

Husqvarna 873800500

Nut Lock Hex W/Ins 5/16-18 Unc

$3.99

$

Usually ships in 3-10 days

0

117

Husqvarna 873900600

Nut, Lock Flg. 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

120

Husqvarna 817060612

Screw 3/8-16 x .75
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

121

Husqvarna 532175611

Bracket Strap Torque

$7.99

$

Usually ships in 3-10 days

0

122

Husqvarna 872010520

Bolt RDHDSQ 5/16-18 Unc x 2-1/2

$6.49

$

Usually ships in 3-10 days

0

123

Husqvarna 532180235

Rod Shift

$

$

Not available

124

Husqvarna 532165492

Bolt Shoulder 5/16-18 x .561

$10.99

$

In Stock, only 3 left!

0

125

Husqvarna 532166880

Screw 5/16-18 x 5/8

$6.49

$

Usually ships in 3-10 days

0

126

Husqvarna 532166002

Washer SRRTD 5/16 ID x 1.0 x .125

$6.49

$

Usually ships in 3-10 days

0

127

Husqvarna 532177362

Link Control Clutch

$

$

Not available

128

Husqvarna 532176624

Spring Drive GRND

$6.49

$

In Stock, only 1 left!

0

129

Husqvarna 532179473

Bracket Asm Idler Tensioning

$

$

Not available

130

Husqvarna 819131016

Washer 13/32 x 5/8 x 16 Ga.

$6.49

$

In Stock, Qty 5

0

131

Husqvarna 876020312

Pin Cotter 3/32 x 3/4
(Superseded to 876020308)

$

$

Not available

132

Husqvarna 532175467

Bracket Mtg Hydro 3500 LH VGT

$3.99

$

Usually ships in 3-10 days

0

133

Husqvarna 532175468

Bracket Mtg Hydro 3500 RH VGT

$6.49

$

Usually ships in 3-10 days

0

135

Husqvarna 532177364

Link Asm Control Hydro 3500

$

$

Not available

137

Husqvarna 532001685

Nut Lock 5/16-18 NC Thd.
(Superseded to 532068478)

$3.99

$

Usually ships in 3-10 days

0

138

Husqvarna 532001370

Washer Thrust 5/8 x 1.10 x 1/32

$6.49

$

In Stock, only 2 left!

0

142

Husqvarna 532175469

Strap Torque HG-3500

$37.99

$

Usually ships in 3-10 days

0

143

Husqvarna 817060512

Screw Thdrol 5/16-18 x 3/4
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

145

Husqvarna 532163168

Washer Axle Flange HG-3000

$15.99

$

In Stock, only 3 left!

0

146

Husqvarna 532140462

Fan 7" Hydro

$12.99

$

Usually ships in 3-10 days

0

147

Husqvarna 532141322

Washer

$4.99

$

Usually ships in 3-10 days

0

148

Husqvarna 817060620

Screw 3/8-16 x 1.0-1/4

$7.49

$

In Stock, Qty 11

0

151

Husqvarna 874760514

Bolt Hex 5/16-18 x 7/8
(Superseded to 596322201)

$3.99

$

In Stock, only 2 left!

0

152

Husqvarna 532178705

Bolt Hex 5/16 x 1 W/Patch

$

$

Not available

153

Husqvarna 532124788

Spring, Retainer
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0
