GTH 220 (954830167-B) - Husqvarna Garden Tractor (1996-05) Steering Assembly Parts Diagram

Garden Tractor

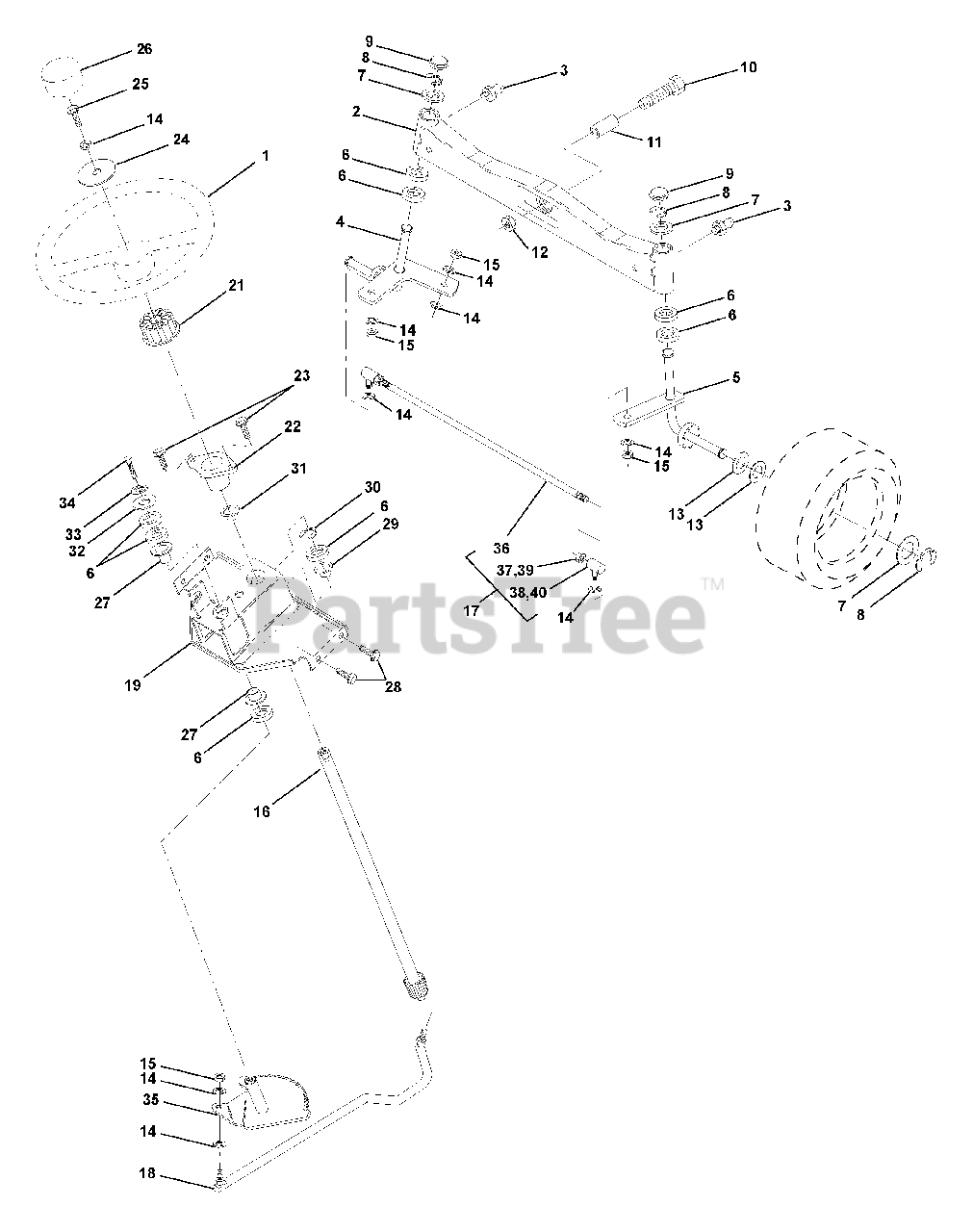

Steering Assembly Parts Diagram

  • Title

1

Husqvarna 532124415

Wheel, Steering

$

$

Not available

2

Husqvarna 532137094

Axle Asm., Front
(Superseded to 532178557)

$

$

Not available

3

Husqvarna 532124836

Fitting, Grease
(Superseded to 532183226)

$7.49

$

In Stock, Qty 11

0

4

Husqvarna 532136960

Spindle Asm, LH
(Superseded to 532161849)

$

$

Not available

5

Husqvarna 532136959

Spindle Asm., RH
(Superseded to 532161848)

$

$

Not available

6

Husqvarna 532124931

Bearing, Race Thrust Harden
(Superseded to 532006266)

$7.49

$

In Stock, Qty 20+

0

7

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 812000029

Ring, Klip #T5304-75

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 532121232

Cap, Spindle

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 874781044

Bolt, Fin Hex 5/8-11 x 2-3/4

$

$

Not available

11

Husqvarna 532136518

Spacer, Brg. Axle Front

$11.99

$

In Stock, Qty 20+

0

12

Husqvarna 873901000

Nut, Lock Flange 5/8-11 Unc
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

14

Husqvarna 810040600

Washer, Lock Hvy Hlcl Spr 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 532124701

Nut, Lock Center 3/8-24 Unf
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532145103

Shaft Asm., Steering

$136.99

$

In Stock, only 1 left!

0

17

Husqvarna 532137347

Rod Asm., Tie Ball J Ball Vgt
(Superseded to 532186799)

Note: (Inc. Key No. 36-40)

$87.99

$

In Stock, only 2 left!

0

18

Husqvarna 532137155

Draglink, Ball Joint Solid Vgt
(Superseded to 532175572)

$85.99

$

In Stock, Qty 11

0

19

Husqvarna 532146611

Support Asm., Steering Vgt
(Superseded to 532144673)

$

$

Not available

21

Husqvarna 532100711

Adapter, Wheel Steering
(Superseded to 587738905)

$11.99

$

In Stock, Qty 20+

0

22

Husqvarna 532155105

Bushing, Strg.
(Superseded to 532155108)

$7.99

$

In Stock, Qty 8

0

23

Husqvarna 532152927

Screw

$7.49

$

In Stock, Qty 19

0

24

Husqvarna 819133808

Washer 13/32 x 2-3/8 x 8 Ga.
(Superseded to 819133812)

$

$

Not available

25

Husqvarna 874780616

Bolt, Fin Hex 3/8-16 x 1 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532124416

Cap , Wheel Steering

$

$

Not available

27

Husqvarna 532124937

Bearing, Col. Strg.
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 817490612

Screw Thdrol 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

29

Husqvarna 532104239

Bearing, Flange

$13.99

$

In Stock, Qty 15

0

30

Husqvarna 812000034

Ring, Klip Truarc #5304-75

$

$

Not available

31

Husqvarna 532138136

Bushing, Nyliner Snap

$11.99

$

In Stock, Qty 18

0

32

Husqvarna 819111610

Washer 11/32 x 1 x 10 Ga.

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 810040500

Washer, Lock Hvy Hlcl Spr 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

34

Husqvarna 874760512

Bolt, Hex Hd 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 532138059

Gear, Sector Steering

$

$

Not available

36

Husqvarna 532137156

Tie Rod
(Superseded to 532186799)

$87.99

$

In Stock, only 2 left!

0

37

Husqvarna 873360600

Jam Nut RH Thread

$9.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532109850

Joint Asm. Ball RH Thread
(Superseded to 532121160)

$26.99

$

In Stock, only 1 left!

0

39

Husqvarna 873700600

Jam Nut LH Thread

$9.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532109851

Joint Asm. Ball LH Thread

$37.99

$

Usually ships in 3-10 days

0
