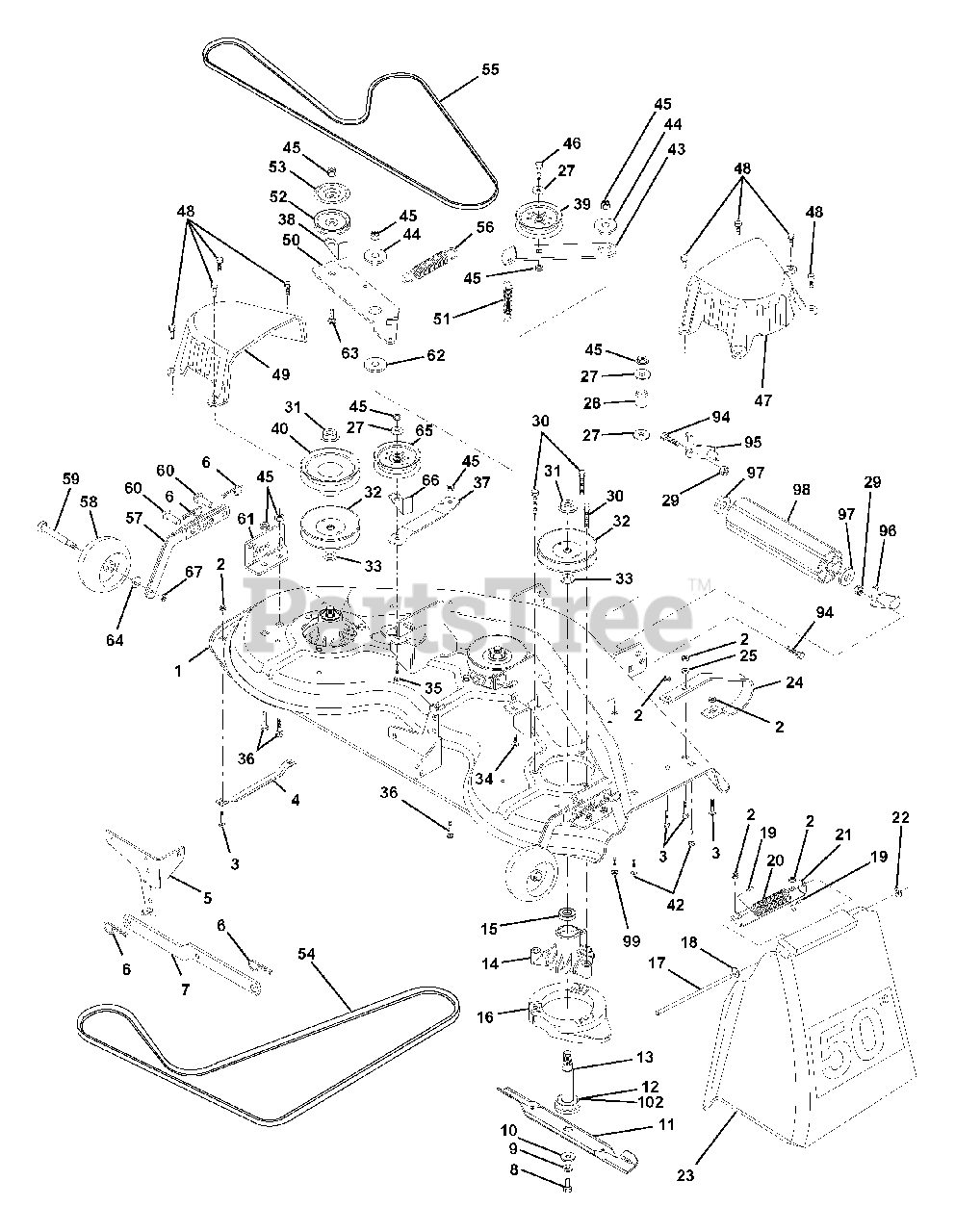

GTH 220 (954830167-B) - Husqvarna Garden Tractor (1996-05) Mower Deck Parts Diagram

Garden Tractor

Mower Deck Parts Diagram

  • Title

1

Husqvarna 532136457

Deck Asm., Mower 50" Vented
(Superseded to 532185382)

$

$

Not available

2

Husqvarna 873680500

Nut, Crownlock 5/16-18 Unc
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 872110506

Bolt, Carriage 5/16-18 x 3/4

$7.49

$

In Stock, Qty 19

0

4

Husqvarna 532125074

Runner, Mower LH
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532138457

Bracket Asm., Sway Bar

$11.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532124670

Retainer, Spring

$

$

Not available

7

Husqvarna 532130832

Arm Suspension, Rear
(Superseded to 532130833)

$8.99

$

In Stock, only 4 left!

0

8

Husqvarna 532850857

Bolt 3/8-24 x 1.25 Gr. 8 Patched

$4.99

$

In Stock, only 3 left!

0

9

Husqvarna 810030600

Washer, Lock Hvy 3/8 Unplated
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532140296

Washer, Hard Blade Mower Vented

$6.99

$

In Stock, only 2 left!

0

11

Husqvarna 532137380

Blade (3 Required)

$22.99

$

In Stock, only 3 left!

0

12

Husqvarna 532129895

Bearing, Ball #6204 (Mandrel)

$11.99

$

In Stock, Qty 20+

0

13

Husqvarna 532137553

Shaft Asm., W/Lower Brg

Note: (Includes Key No. 12)

$37.99

$

In Stock, only 1 left!

0

14

Husqvarna 532137152

Housing, Mandrel 50" Vent

$40.99

$

In Stock, only 1 left!

0

15

Husqvarna 532110485

Bearing, Ball Mandrel

$13.99

$

In Stock, Qty 7

0

16

Husqvarna 532140329

Stripper, Mower Vented
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532106735

Rod, Hinge

$10.99

$

In Stock, only 1 left!

0

18

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga.

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532105304

Cap, Sleeve

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 532123713

Spring, Torsion Deflector

$7.99

$

In Stock, only 3 left!

0

21

Husqvarna 532137607

Bracket, Deflector

$6.49

$

In Stock, only 2 left!

0

22

Husqvarna 532110452

Nut, Push

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532110509

Shield, Deflector Mower

$

$

Not available

24

Husqvarna 532136320

Runner, RH

$

$

Not available

25

Husqvarna 819111216

Washer 11/32 x 3/4 x 16 Ga.
(Superseded to 734116301)

$3.99

$

In Stock, Qty 18

0

27

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532132823

Spacer, Spring Stop Idler

$7.49

$

Usually ships in 3-10 days

0

29

Husqvarna 873800600

Nut, Lock Hex W/Wsh 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532138776

Screw Thdrol Hex Head
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 532137266

Nut, Flg Top Lock Cntr 9/16
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

32

Husqvarna 532153535

Pulley, Mandrel
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

33

Husqvarna 532129963

Washer, Spacer Mower Vented
(Superseded to 532187690)

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 872140610

Bolt, Carriage 3/8-16 x 1-1/4
(Superseded to 583611601)

$

$

Not available

35

Husqvarna 872110616

Bolt, Carriage 3/8-16 x 2

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 872110608

Bolt, Carriage 3/8-16 x 1 Gr. 5
(Superseded to 596728201)

$4.99

$

In Stock, only 2 left!

0

37

Husqvarna 532137166

Stiffener, Arm Idler

$6.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532137554

Keeper, Belt Idler
(Superseded to 532156085)

$

$

Not available

39

Husqvarna 532131494

Pulley, Idler Flat
(Superseded to 597025001)

$26.99

$

In Stock, Qty 7

0

40

Husqvarna 532136572

Pulley, Driven

$

$

Not available

42

Husqvarna 872140506

Bolt, Carriage 5/16-18 Unc x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

43

Husqvarna 532136460

Arm, Idler Secondary

$

$

Not available

44

Husqvarna 532122052

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

45

Husqvarna 873680600

Nut, Crownlock 3/8-16 Unc

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 874760628

Bolt, Fin Hex 3/8-16 Unc x 1-3/4
(Superseded to 874780628)

$6.49

$

In Stock, only 2 left!

0

47

Husqvarna 532137200

Cover, Mandrel RH

$

$

Not available

48

Husqvarna 532137729

Screw, Thd Roll 1/4-20 x 5/8

$4.99

$

In Stock, Qty 20+

0

49

Husqvarna 532136574

Cover, Mandrel LH

$

$

Not available

50

Husqvarna 532137272

Arm, Idler Primary

$6.49

$

Usually ships in 3-10 days

0

51

Husqvarna 532137273

Spring, Secondary

$7.99

$

In Stock, Qty 5

0

52

Husqvarna 532139245

Pulley, Idler V Groove

$37.99

$

In Stock, only 1 left!

0

53

Husqvarna 532137789

Shield, Idler

$

$

Not available

54

Husqvarna 532139573

V-Belt, Mower Primary

$51.99

$

In Stock, only 1 left!

0

55

Husqvarna 532144959

V-Belt, Mower Secondary

$43.99

$

In Stock, Qty 20+

0

56

Husqvarna 532138687

Spring, Primary

$

$

Not available

57

Husqvarna 532136577

Bar Asm., Wheel Gauge

$

$

Not available

58

Husqvarna 532133957

Wheel, Gauge

$13.99

$

In Stock, Qty 20+

0

59

Husqvarna 532137644

Bolt, Shoulder
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

60

Husqvarna 532139031

Pin, Clevis

$6.49

$

Usually ships in 3-10 days

0

61

Husqvarna 532136573

Bracket, Wheel Gauge

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 532133943

Washer Hardened
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

63

Husqvarna 872110612

Bolt Carriage 3/8-16 x 1-1/2

$6.49

$

Usually ships in 3-10 days

0

64

Husqvarna 819121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

65

Husqvarna 532151831

Pulley Idler Flat Mower
(Superseded to 532173981)

$44.99

$

In Stock, only 1 left!

0

66

Husqvarna 532139622

Keeper, Belt Idler 50" Vent
(Superseded to 532156009)

$7.49

$

In Stock, only 1 left!

0

67

Husqvarna 873930600

Nut, Center Lock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

94

Husqvarna 874760616

Bolt, Fin Hex 3/8-16 UNC x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

95

Husqvarna 532132274

Bracket, Asm. Noseroller LH
(Superseded to 532175746)

$9.49

$

In Stock, Qty 6

0

96

Husqvarna 532132273

Bracket, Asm. Noseroller RH
(Superseded to 532175747)

$10.99

$

Usually ships in 3-10 days

0

97

Husqvarna 819171416

Washer 17/32 x 7/8 x 16 Ga.

$4.99

$

In Stock, Qty 8

0

98

Husqvarna 532132264

Roller, Nose

$44.99

$

In Stock, Qty 20+

0

99

Husqvarna 872110614

Bolt, Carriage 3/8-16 x 1-3/4 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

102

Husqvarna 532153390

Washer Felt

$6.49

$

In Stock, only 3 left!

0

Husqvarna 532143651

Mandrel Asm

Note: (Includes Key Nos. 8- 10, 12-15, 31 and 33)

$102.99

$

In Stock, only 4 left!

0

Husqvarna 532141051

Mower Asm Service
(Superseded to 532181689)

Note: (Std. Deck - Order separately all Nose Roller and all Gauge Wheel components)

$1092.99

$

Usually ships in 3-10 days
