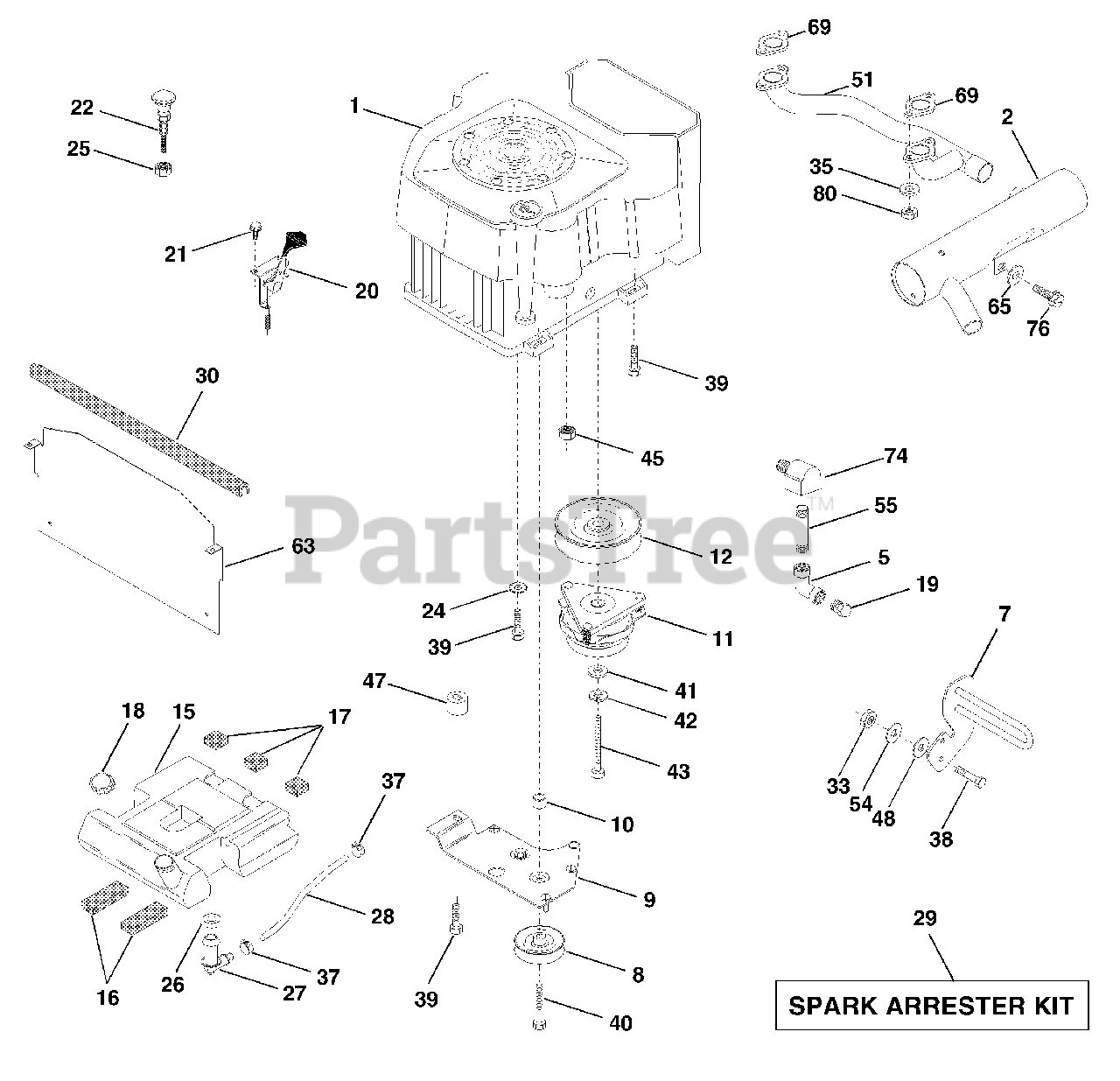

GTH 220 (954140012-F) - Husqvarna Garden Tractor (1999-03) Engine Parts Diagram

Garden Tractor

Engine Parts Diagram

  • Title

1

Engine Kohler, Model No. CV22S

Note: Order parts from engine manufacturer

$

$

Not available

2

Husqvarna 532161063

Muffler Side

$

$

Not available

5

Husqvarna 813200300

Elbow STD 90 Degree 3/8-18 NPT
(Superseded to 532428287)

$18.99

$

In Stock, only 2 left!

0

7

Husqvarna 532151396

Muffler Assembly Guard

$

$

Not available

8

Husqvarna 532121361

Pulley V-Idler
(Superseded to 532139123)

$37.99

$

In Stock, only 1 left!

0

9

Husqvarna 532150828

Keeper Asm Belt Engine VGT 96
(Superseded to 532177748)

$

$

Not available

10

Husqvarna 532105432

Bushing

$

$

Not available

11

Husqvarna 532140923

Clutch Electric
(Superseded to 532174509)

$546.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532143996

Pulley Engine VGT Elect Clutch

$53.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532151346

Tank Fuel Rear

$96.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532109227

Pad Spacer

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532106082

Pad Spacer

$

$

Not available

18

Husqvarna 532140527

Cap Asm Fuel W/Sym Vented
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

19

Husqvarna 813290300

Plug Oil Drain

Note: (Order From Engine Manufacturer)

$

$

Not available

20

Husqvarna 532132747

Control Throttle
(Superseded to 532132748)

$

$

Not available

21

Husqvarna 817720410

Screw Hex Thd Cut 1/4-20 X 5/8
(Superseded to 874780410)

$3.99

$

In Stock, only 3 left!

0

22

Husqvarna 532132781

Control Choke

$

$

Not available

24

Husqvarna 811050600

Washer Ext Tooth 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 873920600

Nut Keps 3/8 - 24 UNF

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532124952

Bushing
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532139277

Stem Tank Fuel

$8.99

$

In Stock, Qty 5

0

28

Husqvarna 532124703

Fuel Line
(Superseded to 532008542)

$

$

Not available

29

Husqvarna 532132920

Spark Arrester Kit

$

$

Not available

30

Husqvarna 532161547

Extrusion Hood

$2.99

$

Usually ships in 3-10 days

0

33

Husqvarna 873800600

Nut, Hex W/Ins. 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 810010500

Washer Split

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532123487

Clamp Hose

$7.49

$

In Stock, only 4 left!

0

38

Husqvarna 874780624

Bolt, Fin Hex 3/8-16 UNC x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

39

Husqvarna 817490636

Screw TT 3/8-16 x 2-1/4 UNC
(Superseded to 596564004)

$2.49

$

In Stock, Qty 6

0

40

Husqvarna 817490664

Screw TT 3/8-16 x 4 UNC

$

$

Not available

41

Husqvarna 532126197

Washer 1-1/2 OD X 15/32 ID X .250

$8.99

$

In Stock, only 3 left!

0

42

Husqvarna 810040700

Washer Lock 7/16
(Superseded to 539990247)

$

$

Not available

43

Husqvarna 532150280

Bolt Hex 7/16-20 X 4-1/4 Ga 5
(Superseded to 532173937)

$4.99

$

In Stock, only 1 left!

0

45

Husqvarna 532128861

Nut Flange 1/4-20 Starter Nut
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

47

Husqvarna 532142040

Spacer Engine

$

$

Not available

48

Husqvarna 819132007

Washer 13/32 x 1-1/4 x 7 Ga.

$3.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532161231

Manifold Pipe VGT

$

$

Not available

54

Husqvarna 819131414

Washer Flat 13/32 x 7/8 x 14 Ga.

$6.49

$

In Stock, only 2 left!

0

55

Husqvarna 813280336

Nipple, Pipe 4-1/2"

$

$

Not available

63

Husqvarna 532145549

Shield, Heat VGT YP/Husq.

$

$

Not available

65

Husqvarna 819131614

Washer 13/32 x 1 x 14 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

69

Husqvarna 532163307

Gasket
(Superseded to 532186054)

$

$

Not available

74

Husqvarna 532162295

Elbow Street Brass

$34.99

$

In Stock, only 1 left!

0

76

Husqvarna 817490612

Screw Thrdrol 3/8-16 x 3/4 Ty-TT
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

80

Husqvarna 532163305

Nut Flange
(Superseded to 873030800)

$

$

Not available
