GTH 220 (954140012-E) - Husqvarna Garden Tractor (1998-09) ELECTRICAL Parts Diagram

Garden Tractor

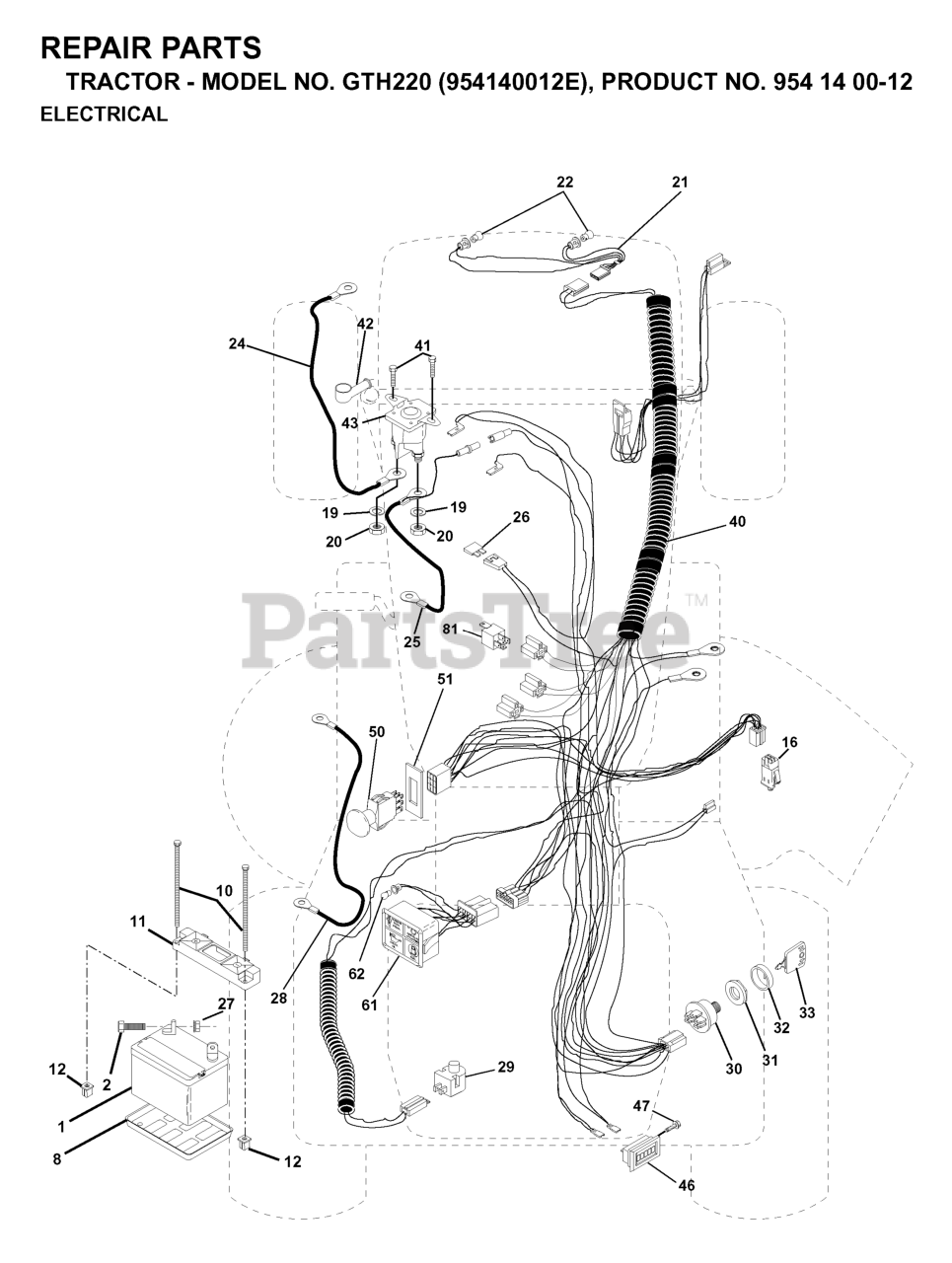

ELECTRICAL Parts Diagram

  • Title
33

Husqvarna 532122147

KEY.MOLDED.GENERIC

$

$

Not available

11

Husqvarna 532150109

BATTERY HOLDDOWN FRONT MOUNT

$

$

Not available

32

Husqvarna 532141226

COVER SWITCH KEY

$5.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532124886

BATTERY TRAY T
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532157899

CABLE, GROUND

$

$

Not available

81

Husqvarna 532109748

RELAY.ASSY.T

$30.99

$

In Stock, only 1 left!

0

20

Husqvarna 873350400

NUT
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

29

Husqvarna 532160784

PLUNGER SWITCH (COLOR:OLIVE)

$20.99

$

In Stock, only 1 left!

0

10

Husqvarna 532145211

BOLT 1/4-20 X 7.5
(Superseded to 532150177)

$

$

Not available

43

Husqvarna 532145673

SOLINOID
(Superseded to 532146154)

$24.99

$

In Stock, only 3 left!

0

41

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532153664

SWITCH INTERLOCK
(Superseded to 532176138)

$22.99

$

In Stock, Qty 7

0

31

Husqvarna 532124211

NUT IGNITION

$5.99

$

In Stock, only 1 left!

0

22

$4.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532138101

LIGHT PACKAGE

$

$

Not available

12

Husqvarna 532145769

NUT, PUSH NYLON 1/4" BATTERY
(Superseded to 532150177)

$

$

Not available

21

Husqvarna 532136850

HARNESS LIGHT SOCKET

$

$

Not available

25

Husqvarna 532146686

CABLE, BATTERY

$10.99

$

Usually ships in 3-10 days

0

27

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

24

Husqvarna 532004014

CABLE, STARTER

$

$

Not available

19

Husqvarna 810090400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

1

Husqvarna 532144927

BATTERY 12V .35 AMP
(Superseded to 532125603)

$194.99

$

In Stock, only 1 left!

0

50

Husqvarna 532154959

SWITCH PTO 3 PDT
(Superseded to 582107601)

$28.99

$

In Stock, Qty 5

0

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, only 1 left!

0

26

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 532110143

BULB LIGHT T

$

$

Not available

51

Husqvarna 532140405

FRAME RETAINING RING

$6.49

$

Usually ships in 3-10 days

0

47

Husqvarna 817011008

Screw 10-24 x 1/2 Black

$

$

Not available

30

Husqvarna 532140301

SWITCH.IGNITION.4.POSITION

$37.99

$

In Stock, only 1 left!

0

46

Husqvarna 532110940

HOUR METER T
(Superseded to 532169642)

$103.99

$

Usually ships in 3-10 days

0
