GTH 220 (954140012-C) - Husqvarna Garden Tractor (1998-02) Ground Drive Parts Diagram

Garden Tractor

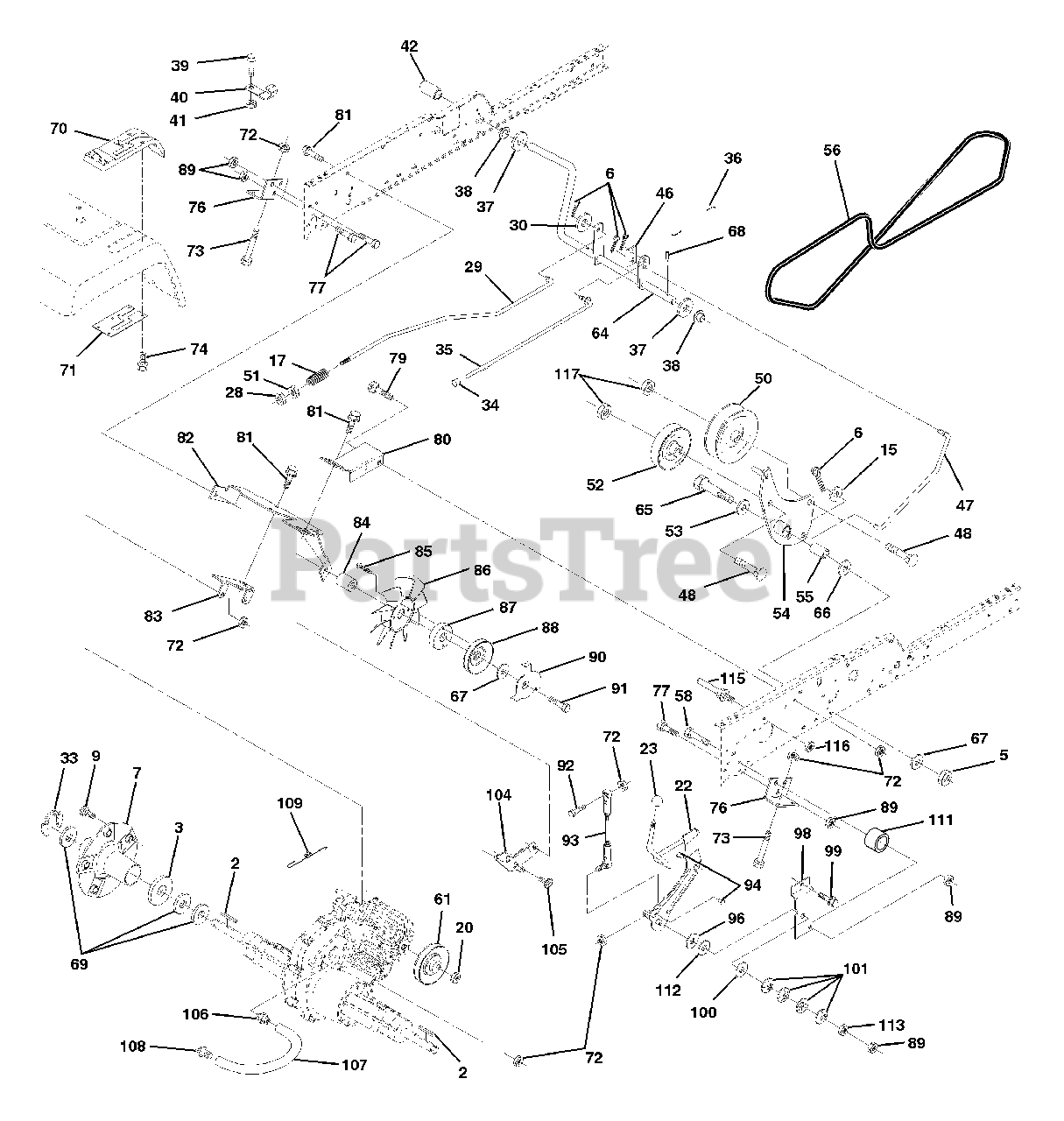

Ground Drive Parts Diagram

  • Title
2

Husqvarna 532007070

Key 1/4 x 2.5

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532007563

Washer Thrust Axle Harden

$8.99

$

In Stock, only 1 left!

0

5

Husqvarna 873680600

Nut Crownlock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 876020412

Pin Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

7

Husqvarna 532140507

Wheel Hub Asm.

$182.99

$

Usually ships in 3-10 days

0

9

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 532140921

Spring Rod Brake

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 873940800

Nut Hex Jam Toplock 1/2-20

$7.49

$

In Stock, only 4 left!

0

22

Husqvarna 532156103

Shaft Arm Asm

$

$

Not available

$13.99

$

Usually ships in 3-10 days

0

28

Husqvarna 873350600

Nut, Hex Jam 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

29

$11.99

$

Usually ships in 3-10 days

0

30

Husqvarna 819131616

Washer 13/32 x 1 x 16 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

$7.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532071673

Cap Plunger

$5.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532137648

Rod Parking Brake

$11.99

$

In Stock, only 1 left!

0

36

Husqvarna 532149412

Spring Drive Ground

$

$

Not available

37

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

Usually ships in 3-10 days

0

38

$4.99

$

Usually ships in 3-10 days

0

39

Husqvarna 874321016

Screw Fin #10-24 x 1

$

$

Not available

40

Husqvarna 532005304

Actuator Interlock Switch
(Superseded to 532178575)

$

$

Not available

41

Husqvarna 873661000

Nut Toplock #10-24 UNC

$

$

Not available

42

Husqvarna 532123533

Cover Pedal

$6.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532145170

Retainer Spring

$4.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532138228

Clutch Rod

$12.99

$

Usually ships in 3-10 days

0

48

Husqvarna 872110612

Bolt Carriage 3/8-16 x 1-1/2 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532131494

Pulley Idler Flat
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

51

Husqvarna 873800600

Nut Lock Hex 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532139123

Pulley Idler Grooved

$37.99

$

In Stock, only 1 left!

0

53

Husqvarna 532000207

Washer Hartdened

$6.49

$

Usually ships in 3-10 days

0

54

Husqvarna 532161590

Clutch Arm Asm

$18.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532105706

Bearing, Idler

$7.49

$

Usually ships in 3-10 days

0

$60.99

$

In Stock, only 1 left!

0

58

Husqvarna 874760724

Bolt Fin Hex 7/16-14 x 1-1/2

$4.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532140488

Pulley Transaxle

$43.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532154752

Shaft Asm Brake Parking Clutch

$

$

Not available

65

Husqvarna 532067609

Bolt Shoulder

$

$

Not available

66

Husqvarna 532140296

Washer Hardened

$6.99

$

In Stock, only 2 left!

0

67

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

68

$

$

Not available

$7.49

$

In Stock, only 1 left!

0

70

Husqvarna 532151146

Console Hydro Fender
(Superseded to 532153762)

$

$

Not available

71

Husqvarna 532151179

Plate Console Shift

$

$

Not available

72

Husqvarna 873800500

Locknut Hex W/Washer Insert

$3.99

$

Usually ships in 3-10 days

0

73

Husqvarna 874780548

Bolt Fin Hex 5/16-18 x 3

$2.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532142432

Screw, Hex Wsh Hi-Lo 1/4-1/2

$6.49

$

Usually ships in 3-10 days

0

76

Husqvarna 532140481

Bracket Transaxle

$

$

Not available

77

Husqvarna 874760716

Bolt Fin Hex 7/16-14 x 1
(Superseded to 874780716)

$4.99

$

Usually ships in 3-10 days

0

78

Husqvarna 819111212

Washer 11/32 x 3/4 x 12 Ga.

$8.99

$

Usually ships in 3-10 days

0

79

Husqvarna 872110505

Bolt Carriage 5/16-18 x 5/8
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

80

Husqvarna 532140484

Bracket Torque RH

$

$

Not available

81

Husqvarna 817490612

Screw Thdrol 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

82

Husqvarna 532150586

Bracket Mount Torque/Fan
(Superseded to 532154561)

$

$

Not available

83

Husqvarna 532140479

Strap Torque Mid

$

$

Not available

$

$

Not available

85

Husqvarna 817541020

Screw #10-24 x 1-1/4

$

$

Not available

86

Husqvarna 532140462

Fan 7" Hydro

$12.99

$

Usually ships in 3-10 days

0

87

Husqvarna 532140491

Adapter Fan

$

$

Not available

88

Husqvarna 532140492

Pulley Idler
(Superseded to 532161592)

$

$

Not available

89

Husqvarna 873680700

Nut, Crownlock 7/16-14

$2.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532140489

Keeper Belt

$8.99

$

Usually ships in 3-10 days

0

91

Husqvarna 817490644

Screw Thdrol 3/8-16 x 2-3/4

$

$

Not available

92

Husqvarna 874760520

Bolt Fin Hex 5/16-18 x 1.75
(Superseded to 874780520)

$4.99

$

Usually ships in 3-10 days

0

93

Husqvarna 532140502

Link Shift Asm

$

$

Not available

94

Husqvarna 532133835

Fastner Christmas Tree

$7.49

$

Usually ships in 3-10 days

0

96

Husqvarna 532141103

Washer Nickel Plated

$3.99

$

Usually ships in 3-10 days

0

98

Husqvarna 532141004

Bracket Shift

$

$

Not available

99

Husqvarna 817490624

Screw Thdrol 3/8-16 x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

100

Husqvarna 532126881

Washer Compression

$3.99

$

Usually ships in 3-10 days

0

101

Husqvarna 532156106

Washer Bellville

$

$

Not available

104

Husqvarna 532140480

Bracket Idler

$

$

Not available

105

Husqvarna 817580408

Screw Tap 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

106

Husqvarna 532142918

O-Ring Asm. Hydro Gear

$

$

Not available

107

Husqvarna 532154739

Line Fuel Hydro

$6.49

$

Usually ships in 3-10 days

0

108

Husqvarna 532142917

Cap Vent
(Superseded to 532142578)

$46.99

$

Usually ships in 3-10 days

0

109

Husqvarna 532140929

Spring Return Brake

$

$

Not available

111

Husqvarna 532156240

Spacer Shift Lever VGTH

$2.99

$

Usually ships in 3-10 days

0

112

Husqvarna 532156104

Washer Nylon High Temp
(Superseded to 532178558)

$6.49

$

Usually ships in 3-10 days

0

113

Husqvarna 873220700

Nut Hex ASF 7/16-14 UNC

$2.99

$

Usually ships in 3-10 days

0

115

Husqvarna 532123405

Keeper Belt Gnd Dr.
(Superseded to 532156109)

$8.99

$

Usually ships in 3-10 days

0

116

Husqvarna 873900500

Nut Lock Hex Flange 5/16-18
(Superseded to 583612701)

$

$

Not available

117

Husqvarna 873900600

Nut Lock Flg. 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

Husqvarna 532150073

Transaxle Hydro
(Superseded to 532163198)

$

$

Not available
