GTH 200 (954140046-C) - Husqvarna Garden Tractor (1999-04) Seat Assembly Parts Diagram

Garden Tractor

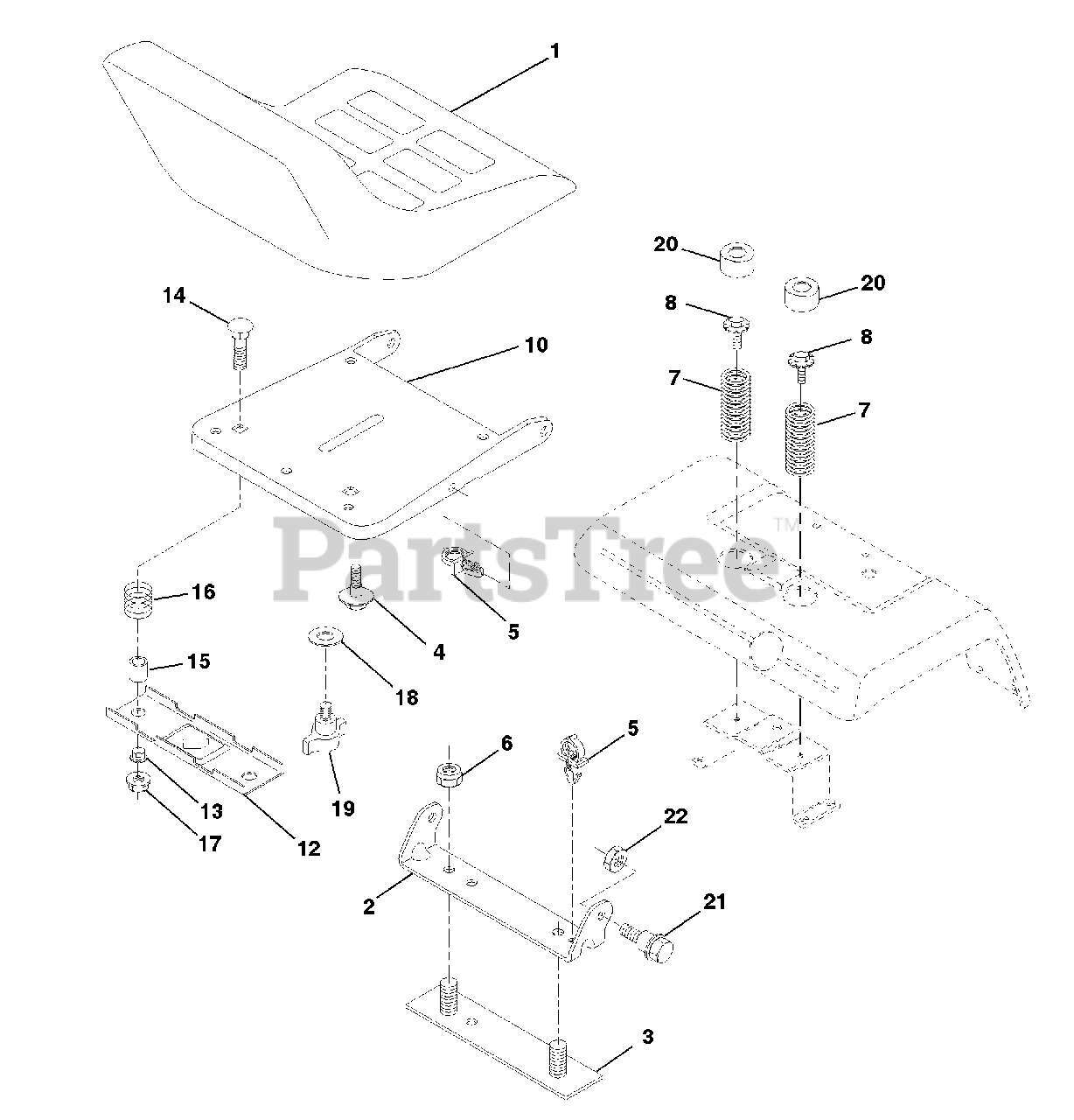

Seat Assembly Parts Diagram

  • Title
1

Husqvarna 532141525

Seat
(Superseded to 532401043)

$

$

Not available

2

Husqvarna 532140551

Bracket, Pivot Seat

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532140675

Strap, Fender

$6.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532127018

Bolt, Shoulder 5/16-18 X .62

$7.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532145006

Clip, Push In Hinged

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 873800600

Nut, Lock Hex W/Ins. 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532124181

Spring, Seat Cprsn
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

8

Husqvarna 532150176

Bolt 5/16-18unc x 3/4 W/Sems
(Superseded to 532171877)

$7.49

$

In Stock, Qty 5

0

10

Husqvarna 532155925

Pan, Seat
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532121246

Bracket, Mounting Switch
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532121248

Bushing, Snap

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 872050412

Bolt, Carriage 1/4-20 X 1-1/2

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532121249

Spacer, Split

$6.49

$

In Stock, only 2 left!

0

16

Husqvarna 532123740

Spring, Cprsn

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532123976

Nut, Lock 1/4 Lge Flg Gr. 5
(Superseded to 873900400)

$4.99

$

In Stock, Qty 16

0

18

Husqvarna 819171912

Washer 17/32 X 1-3/16 X 12 Ga.

$7.49

$

In Stock, only 1 left!

0

19

Husqvarna 532120068

Knob, Seat 1/2-13 Unc
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

20

Husqvarna 532124238

Cap, Spring Seat

$

$

Not available

21

Husqvarna 532153236

Bolt, Shoulder 5/16-18 Unc-2A
(Superseded to 587907801)

$4.99

$

In Stock, Qty 8

0

22

Husqvarna 873680500

Nut, Crownlock 5/16-18 Unc
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0
