GTH 200 (954002022-A) - Husqvarna Garden Tractor (1995-05) CHASSIS & ENCLOSURES Parts Diagram

Garden Tractor

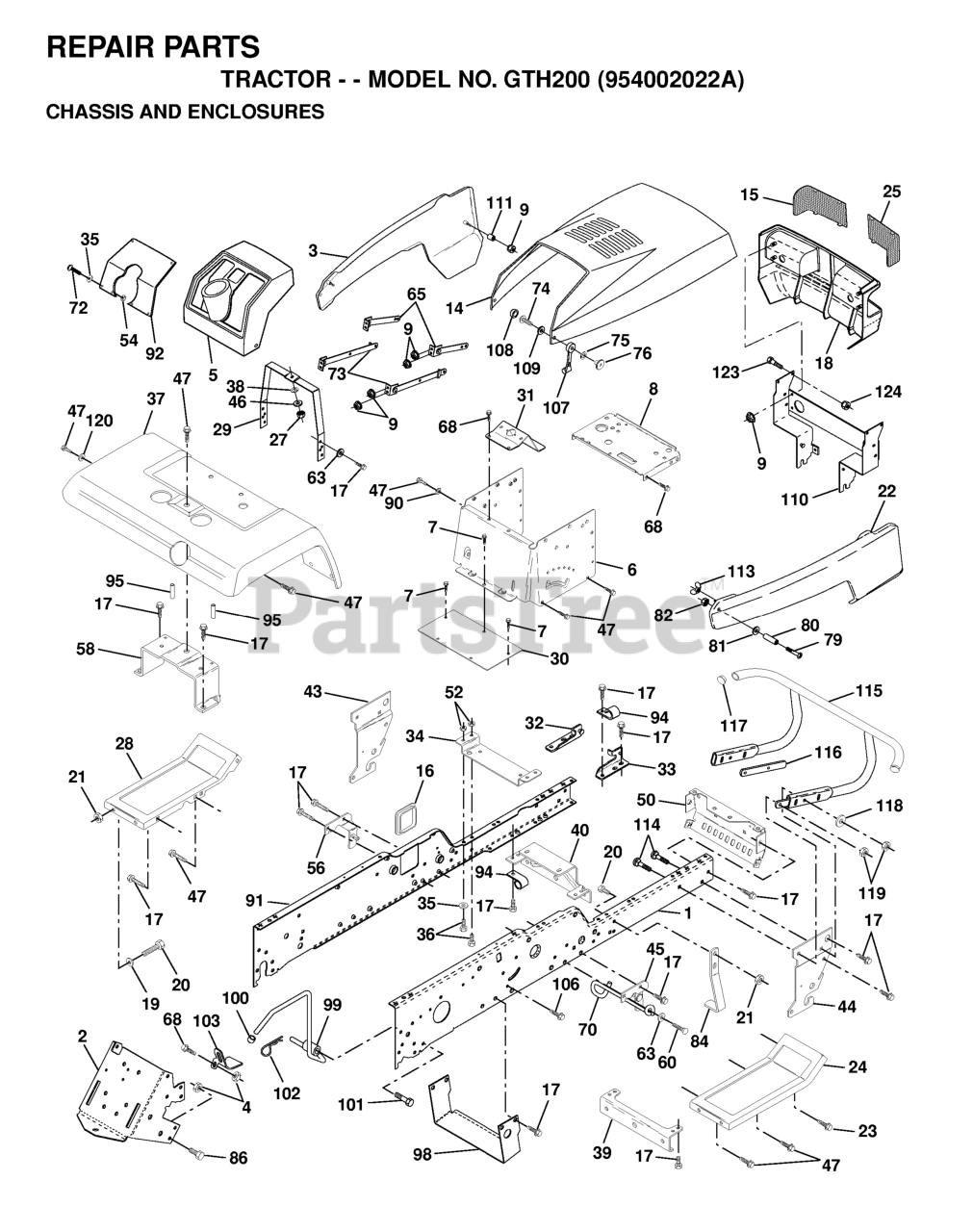

CHASSIS & ENCLOSURES Parts Diagram

  • Title
37

Husqvarna 532141449

FENDER
(Superseded to 532167270)

$

$

Not available

84

Husqvarna 532142992

MOWER STOP

$6.49

$

Usually ships in 3-10 days

0

76

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532124251

LENS RH
(Superseded to 532157069)

$

$

Not available

91

Husqvarna 532144735

RAIL, FRAME LH
(Superseded to 532151630)

$

$

Not available

124

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

75

Husqvarna 810071000

LOCKWASHER #10

$4.99

$

In Stock, Qty 11

0

18

Husqvarna 532127320

GRILL COMPLETE
(Superseded to 532157236)

$

$

Not available

45

Husqvarna 532138460

CHASSIS BRKT
(Superseded to 532155887)

$

$

Not available

22

Husqvarna 532143365

SIDE PANEL ASSY RH
(Superseded to 532140677)

$

$

Not available

68

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532145166

SUPPORT, BATTERY

$

$

Not available

109

$

$

Not available

21

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532147202

FOOTREST RH
(Superseded to 532145243)

$

$

Not available

114

Husqvarna 872140610

BOLT.3/8-14X1.25
(Superseded to 583611601)

$

$

Not available

2

Husqvarna 532140506

DRAWBAR-GT
(Superseded to 532175282)

$

$

Not available

102

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

119

$3.99

$

Usually ships in 3-10 days

0

118

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

95

Husqvarna 532105531

NUT-PUSH YT

$2.99

$

Usually ships in 3-10 days

0

120

Husqvarna 819131616

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

92

Husqvarna 532141626

DASH PLATE
(Superseded to 532140130)

$

$

Not available

38

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

56

Husqvarna 532138461

SUSPENSION BRKT LH
(Superseded to 532155886)

$

$

Not available

54

Husqvarna 873510500

NUT
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

103

Husqvarna 532142273

BRACKET LOCK BYPASS

$

$

Not available

35

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

70

Husqvarna 532137159

BELT GUIDE
(Superseded to 532177679)

$9.99

$

Usually ships in 3-10 days

0

27

Husqvarna 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

33

Husqvarna 532141314

FRAME PIVOT BRKT ASSY RH

$

$

Not available

50

Husqvarna 532136575

CHASSIS BRKT

$

$

Not available

32

Husqvarna 532141315

FRAME PIVOT BRKT ASSY LH

$7.99

$

Usually ships in 3-10 days

0

113

Husqvarna 532123198

WING NUT
(Superseded to 532146525)

$

$

Not available

43

Husqvarna 532136939

FRONT SUSPENSION BRKT LH

$

$

Not available

106

Husqvarna 532138776

SCREW
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

44

Husqvarna 532136940

FRONT SUSPENSION BRKT RH

$

$

Not available

14

Husqvarna 532125454

HOOD.HUSQVARNA.ORANGE

$

$

Not available

117

Husqvarna 532143679

PLUG PLASTIC

$2.99

$

Usually ships in 3-10 days

0

98

Husqvarna 532140503

BRACKET CHASSIS
(Superseded to 532175847)

$

$

Not available

28

Husqvarna 532147203

FOOT REST LH

$

$

Not available

39

Husqvarna 532136961

FRONT AXLE BRACKET

$

$

Not available

25

Husqvarna 532124250

LENS LH
(Superseded to 532157068)

$

$

Not available

20

Husqvarna 874760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 873800700

Nut, Lock Hex 7/16 Unc

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

86

Husqvarna 874760716

BOLT
(Superseded to 874780716)

$4.99

$

Usually ships in 3-10 days

0

$

$

Not available

52

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

60

Husqvarna 817490620

SCREW
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

74

Husqvarna 874191008

SCREW
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

111

$

$

Not available

63

Husqvarna 819131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

116

Husqvarna 532141461

BRACKET BUMPER
(Superseded to 532170310)

$

$

Not available

79

Husqvarna 874981020

RP SCREW
(Superseded to 874981024)

$9.99

$

In Stock, Qty 9

0

101

Husqvarna 817490628

SCREW LT
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532121794

COVER ACCESS

$

$

Not available

3

Husqvarna 532143364

SIDE PANEL ASSY LH
(Superseded to 532140676)

$

$

Not available

19

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

72

Husqvarna 874180512

Screw, Machine, Truss Head 5/16-18 UNC x 3/4

$

$

Not available

82

Husqvarna 873731000

NUT **
(Superseded to 873271000)

$2.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532108067

PAL NUT LT

$

$

Not available

30

Husqvarna 532145052

SADDLE.HYDRO.95

$

$

Not available

110

Husqvarna 532140625

GRILL SUPPORT ASSY

$

$

Not available

47

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532145183

BRACE, SUPPORT STEERING

$

$

Not available

6

Husqvarna 532145053

DASH, LOWER

$84.99

$

Usually ships in 3-10 days

0

80

$7.49

$

In Stock, Qty 6

0

94

$4.99

$

Usually ships in 3-10 days

0

99

Husqvarna 532140871

ROD ASMBLY BYPASS

$

$

Not available

29

Husqvarna 532145205

DASH SUPT YP

$

$

Not available

123

Husqvarna 532123481

BOLT T
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

Husqvarna 532125085

PLUG-DASH T

$

$

Not available

100

Husqvarna 532124236

CAP
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

46

$

$

Not available

115

Husqvarna 532141460

BUMPER ASSY
(Superseded to 954040608)

$

$

Not available

$6.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532137113

FENDER BRKT
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

90

Husqvarna 811050600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

107

Husqvarna 532109808

LATCH.HOOD.

$6.99

$

In Stock, Qty 14

0

40

Husqvarna 532142132

AXLE SUPPORT BRKT
(Superseded to 532156111)

$9.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532144737

RAIL, FRAME RH
(Superseded to 532150383)

$121.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532142131

ENGINE SUPPORT BRKT

$6.49

$

Usually ships in 3-10 days

0

108

Husqvarna 532110356

SNAP CAP LT

$3.99

$

Usually ships in 3-10 days

0
