GT-954 H (14AQ816K790) - White Outdoor 54" Garden Tractor (2006) Deck Assembly Parts Diagram

54" Garden Tractor

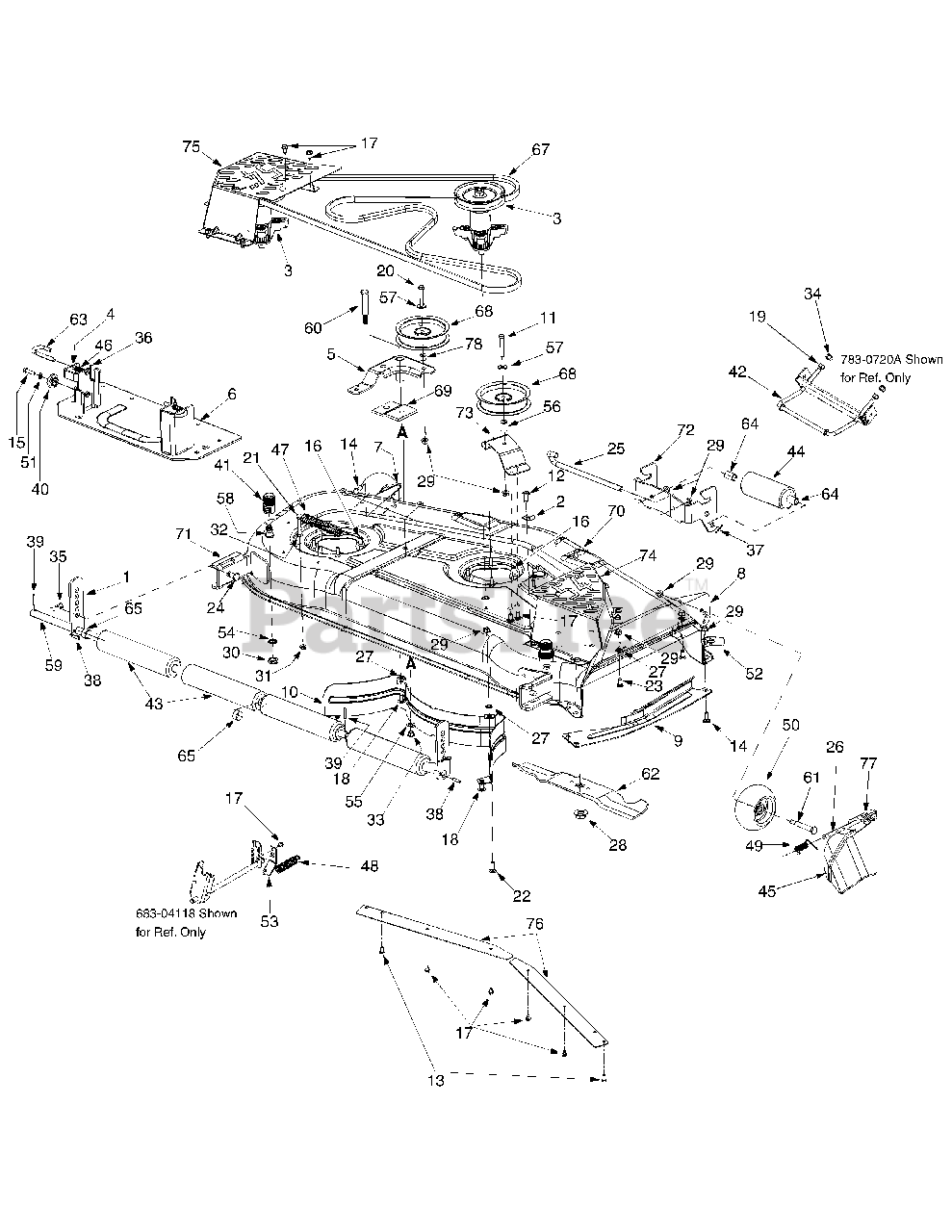

Deck Assembly Parts Diagram

  • Title

1

White Outdoor 12650

Bracket, Adjustment, Height

Variations

White Outdoor 12650-0637

Height Adjuster, Powder Black - POWDER BLACK (0637)

$43.99

$

In Stock, only 3 left!

0

White Outdoor 12650-4008

Height Adjuster - WINE RED (4008)

$43.99

$

In Stock, only 3 left!

0

$35.99

$

Usually ships in 3-6 days

0

2

White Outdoor 16606

Bracket, Hook, Retainer
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

3

White Outdoor 618-0671

Spindle Assembly, Pulley
(Superseded to 918-04608A)

$153.99

$

In Stock, Qty 16

0

3

White Outdoor 712-0417A

Flange Nut:5/8-18

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

3

White Outdoor 937-3000

Grease Fitting:3/16:LNC #70:DRI

Note: Not shown

$4.99

$

In Stock, Qty 20+

0

3

White Outdoor 738-1197

Spindle Shaft:6.95 LG.

Note: Not shown

$41.99

$

In Stock, Qty 15

0

3

White Outdoor 941-0919

Ball Bearing:20x47x14:62
(Superseded to 941-0919B)

Note: Not shown

$21.99

$

In Stock, Qty 20+

0

3

White Outdoor 750-1000

Spacer:.80 x 1.10 x 1.322

Note: Not shown

$4.49

$

In Stock, Qty 7

0

3

White Outdoor 750-1349A

Spacer:.79 x 1.84 x.55

Note: Not shown

$13.99

$

In Stock, only 3 left!

0

3

White Outdoor 756-1171

Deck Pulley:5.39 Dia

Note: Not shown

$39.99

$

In Stock, only 3 left!

0

4

White Outdoor 683-0254B

Bracket Assembly, Deck, Hanger LH

Variations

White Outdoor 683-0254B-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-4021

Deck Bracket Assembly, LH - CUB YELLOW 2 (4021)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-4033

Deck Bracket Assembly, LH - FLINT MICA (4033)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-4044

Deck Bracket Assembly, LH - CRAFTSMAN RED (4044)

$49.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-0606

Deck Bracket Assembly, LH - MAJESTIC ORANGE (0606)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-0638

Deck Bracket Assembly, LH - MTD/TROY-BILT RED (0638)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-0650

BRACKET ASSY-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-0665

BRACKET ASSY-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-4008

BRACKET ASSY-DECK LH - WINE RED (4008)

$46.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-0709

BRACKET ASSY-DECK LH - MASTERCRAFT GREEN (0709)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-4028

BRACKET ASSY-DECK LH - SEARS YELLOW (4028)

$36.99

$

In Stock, only 1 left!

0

$46.99

$

Usually ships in 3-6 days

0

5

White Outdoor 683-0459

Idler Assembly, 54"

Variations

White Outdoor 683-0459-0637

Idler Assembly, 54" GT - POWDER BLACK (0637)

$74.99

$

In Stock, only 1 left!

0

White Outdoor 683-0459-4008

Idler Assembly, 54" GT - WINE RED (4008)

$74.99

$

In Stock, only 1 left!

0

$60.99

$

Usually ships in 3-6 days

0

6

White Outdoor 683-0608A

Bracket Assembly, Lift, 54"
(Superseded to 683-0608B)

Variations

White Outdoor 683-0608A-0637

BRACKET ASSY-LIFT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-0608A-0650

BRACKET ASSY-LIFT - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-0608A-0665

BRACKET ASSY-LIFT - YARDMAN GREEN (0665)

$

$

Not available

$91.99

$

Usually ships in 3-6 days

0

7

White Outdoor 17255A

Bracket Assembly, LH-Front

Variations

White Outdoor 17255A-0637

BRACKET DECK L FRONT - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$14.99

$

Usually ships in 3-6 days

0

8

783-04394

Bracket Assembly, RH-Front

$

$

Not available

9

White Outdoor 703-3511

Guard, Finger
(Superseded to 703-3511B-0637)

Variations

White Outdoor 703-3511-0637

Finger Guard, Black - POWDER BLACK (0637)

$69.99

$

In Stock, Qty 20+

0

$69.99

$

In Stock, Qty 20+

0

10

White Outdoor 703-2093

Baffle, RR, Inner
(Superseded to 703-2093C)

Variations

White Outdoor 703-2093-0637

Inner Rear Baffle, Black - POWDER BLACK (0637)

$96.99

$

In Stock, only 2 left!

0

White Outdoor 703-2093-4008

Inner Rear Baffle, Black - WINE RED (4008)

$96.99

$

In Stock, only 2 left!

0

$89.99

$

Usually ships in 3-6 days

0

11

White Outdoor 710-0521

Screw, 3/8-16 x 3.00

$5.49

$

In Stock, Qty 11

0

12

White Outdoor 710-0599

Screw, 1/4-20 x.500

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 710-0216

Hex Screw 3/8-16 x 0.75

$4.49

$

In Stock, Qty 14

0

14

White Outdoor 710-04095

Hex Screw 3/8-16 x 1.0

$5.49

$

In Stock, Qty 20+

0

15

White Outdoor 710-0528

Hex Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 19

0

16

White Outdoor 710-1260A

LD Screw 5/16-18 x 0.75

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 710-0607

Screw, 5/16-18 x 0.500

$6.99

$

In Stock, Qty 9

0

18

White Outdoor 710-0623

Screw, 3/8-16 x.750

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 712-0206

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 710-3011

Hex Screw, 3/8-16 x 2.25

$6.99

$

In Stock, Qty 19

0

21

White Outdoor 710-3103

Hex Screw, 5/16-18 x 2.00

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 710-3168

Bolt, Carriage, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor 710-3178

Short Neck Carriage Bolt 3/8-16 x.75

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 711-0332

Pin, Clevis,.50 Dia x.78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 14

0

25

White Outdoor 711-1737

Pin, Roller,.5" Dia x 10.06.

$25.99

$

In Stock, Qty 6

0

26

White Outdoor 711-04565

Pin, Hinge, Dia.3125

$15.99

$

In Stock, only 3 left!

0

27

White Outdoor 712-0229

Push Nut Retainer

$3.99

$

In Stock, Qty 20+

0

28

White Outdoor 712-0417A

Nut, Hex Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

29

White Outdoor 712-04065

Nut, Lock, Flange, 3/8-16

$3.99

$

In Stock, Qty 20+

0

30

White Outdoor 712-0641

Hex Nut M16

$6.49

$

In Stock, Qty 7

0

31

White Outdoor 712-04063

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor 712-3010

Nut, Hex, 5/16-18, Gr5

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 712-3022

Nut, Hex Lock, 1/2-13

$3.99

$

In Stock, Qty 20+

0

34

White Outdoor 712-3083

Hex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

35

White Outdoor 714-0145

Pin, Click,.092 x 1.64

$4.99

$

In Stock, Qty 20+

0

36

White Outdoor 714-0470

Pin, Cotter, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 714-0111

Pin, Cotter, 3/32 x 1.00

$4.99

$

In Stock, Qty 13

0

38

White Outdoor 715-0108

Pin, Spring 1/4 Dia x 1.00

$4.99

$

In Stock, Qty 15

0

39

White Outdoor 714-0162

Cotter Pin

$4.99

$

In Stock, Qty 20+

0

40

White Outdoor 717-04074

Adjustment, Deck, Gear
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 9

0

41

White Outdoor 721-04041

Water Nozzle Adaptor
(Superseded to 921-04041)

$23.99

$

In Stock, Qty 20+

0

42

White Outdoor 747-1324

Rod, Deck Adjust

$58.99

$

In Stock, only 3 left!

0

43

White Outdoor 731-0335

Roller, Deck

$72.99

$

In Stock, Qty 11

0

44

White Outdoor 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

45

731-05559

Deflector, Chute

$

$

Not available

46

White Outdoor 732-0306A

Spring, Compression,.406 x.531 x 1.75
(Superseded to 932-0306A)

$8.49

$

In Stock, only 2 left!

0

47

White Outdoor 732-0459B

Spring, Extension,.94 Dia x 6.74
(Superseded to 732-0459C)

$18.99

$

In Stock, only 3 left!

0

48

White Outdoor 732-0971

Spring, Extension, 1.010 Dia x 6.500

$23.99

$

In Stock, only 1 left!

0

49

White Outdoor 732-3070

Torsion Spring.44 I.d. x 2.10
(Superseded to 732-3070A)

$11.99

$

In Stock, only 4 left!

0

50

White Outdoor 734-04155

Deck Wheel, 5" Dia.

$20.99

$

In Stock, Qty 20+

0

51

White Outdoor 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

52

White Outdoor 703-3279

Deflector Chute Stop

Variations

White Outdoor 703-3279-0606

Chute Deflector Stop - MAJESTIC ORANGE (0606)

$40.99

$

In Stock, only 1 left!

0

White Outdoor 703-3279-0650

Chute Deflector Stop - RED METALLIC (0650)

$40.99

$

In Stock, only 1 left!

0

White Outdoor 703-3279-4033

Chute Deflector Stop - FLINT MICA (4033)

$40.99

$

In Stock, only 1 left!

0

White Outdoor 703-3279-0637

STOP-CHUTE DEFLECTOR - POWDER BLACK (0637)

$40.99

$

In Stock, only 1 left!

0

White Outdoor 703-3279-0638

STOP-CHUTE DEFLECTOR - MTD/TROY-BILT RED (0638)

$40.99

$

In Stock, only 1 left!

0

White Outdoor 703-3279-0665

STOP-CHUTE DEFLECTOR - YARDMAN GREEN (0665)

$40.99

$

In Stock, only 1 left!

0

White Outdoor 703-3279-0691

STOP-CHUTE DEFLECTOR - BLACK JACK (0691)

$40.99

$

In Stock, only 1 left!

0

White Outdoor 703-3279-4008

STOP-CHUTE DEFLECTOR - WINE RED (4008)

$40.99

$

In Stock, only 1 left!

0

White Outdoor 703-3279-4028

STOP-CHUTE DEFLECTOR - SEARS YELLOW (4028)

$40.99

$

In Stock, only 1 left!

0

White Outdoor 703-3279-4044

STOP-CHUTE DEFLECTOR - CRAFTSMAN RED (4044)

$40.99

$

In Stock, only 1 left!

0

$40.99

$

In Stock, only 1 left!

0

53

White Outdoor 783-04462

Lift Bracket
(Superseded to 783-04462A)

$10.99

$

Usually ships in 3-6 days

0

54

White Outdoor 736-0760

Lock Washer

$4.49

$

In Stock, Qty 7

0

55

White Outdoor 736-0921

Lock Washer

$4.49

$

In Stock, Qty 6

0

56

White Outdoor 750-04597

Spacer,.380 x.900 x 1.313

$

$

Not available

57

White Outdoor 736-0300

Washer, Flat.406 x.875 x.059

$4.49

$

In Stock, Qty 20+

0

58

White Outdoor 737-04003C

Water Nozzle: Deck Wash-Out System
(Superseded to 737-04003D)

$23.99

$

In Stock, Qty 6

0

59

White Outdoor 738-0295

Shaft,.750 x.47.12

$124.99

$

In Stock, only 2 left!

0

60

White Outdoor 738-1229A

Shoulder Screw

$12.99

$

In Stock, Qty 5

0

61

White Outdoor 738-3056

Shoulder Screw
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

62

White Outdoor 742-0677

Blade, 18.50"
(Superseded to 942-0677B)

$30.99

$

In Stock, Qty 20+

0

63

White Outdoor 747-1116

Deck Release Handle Rod,.375 Dia

$12.99

$

In Stock, Qty 6

0

64

White Outdoor 750-0151

Spacer.550 ID x.755 OD x 1.1
(Superseded to 950-0151)

$10.99

$

In Stock, Qty 20+

0

65

White Outdoor 750-0212

Spacer,.82 ID x 1.00 OD x.53

$10.99

$

In Stock, Qty 18

0

67

White Outdoor 754-0642

Belt, V-Type, B Section
(Superseded to 954-0642)

$82.99

$

In Stock, Qty 7

0

68

White Outdoor 756-04129

Pulley, Idler, 4.25 Dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

69

White Outdoor 783-04013A

Bracket, Stabilizing

Variations

White Outdoor 783-04013A-0637

Stabilizer Bracket - POWDER BLACK (0637)

$22.99

$

In Stock, only 1 left!

0

White Outdoor 783-04013A-4008

Stabilizer Bracket - WINE RED (4008)

$22.99

$

In Stock, only 1 left!

0

$17.99

$

Usually ships in 3-6 days

0

70

White Outdoor 683-04113A

Deck Assembly
(Superseded to 983-04113B)

Variations

White Outdoor 683-04113A-0716

SHELL-54" DECK - CUB YELLOW-99 (0716)

$1098.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04113A-0637

SHELL-54" DECK - POWDER BLACK (0637)

$1098.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04113A-0650

DECK-54" - RED METALLIC (0650)

$1098.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04113A-0665

DECK SHELL 54" GREEN - YARDMAN GREEN (0665)

$1098.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04113A-0668

SHELL-54" DECK - MOSS GREEN (0668)

$

$

Not available

White Outdoor 683-04113A-4008

SHELL-54" DECK - WINE RED (4008)

$

$

Not available

$1027.99

$

Usually ships in 3-6 days

0

71

783-04534

Bracket, Mounting, 54" Roller

$

$

Not available

72

White Outdoor 783-1454B

Bracket, Roller, Front
(Superseded to 783-1454D)

Variations

White Outdoor 783-1454B-0637

Front Roller Bracket - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1454B-0650

BRACKET-FRONT ROLLER - RED METALLIC (0650)

$57.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1454B-4008

BRACKET-FRONT ROLLER - WINE RED (4008)

$57.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1454B-0665

BRACKET-FRONT ROLLER - YARDMAN GREEN (0665)

$57.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

73

White Outdoor 783-04726

Bracket, Idler

Variations

White Outdoor 783-04726-0637

Idler Pulley Bracket - POWDER BLACK (0637)

$36.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04726-4008

BRACKET-IDLER PULLEY - WINE RED (4008)

$29.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

74

White Outdoor 783-1470A

Cover, Spindle RH

Variations

White Outdoor 783-1470A-0606

COVER-SPINDLE RH - MAJESTIC ORANGE (0606)

$86.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1470A-0637

Spindle Cover, RH - POWDER BLACK (0637)

$107.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1470A-0665

COVER-SPINDLE RH - YARDMAN GREEN (0665)

$107.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1470A-0716

COVER-SPINDLE RH - CUB YELLOW-99 (0716)

$107.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1470A-4021

Spindle Cover, RH - CUB YELLOW 2 (4021)

$107.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1470A-4028

Spindle Cover, RH - SEARS YELLOW (4028)

$107.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1470A-0691

COVER-SPINDLE RH - BLACK JACK (0691)

$107.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1470A-4008

COVER-SPINDLE RH - WINE RED (4008)

$86.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1470A-4044

COVER-SPINDLE RH - CRAFTSMAN RED (4044)

$86.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1470A-0650

COVER-SPINDLE RH - RED METALLIC (0650)

$

$

Not available

$86.99

$

Usually ships in 3-6 days

0

75

White Outdoor 783-1471

Cover, Spindle LH
(Superseded to 783-1471A)

Variations

White Outdoor 783-1471-0606

COVER-SPINDLE LH - MAJESTIC ORANGE (0606)

$80.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1471-0637

Spindle Cover, LH - POWDER BLACK (0637)

$80.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1471-0650

COVER-SPINDLE LH - RED METALLIC (0650)

$80.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1471-0716

COVER-SPINDLE LH - CUB YELLOW-99 (0716)

$80.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1471-4021

Spindle Cover, LH - CUB YELLOW 2 (4021)

$80.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1471-4028

Spindle Cover, LH - SEARS YELLOW (4028)

$80.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1471-0665

COVER-SPINDLE LH - YARDMAN GREEN (0665)

$80.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1471-0691

COVER-SPINDLE LH - BLACK JACK (0691)

$80.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1471-4008

COVER-SPINDLE LH - WINE RED (4008)

$80.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

76

White Outdoor 783-04690

Deck Skirt
(Superseded to 783-04690B-0637)

Variations

White Outdoor 783-04690-0637

Deck Skirt, 54" Black - POWDER BLACK (0637)

$42.99

$

In Stock, only 3 left!

0

White Outdoor 783-04690-4008

Deck Skirt, 54" Black - WINE RED (4008)

$42.99

$

In Stock, only 3 left!

0

$42.99

$

In Stock, only 3 left!

0

77

White Outdoor 783-05030

Bracket, Deflector Chute

$29.99

$

In Stock, Qty 5

0

78

White Outdoor 750-0933

Spacer,.385 ID x.88 x.64

$3.99

$

In Stock, Qty 8

0
