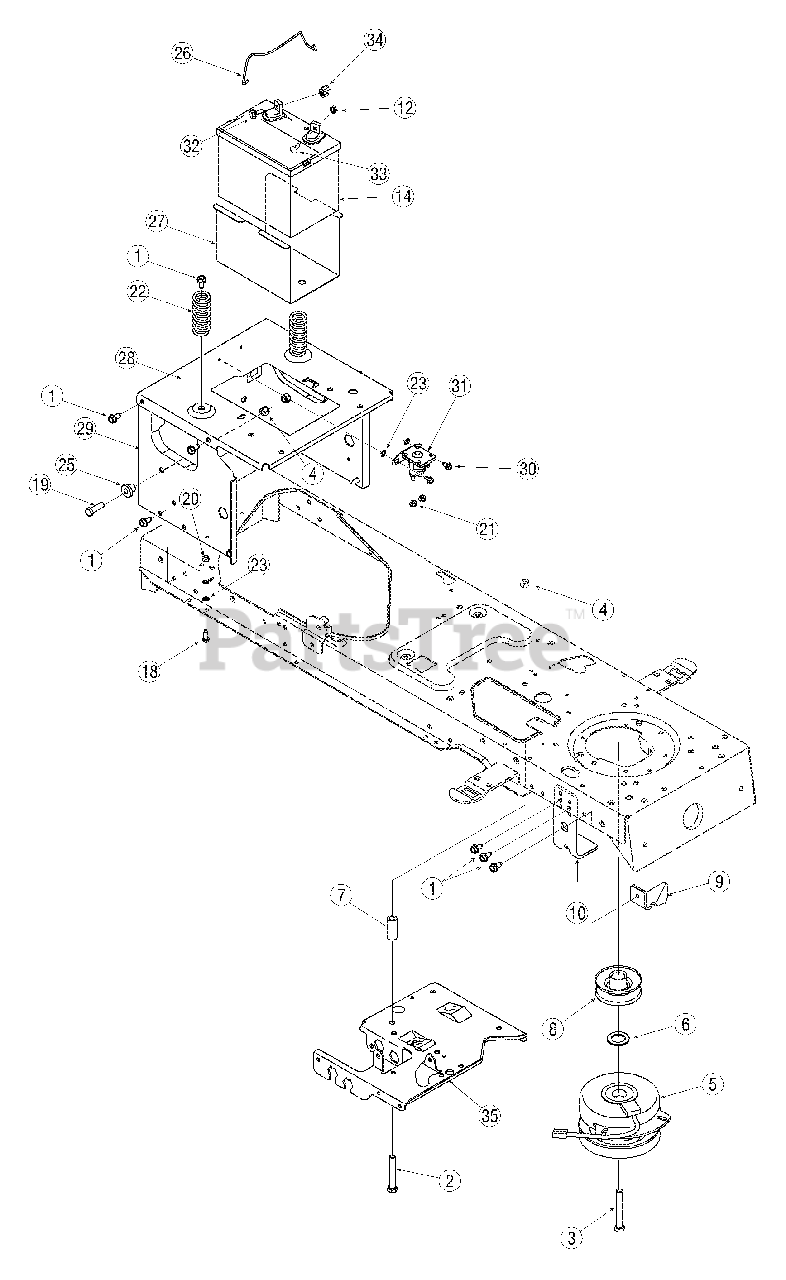

GT-950 H (14A9816P790) - White Outdoor 50" Garden Tractor (2005) PTO & Battery Parts Diagram

50" Garden Tractor

PTO & Battery Parts Diagram

  • Title

1

White Outdoor 710-0726

Screw, 5/16-12, 0.75

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 710-0859

Screw, 3/8-16, 2.50, Gr5

$6.99

$

In Stock, Qty 17

0

3

White Outdoor 710-3157A

Screw, 7/16-20, 3.25, Gr5, Lock

$10.99

$

In Stock, Qty 20+

0

4

White Outdoor 712-04065

Nut, Flange Lock, 3/8-16, Gr F, Nylon

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 717-04174

PTO Clutch, Electric
(Superseded to 917-04174A)

$679.99

$

Usually ships in 3-6 days

0

6

White Outdoor 736-0277

Washer, Flat, 1.031 x 1.620 x.095

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 748-0415B

Spacer, .385 ID x .635 OD x 1.54

$7.49

$

In Stock, Qty 10

0

8

White Outdoor 756-0978A

Pulley, Engine, 3.56 Diameter
(Superseded to 756-0978B)

$66.99

$

In Stock, Qty 13

0

9

White Outdoor 783-04419A

Clutch Bracket
(Superseded to 783-04419B-0637)

Variations

White Outdoor 783-04419A-0637

Clutch Bracket - POWDER BLACK (0637)

$14.99

$

In Stock, only 4 left!

0

$14.99

$

In Stock, only 4 left!

0

10

White Outdoor 783-04467

Deck Bracket, Up-Stop

Variations

White Outdoor 783-04467-0606

BRACKET-DECK:UP STOP - MAJESTIC ORANGE (0606)

$37.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04467-0637

Deck Up-Stop Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04467-0691

Deck Up-Stop Bracket - BLACK JACK (0691)

$37.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04467-0650

BRACKET-DECK:UP STOP - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-04467-0665

BRACKET-DECK:UP STOP - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-04467-0716

BRACKET-DECK:UP STOP - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-04467-4008

BRACKET-DECK:UP STOP - WINE RED (4008)

$

$

Not available

$34.99

$

Usually ships in 3-6 days

0

11

White Outdoor 710-0703

Screw, Carriage, 1/4-20, .75, Gr5

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 19

0

13

White Outdoor 712-3087

Nut, Wing, 1/4-20

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 725-1750A

Battery, 235 CCA
(Superseded to 925-1707D)

$

$

Not available

15

White Outdoor 738-1132

Screw, Shoulder, .250 x .150, 1/4-20

$5.49

$

In Stock, only 2 left!

0

16

White Outdoor 683-04173

Frame Assembly, Lower
(Superseded to 683-04173B-0637)

Variations

White Outdoor 683-04173-0637

FRAME ASSY-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

17

White Outdoor 710-0607

Screw, 5/16-18, 0.500

$6.99

$

In Stock, Qty 9

0

18

White Outdoor 710-0642

Screw, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 710-3005

Screw, 3/8-16, 1.25, Gr5

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 712-04064

Nut, Flange Lock, 1/4-20, Gr F, Nylon

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 712-3006

Nut, Hex, 1/4-20, Gr5

$4.99

$

In Stock, Qty 17

0

22

White Outdoor 732-04035

Spring, Compression, 1.28 OD x 3.125

$10.99

$

In Stock, only 3 left!

0

23

White Outdoor 736-0222

Washer, Lock, 1/4, External

$5.99

$

In Stock, only 3 left!

0

24

White Outdoor 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

25

White Outdoor 738-04058

Spacer, Shoulder, .38 x 1.0 x .70

$4.49

$

In Stock, only 1 left!

0

26

White Outdoor 747-04121A

Hold Rod, Battery

$6.49

$

In Stock, Qty 20+

0

27

White Outdoor 783-0349

Battery Tray

Variations

White Outdoor 783-0349-4008

TRAY-BATTERY 400 S - WINE RED (4008)

$

$

Not available

White Outdoor 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

28

White Outdoor 783-04329A

Seat Bracket, Frame

Variations

White Outdoor 783-04329A-0606

BRACKET-FRAME SEAT - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-04329A-0637

BRACKET-FRAME SEAT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-04329A-0716

BRACKET-FRAME SEAT - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-04329A-4008

BRACKET-FRAME SEAT - WINE RED (4008)

$

$

Not available

$

$

29

White Outdoor 783-04376A

Frame, Upper
(Superseded to 783-04811C-0637)

Variations

White Outdoor 783-04376A-0606

FRAME-UPPER GT - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-04376A-0637

FRAME-UPPER GT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-04376A-0638

FRAME-UPPER GT - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-04376A-0650

FRAME-UPPER GT - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-04376A-0665

FRAME-UPPER GT - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-04376A-0691

FRAME-UPPER GT - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-04376A-0716

FRAME-UPPER GT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

30

White Outdoor 710-0599

Screw, 1/4-20, 0.50

$4.49

$

In Stock, Qty 20+

0

31

White Outdoor 725-1426

Solenoid, 12V, 100 Amp
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

32

White Outdoor 738-1132

Screw, Shoulder, .250 x .15, 1/4-20

$5.49

$

In Stock, only 2 left!

0

33

White Outdoor 710-0703

Screw, Carriage, 1/4-20, .75

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 712-3087

Nut, Wing, 1/4-20

$3.99

$

In Stock, Qty 20+

0

35

White Outdoor 783-04612

Support Bracket, Steering
(Superseded to 783-04612-0637)

Variations

White Outdoor 783-04612-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0
