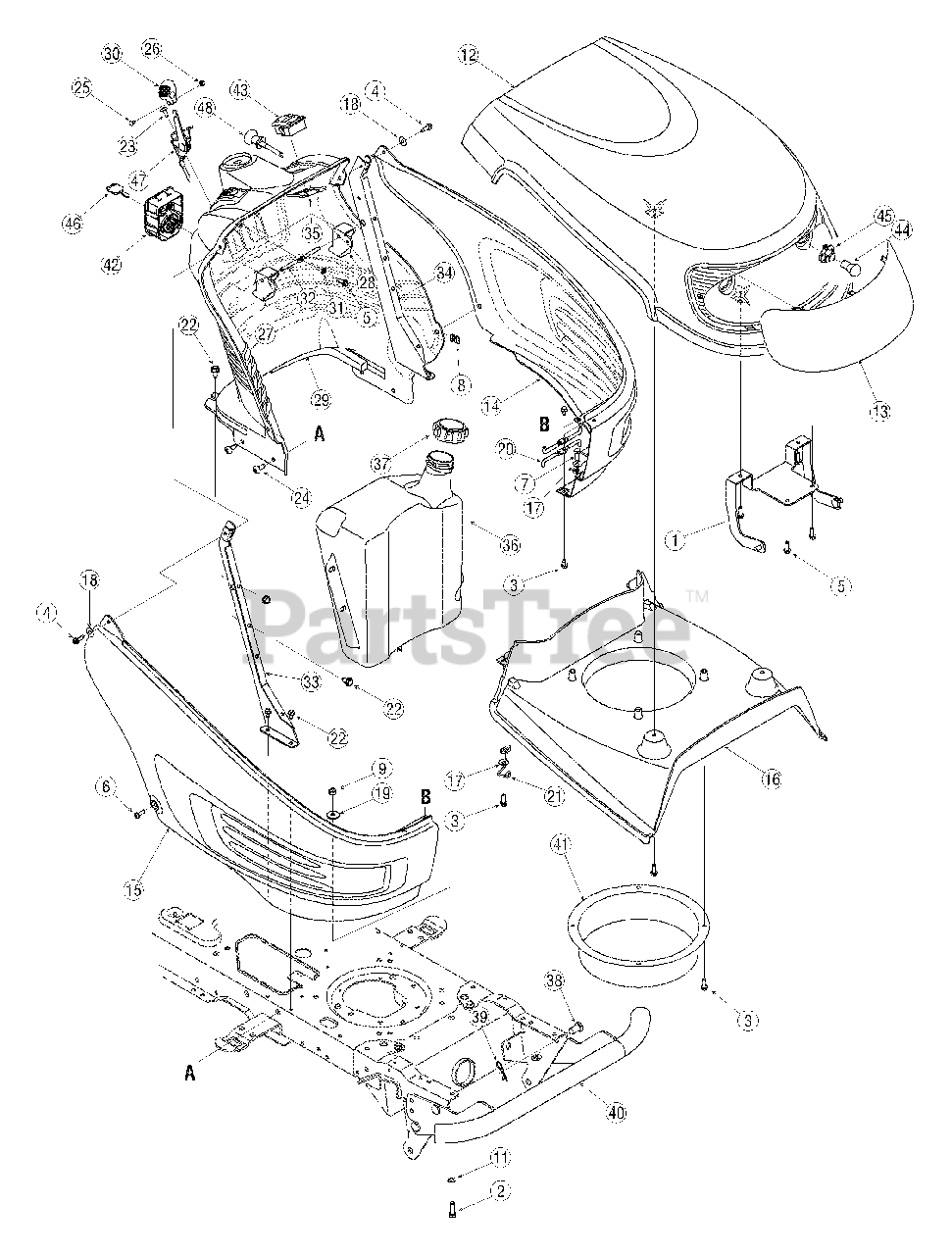

GT-950 H (14A9816P790) - White Outdoor 50" Garden Tractor (2005) Hood Parts Diagram

50" Garden Tractor

Hood Parts Diagram

  • Title

1

White Outdoor 683-0305

Bracket Assembly, Hood
(Superseded to 683-0305-0637)

Variations

White Outdoor 683-0305-0637

Hood Bracket Assembly, 6 ST - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 710-0376

Hex Screw, 5/16-18, 1.00, Gr5

$3.99

$

In Stock, only 4 left!

0

3

White Outdoor 710-0599

Screw, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-0642

Screw, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-0895

Screw, 1/4-15, 0.750

$6.49

$

In Stock, Qty 5

0

6

White Outdoor 710-0924

Screw, Machine, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-3015

Hex Screw, 1/4-20,.75, Gr5

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 712-0292

Nut, Clip, 1/4-20

$10.99

$

In Stock, only 2 left!

0

9

White Outdoor 712-04063

Nut, Flange Lock, 5/16-18, Grf, Nylon

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 712-04064

Nut, Flange Lock, 1/4-20, Grf, Nylon

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 726-0201

Nut, Speed, .3125 ID

$6.99

$

Usually ships in 3-6 days

0

12

White Outdoor 731-2283A

Hood
(Superseded to 931-2283A)

$

$

Not available

13

White Outdoor 731-2286

Lens
(Superseded to 931-2286)

$

$

Not available

14

White Outdoor 731-2307B

Side Panel, LH
(Superseded to 931-05473)

$141.99

$

In Stock, only 1 left!

0

15

White Outdoor 731-2308B

Side Panel, RH
(Superseded to 931-2308B)

$135.99

$

In Stock, only 1 left!

0

16

White Outdoor 731-2284

Hood Plenum

$63.99

$

Usually ships in 3-6 days

0

17

White Outdoor 736-0173

Washer, Flat, .28 x .74 x .063

$4.49

$

In Stock, only 4 left!

0

18

White Outdoor 736-0342

Washer, Flat, .283 x .75 x .030

$7.49

$

Usually ships in 3-6 days

0

19

White Outdoor 736-3078

Washer, Flat, .344 x 1.0 x .063

$4.49

$

In Stock, only 4 left!

0

20

White Outdoor 747-04301

Support, Side Panel

$

$

Not available

21

White Outdoor 747-2127

Rod, Hood Latch

$12.99

$

Usually ships in 3-6 days

0

22

White Outdoor 710-0726

Screw, 5/16-12, 0.750

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 710-1017

Screw, 1/4-14, 0.625

$8.49

$

In Stock, Qty 9

0

24

White Outdoor 710-1611B

Screw, 5/16-18, 0.750

$6.99

$

In Stock, only 2 left!

0

25

White Outdoor 710-3217

Screw, Machine, #8-32, 0.375

$6.99

$

In Stock, Qty 7

0

26

White Outdoor 712-0142

Nut, Hex, #8-32

$4.49

$

In Stock, Qty 9

0

27

White Outdoor 731-04213

Brake Lever

$12.99

$

Usually ships in 3-6 days

0

28

White Outdoor 731-04214

Cruise Control Lever

$

$

Not available

29

White Outdoor 731-05037

Dash Panel (Models w/ Electric PTO)

$

$

Not available

30

White Outdoor 731-1857

Control Knob

$14.99

$

In Stock, only 4 left!

0

31

White Outdoor 736-0142

Washer, Flat, .281 x .50 x .063

$4.99

$

In Stock, only 4 left!

0

32

White Outdoor 747-1155

Rod, Brake / Cruise Pivot

$13.99

$

Usually ships in 3-6 days

0

33

White Outdoor 783-04285B

Support Plate, Dash, RH
(Superseded to 783-04285F-0637)

Variations

White Outdoor 783-04285B-0637

SUPPORT-DASH PLATE - POWDER BLACK (0637)

$

$

Not available

$

$

34

White Outdoor 783-04323B

Support Plate, Dash, LH
(Superseded to 783-04323F-0637)

Variations

White Outdoor 783-04323B-0637

SUPPORT-DASH PLATE - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

35

White Outdoor 783-0462

Retainer Bracket, PTO Switch

$

$

Not available

36

White Outdoor 751-0658E

Fuel Tank, 3 Gal.

$115.99

$

In Stock, only 2 left!

0

37

White Outdoor 751-0603

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 2 left!

0

38

White Outdoor 711-0332

Pin, Clevis, .50 x .78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 16

0

39

White Outdoor 714-0145

Pin, Click, .092 x 1.64

$4.99

$

In Stock, Qty 20+

0

40

White Outdoor 768-0010B

Bumper
(Superseded to OEM-190-679)

$92.99

$

Usually ships in 3-6 days

0

41

White Outdoor 731-2234A

Bellow

$29.99

$

Usually ships in 3-6 days

0

42

White Outdoor 725-04227

Ignition Switch Module
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

43

White Outdoor 725-04036A

Systems Indicator Monitor w/ Hour Meter
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

44

White Outdoor 725-0963

Miniature Lamp, 12V
(Superseded to 925-0963)

$7.49

$

In Stock, only 4 left!

0

45

White Outdoor 725-1649

Socket, Lamp
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

46

White Outdoor 725-1744

Key, Ignition
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

White Outdoor 725-1745

Key w/ Plastic Cover, Ignition
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

47

White Outdoor 746-1086

Throttle Cable, 39"
(Superseded to 946-1086)

$33.99

$

In Stock, only 1 left!

0

48

White Outdoor 746-1085A

Choke Knob w/ Cable, 37.5"
(Superseded to 946-1085A)

$30.99

$

In Stock, only 1 left!

0

White Outdoor 629-04083

Headlight Wire Harness
(Superseded to 929-04083B)

Note: (Not pictured)

$39.99

$

Usually ships in 3-6 days

0

White Outdoor 629-04104

Tractor Wire Harness

Note: (Not pictured)

$

$

Not available

White Outdoor 735-04023

Cargo Net

Note: (Not pictured)

$

$

Not available

White Outdoor 726-04029

Ratchet Clip

Note: (Not pictured)

$3.99

$

Usually ships in 3-6 days

0
