GT-950 H (14A9816P790) - White Outdoor 50" Garden Tractor (2005) Fender & Seat Parts Diagram

50" Garden Tractor

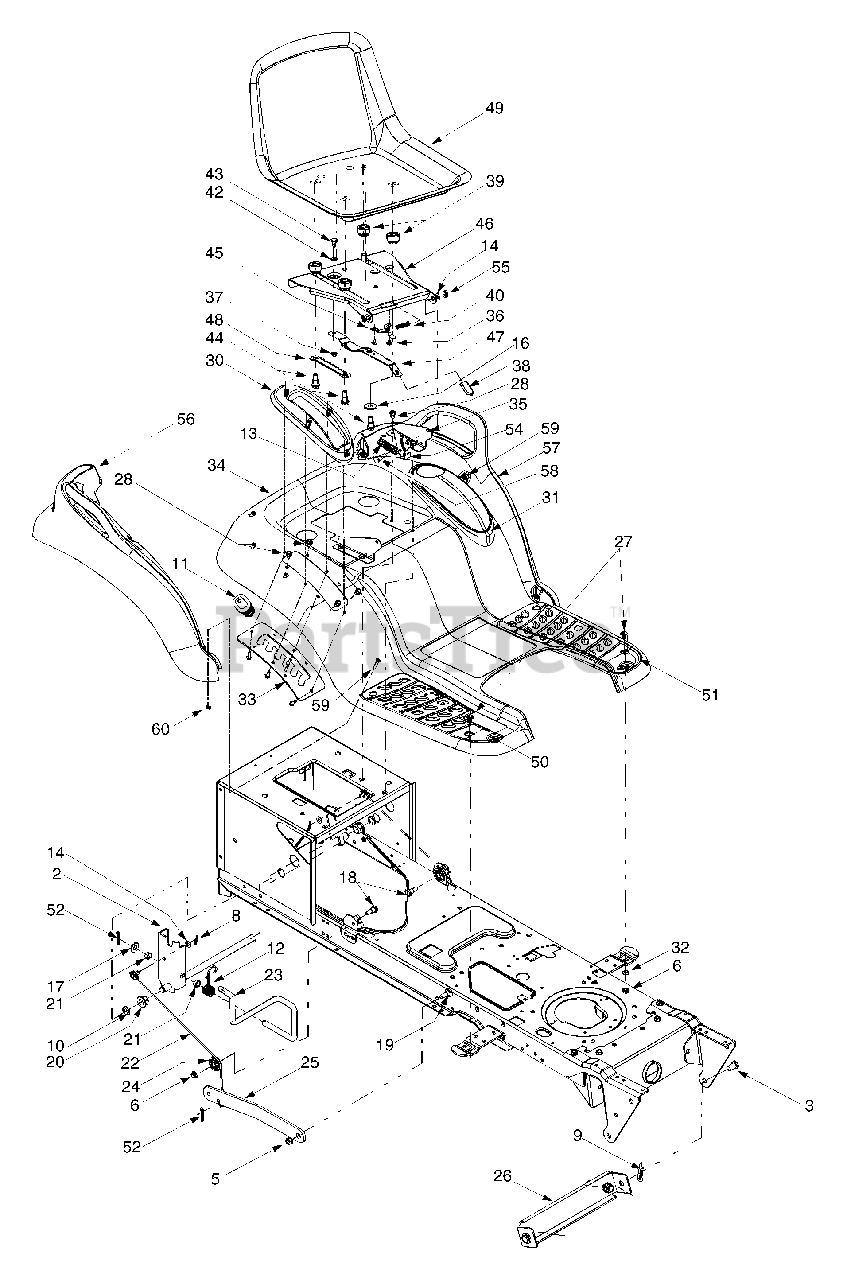

Fender & Seat Parts Diagram

  • Title

2

White Outdoor 753-06260

Lift Shaft Assembly Service Kit

Note: Replaces 683-04079

$57.99

$

Usually ships in 3-6 days

0

3

White Outdoor 711-0332

Clevis Pin,.5 x.78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 12

0

4

White Outdoor 712-0206

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 714-04023

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 716-0106A

E-Ring

$5.49

$

In Stock, only 2 left!

0

11

White Outdoor 720-0311

Handle Grip

$15.99

$

In Stock, only 1 left!

0

12

White Outdoor 732-0874

Torsion Spring

$4.99

$

In Stock, Qty 6

0

13

White Outdoor 732-1184

Extension Spring,.84 x 4.6

$11.99

$

In Stock, only 1 left!

0

14

White Outdoor 736-0275

Flat Washer, 5/16

$6.99

$

Usually ships in 3-6 days

0

16

White Outdoor 736-3019

Flat Washer,.31 x 1.062 x.134

$5.99

$

In Stock, Qty 11

0

17

White Outdoor 736-3084

Flat Washer,.51 x 1.12 x.06

$4.99

$

In Stock, Qty 20+

0

18

White Outdoor 738-0138A

Hex Cap Screw, 5/16-18 x.62

$6.99

$

In Stock, only 2 left!

0

19

White Outdoor 738-0380

Shoulder Screw, 3/8-16

$7.99

$

Usually ships in 3-6 days

0

20

White Outdoor 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

21

White Outdoor 741-0715

Snap Flange Bearing
(Superseded to 941-0715)

$

$

Not available

22

White Outdoor 746-0968

Lift Cable, 16.16

$19.99

$

In Stock, Qty 20+

0

23

White Outdoor 747-04155

Lift Handle

$

$

Not available

24

White Outdoor 756-1154

Roller Pulley

$7.99

$

In Stock, only 2 left!

0

25

White Outdoor 783-0678A

Arm Lift
(Superseded to 783-0678C)

Variations

White Outdoor 783-0678A-0637

Lift Deck Link - POWDER BLACK (0637)

$29.99

$

In Stock, only 1 left!

0

White Outdoor 783-0678A-4008

LINK-LIFT DECK - WINE RED (4008)

$29.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

26

White Outdoor 783-0720A

Deck Stabilizer Bracket
(Superseded to 783-0720C)

Variations

White Outdoor 783-0720A-0637

Deck Adjustment Bracket, Front - POWDER BLACK (0637)

$45.99

$

In Stock, only 2 left!

0

White Outdoor 783-0720A-4008

BRACKET-ADJ:FRT DE - WINE RED (4008)

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

27

White Outdoor 710-0260A

Carriage Bolt, 5/16 x.62

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 710-0726

Self-tapping Screw, 5/16-18 x.625

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 710-0895

Self-tapping Screw, 1/4-15 x.75

$6.49

$

In Stock, Qty 9

0

30

White Outdoor 731-1990

Lift Lever Cover
(Superseded to 731-06795)

$24.99

$

Usually ships in 3-6 days

0

31

White Outdoor 731-1993A

Cover w/ Cup Holder

$25.99

$

Usually ships in 3-6 days

0

32

White Outdoor 736-3078

Flat Washer,.349 x 1.0 x.063

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 783-0677

Lift Adjustment Bracket
(Superseded to 783-0677B-0637)

Variations

White Outdoor 783-0677-0637

BRACKET:LIFT:ADJ - POWDER BLACK (0637)

$

$

Not available

$

$

34

White Outdoor 783-04459A

Fender 4 Sty Hydro w/ Flares

Variations

White Outdoor 783-04459A-0606

FENDER-HYDRO 4-STY - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-04459A-0650

FENDER-HYDRO 4-STY - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-04459A-0665

FENDER-HYDRO 4-STY - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-04459A-4008

FENDER-HYDRO 4-STY - WINE RED (4008)

$

$

Not available

$

$

35

White Outdoor 783-1489A

Seat Mounting Bracket
(Superseded to 783-1489C)

Variations

White Outdoor 783-1489A-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

White Outdoor 783-1489A-4008

Seat Mounting Bracket - WINE RED (4008)

$21.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

36

White Outdoor 710-1268

Screw, #10-16 x.375

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 720-0309A

Seat Adjuster Grip

$9.49

$

Usually ships in 3-6 days

0

39

White Outdoor 731-04074

Spacer

$7.49

$

In Stock, Qty 20+

0

40

White Outdoor 732-0499

Compression Spring,.41 x 1.5

$9.49

$

In Stock, only 1 left!

0

42

White Outdoor 736-0204

Flat Washer,.344 x.62 x.03

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 738-0137A

Shoulder Screw,.340 x.285,1/4-20

$10.99

$

In Stock, Qty 10

0

44

White Outdoor 738-0966

Shoulder Screw,.50 x.50, 3/8-16
(Superseded to 738-0966A)

$4.99

$

In Stock, Qty 19

0

45

White Outdoor 783-0611

Seat Stop

$10.99

$

In Stock, only 3 left!

0

46

White Outdoor 783-0738B

Seat Pivot Bracket
(Superseded to 783-0738D)

Variations

White Outdoor 783-0738B-0716

Seat Pivot Bracket - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-0738B-0638

Seat Pivot Bracket - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0738B-0650

BRACKET-PIVOT:SEAT - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0738B-0665

BRACKET-PIVOT:SEAT - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0738B-0691

Seat Pivot Bracket - BLACK JACK (0691)

$

$

Not available

$

$

47

White Outdoor 783-0739A

Seat Adjustment Lever
(Superseded to 783-0739A-0637)

Variations

White Outdoor 783-0739A-0637

Seat Adjust Lever - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

48

White Outdoor 783-0753

Seat Adjustment Selector

$15.99

$

In Stock, only 1 left!

0

49

White Outdoor 757-04015

High Back Seat, Black
(Superseded to 957-04015)

$

$

Not available

50

White Outdoor 735-0656

RH Foot Pad

$25.99

$

Usually ships in 3-6 days

0

51

White Outdoor 735-0657

LH Foot Pad

$26.99

$

Usually ships in 3-6 days

0

51

White Outdoor 726-3046

Foot Pad Clips

Note: Not shown

$3.99

$

In Stock, only 4 left!

0

52

White Outdoor 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0

54

White Outdoor 783-0209C

Seat Lift Bracket
(Superseded to 783-0209D)

$16.99

$

In Stock, only 1 left!

0

55

White Outdoor 726-0201

Speed Clip

$6.99

$

Usually ships in 3-6 days

0

56

White Outdoor 731-2618

RH Fender Flare

$

$

Not available

57

White Outdoor 731-2619

LH Fender Flare

$80.99

$

Usually ships in 3-6 days

0

58

White Outdoor 738-0296

Shoulder Screw,.437 x.286

$4.49

$

In Stock, Qty 20+

0

59

White Outdoor 710-0932

Carriage Screw 1/4-20 x 1.00
(Superseded to 710-0932A)

$3.99

$

In Stock, only 4 left!

0

60

White Outdoor 712-0271

Sems Nut 1/4-20

$4.49

$

In Stock, Qty 19

0
