GT-950 H (14A9816P790) - White Outdoor 50" Garden Tractor (2005) Deck Assembly Parts Diagram

50" Garden Tractor

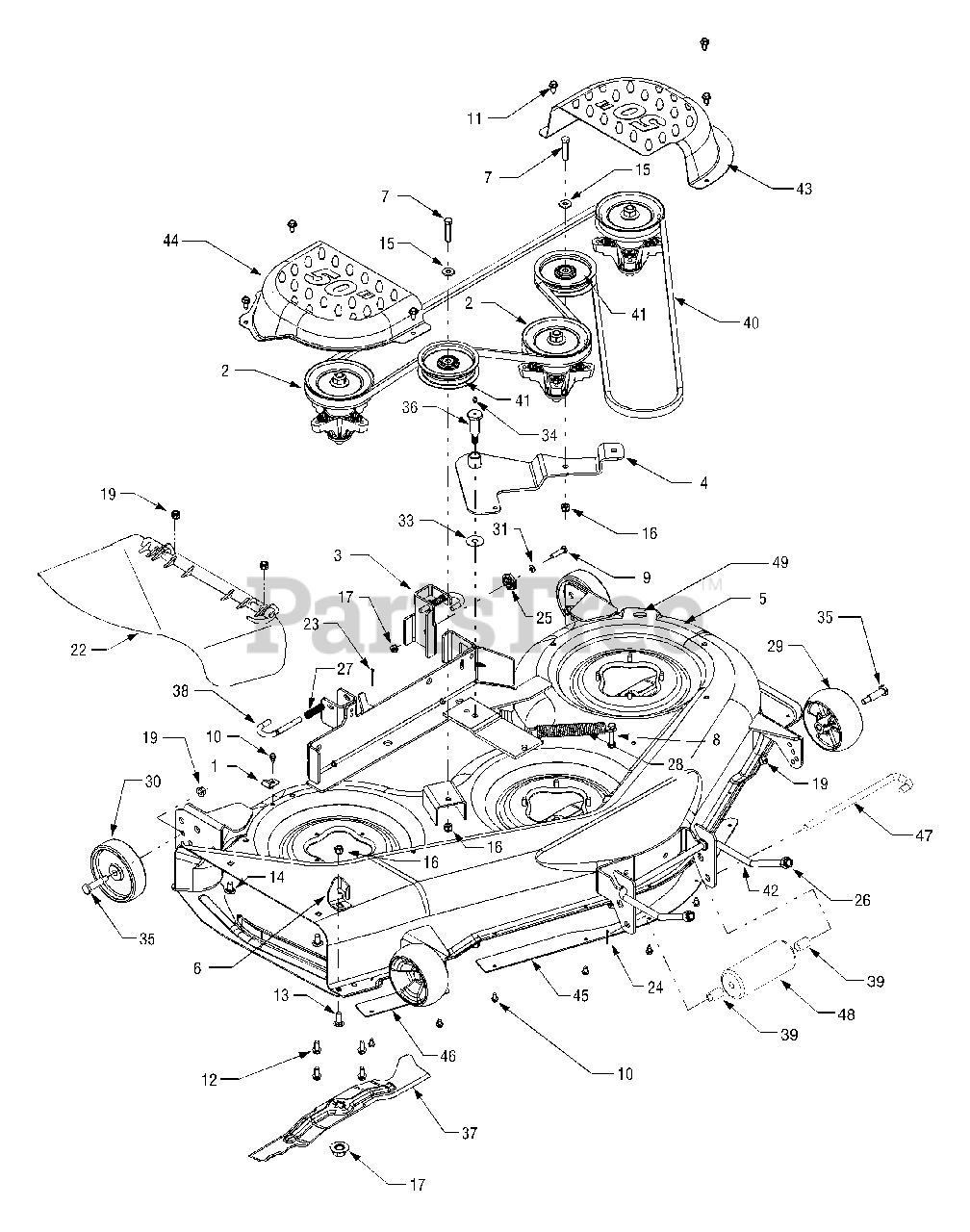

Deck Assembly Parts Diagram

  • Title

1

White Outdoor 16606

Hook, Retainer
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

2

White Outdoor 618-04126

Spindle Assembly
(Superseded to 918-04125C)

$133.99

$

In Stock, Qty 20+

0

White Outdoor 756-1171

Pulley, 5.39"

$39.99

$

In Stock, only 3 left!

0

White Outdoor 741-0919

Ball Bearing, .787 x 1.85 x .551
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

White Outdoor 738-1010A

Shaft, Spindle, 5.75

$46.99

$

In Stock, only 2 left!

0

White Outdoor 750-1349

Spacer, 79 x 1.84 x .55 lower
(Superseded to 750-1349A)

$13.99

$

In Stock, only 3 left!

0

White Outdoor 736-0315

Washer, Flat, .760 x 1.5 x .120

$6.99

$

In Stock, Qty 6

0

White Outdoor 712-0417A

Nut, Hex, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

3

White Outdoor 683-0254B

Hanger Bracket Assembly

Variations

White Outdoor 683-0254B-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-4021

Deck Bracket Assembly, LH - CUB YELLOW 2 (4021)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-4033

Deck Bracket Assembly, LH - FLINT MICA (4033)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-4044

Deck Bracket Assembly, LH - CRAFTSMAN RED (4044)

$49.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-0606

Deck Bracket Assembly, LH - MAJESTIC ORANGE (0606)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-0638

Deck Bracket Assembly, LH - MTD/TROY-BILT RED (0638)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-0650

BRACKET ASSY-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-0665

BRACKET ASSY-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-4008

BRACKET ASSY-DECK LH - WINE RED (4008)

$46.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-0709

BRACKET ASSY-DECK LH - MASTERCRAFT GREEN (0709)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-4028

BRACKET ASSY-DECK LH - SEARS YELLOW (4028)

$36.99

$

In Stock, only 1 left!

0

$46.99

$

Usually ships in 3-6 days

0

4

White Outdoor 683-04098

Idler Bracket

Variations

White Outdoor 683-04098-0637

Idler Assembly, 50" Deck - POWDER BLACK (0637)

$44.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04098-4008

IDLER ASSY-DECK 50" - WINE RED (4008)

$44.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

5

White Outdoor 683-04109B

Weldment, 50-inch Deck

Variations

White Outdoor 683-04109B-4008

DECK ASSY - WINE RED (4008)

$725.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04109B-0637

DECK ASSY-50" SD GT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-04109B-0650

DECK ASSY-50" SD GT - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-04109B-0716

DECK ASSY-50" SD GT - CUB YELLOW-99 (0716)

$

$

Not available

$648.99

$

Usually ships in 3-6 days

0

6

White Outdoor 703-3279

Chute Stop

Variations

White Outdoor 703-3279-0606

Chute Deflector Stop - MAJESTIC ORANGE (0606)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3279-0650

Chute Deflector Stop - RED METALLIC (0650)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3279-4033

Chute Deflector Stop - FLINT MICA (4033)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3279-0637

STOP-CHUTE DEFLECTOR - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3279-0638

STOP-CHUTE DEFLECTOR - MTD/TROY-BILT RED (0638)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3279-0665

STOP-CHUTE DEFLECTOR - YARDMAN GREEN (0665)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3279-0691

STOP-CHUTE DEFLECTOR - BLACK JACK (0691)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3279-4008

STOP-CHUTE DEFLECTOR - WINE RED (4008)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3279-4028

STOP-CHUTE DEFLECTOR - SEARS YELLOW (4028)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3279-4044

STOP-CHUTE DEFLECTOR - CRAFTSMAN RED (4044)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

7

White Outdoor 710-0347

Screw, 3/8-16, 1.75

$5.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-3103

Screw, 5/16-18 x 2.00

$4.49

$

In Stock, only 4 left!

0

9

White Outdoor 710-0528

Screw, 5/16-18, 1.25, Gr5

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-0599

Screw, 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 710-0607

Screw, 5/16-18 x.625

$6.99

$

In Stock, Qty 11

0

12

White Outdoor 710-1260A

Screw, 5/16-18 x.75

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 710-3168

Screw, Carriage, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 710-3178

Screw, Carriage, 3/8-16 x.75

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 736-0300

Washer, Flat,.406 x.875 x.059

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 712-04065

Nut, Nylon Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 712-0417A

Nut, Hex, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

18

White Outdoor 712-04063

Nut, Nylon Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 712-0431

Nut, Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

20

White Outdoor 712-3010

Nut, Hex, 5/16-18, Gr5

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 712-3019

Nut, 7/16-14

$6.99

$

Usually ships in 3-6 days

0

22

White Outdoor 631-04070

Chute Assembly, Side Discharge
(Superseded to 631-04070C)

$122.99

$

In Stock, only 1 left!

0

23

White Outdoor 714-0470

Pin, Cotter, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 714-0111

Pin, Cotter, 3/32 x 1.25

$4.99

$

In Stock, Qty 13

0

25

White Outdoor 717-04074

Deck Adjustment Gear
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 20+

0

26

White Outdoor 712-3083

Lock Nut, Hex, 1/2-13, Nylon

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 732-0306A

Spring, Compression,.531 x 1.75
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

28

White Outdoor 732-0459B

Spring, Extension,.94 x 6.74
(Superseded to 732-0459C)

$18.99

$

In Stock, only 1 left!

0

29

White Outdoor 734-04039

Deck Wheel, 5.0
(Superseded to 753-04856A)

$20.99

$

In Stock, Qty 20+

0

30

White Outdoor 734-0973

Deck Wheel, 5.0

$12.99

$

In Stock, Qty 20+

0

31

White Outdoor 736-0119

Washer, Lock, 5/16, Regular Duty
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

32

White Outdoor 736-0407

Washer, Bell,.45 x 1.0 x.062

$3.99

$

In Stock, only 2 left!

0

33

White Outdoor 736-0406

Washer, Flat,.442 x 1.38 x.060
(Superseded to 936-0406)

$6.99

$

In Stock, only 1 left!

0

34

White Outdoor 737-3000

Fitting, Lube, 3/16
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

35

White Outdoor 738-0373

Shoulder Screw
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

36

White Outdoor 738-3005A

Screw, Shoulder,.68 x 1.59
(Superseded to 638-04012A)

$21.99

$

In Stock, Qty 7

0

37

White Outdoor 742-04053A

Blade
(Superseded to 942-04053C)

$28.99

$

In Stock, Qty 20+

0

38

White Outdoor 747-1116

Rod, Handle, Deck Release.375 Via

$12.99

$

Usually ships in 3-6 days

0

39

White Outdoor 750-0151

Spacer,.550 x.755 x 1.1
(Superseded to 950-0151)

$10.99

$

In Stock, Qty 20+

0

40

White Outdoor 754-04077

Belt, V-Type, Aramid
(Superseded to 954-04077A)

$82.99

$

In Stock, Qty 14

0

41

White Outdoor 756-04129

Pulley, Idler, 3.5"
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

42

White Outdoor 747-1324

Rod, Deck Adjustment

$58.99

$

In Stock, only 3 left!

0

43

White Outdoor 783-04399

LH Belt Cover

Variations

White Outdoor 783-04399-0637

Belt Cover, LH Black - POWDER BLACK (0637)

$95.99

$

In Stock, only 2 left!

0

White Outdoor 783-04399-0606

Belt Cover, LH Orange - MAJESTIC ORANGE (0606)

$95.99

$

In Stock, only 2 left!

0

White Outdoor 783-04399-0650

COVER-BELT LH - RED METALLIC (0650)

$95.99

$

In Stock, only 2 left!

0

White Outdoor 783-04399-0691

Belt Cover, LH Black - BLACK JACK (0691)

$95.99

$

In Stock, only 2 left!

0

White Outdoor 783-04399-0716

COVER-BELT LH - CUB YELLOW-99 (0716)

$95.99

$

In Stock, only 2 left!

0

White Outdoor 783-04399-4008

COVER-BELT LH - WINE RED (4008)

$71.99

$

In Stock, only 1 left!

0

White Outdoor 783-04399-4021

Belt Cover, LH Yellow - CUB YELLOW 2 (4021)

$95.99

$

In Stock, only 2 left!

0

White Outdoor 783-04399-4033

Belt Cover, LH Flint - FLINT MICA (4033)

$95.99

$

In Stock, only 2 left!

0

White Outdoor 783-04399-4044

COVER-BELT LH - CRAFTSMAN RED (4044)

$95.99

$

In Stock, only 2 left!

0

White Outdoor 783-04399-0638

COVER-BELT LH - MTD/TROY-BILT RED (0638)

$95.99

$

In Stock, only 2 left!

0

White Outdoor 783-04399-0665

COVER-BELT LH - YARDMAN GREEN (0665)

$

$

Not available

$95.99

$

In Stock, only 2 left!

0

44

White Outdoor 783-04400

RH Belt Cover

Variations

White Outdoor 783-04400-4021

Belt Cover, RH Yellow - CUB YELLOW 2 (4021)

$95.99

$

In Stock, Qty 5

0

White Outdoor 783-04400-0606

Belt Cover, RH Orange - MAJESTIC ORANGE (0606)

$95.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04400-0637

Belt Cover, RH Black - POWDER BLACK (0637)

$95.99

$

In Stock, Qty 5

0

White Outdoor 783-04400-0638

COVER-BELT RH - MTD/TROY-BILT RED (0638)

$95.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04400-0650

COVER-BELT RH - RED METALLIC (0650)

$88.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04400-4033

COVER-BELT RH - FLINT MICA (4033)

$95.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04400-0665

COVER-BELT RH - YARDMAN GREEN (0665)

$95.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04400-4008

COVER-BELT RH - WINE RED (4008)

$95.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04400-0691

Belt Cover, RH Black - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-04400-0716

COVER-BELT RH - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-04400-4044

COVER-BELT RH - CRAFTSMAN RED (4044)

$

$

Not available

$95.99

$

Usually ships in 3-6 days

0

45

White Outdoor 783-04414

Deck Skirt, Center
(Superseded to 783-04414A)

Variations

White Outdoor 783-04414-0637

Center Deck Skirt, 50" - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04414-4008

SKIRT-CENTER 50" - WINE RED (4008)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

46

White Outdoor 783-04415

Deck Skirt, RH

Variations

White Outdoor 783-04415-4021

Right Skirt for 50" Deck - CUB YELLOW 2 (4021)

$30.99

$

In Stock, only 1 left!

0

White Outdoor 783-04415-0606

Right Skirt for 50" Deck - MAJESTIC ORANGE (0606)

$30.99

$

In Stock, Qty 5

0

White Outdoor 783-04415-0637

Right Skirt for 50" Deck - POWDER BLACK (0637)

$30.99

$

In Stock, only 4 left!

0

White Outdoor 783-04415-0665

SKIRT-RH 50" - YARDMAN GREEN (0665)

$30.99

$

In Stock, only 4 left!

0

White Outdoor 783-04415-0691

SKIRT-RH 50" - BLACK JACK (0691)

$30.99

$

In Stock, only 4 left!

0

White Outdoor 783-04415-0716

SKIRT-RH 50" - CUB YELLOW-99 (0716)

$30.99

$

In Stock, only 4 left!

0

White Outdoor 783-04415-4008

SKIRT-RH 50" - WINE RED (4008)

$30.99

$

In Stock, only 1 left!

0

White Outdoor 783-04415-4028

SKIRT-RH 50" - SEARS YELLOW (4028)

$30.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04415-4033

Right Skirt for 50" Deck - FLINT MICA (4033)

$30.99

$

In Stock, only 4 left!

0

White Outdoor 783-04415-4044

SKIRT-RH 50" - CRAFTSMAN RED (4044)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

47

White Outdoor 711-1737

Roller Pin, 5"

$25.99

$

In Stock, Qty 6

0

48

White Outdoor 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

49

White Outdoor 738-04146

Screw Plug

$9.49

$

Usually ships in 3-6 days

0
