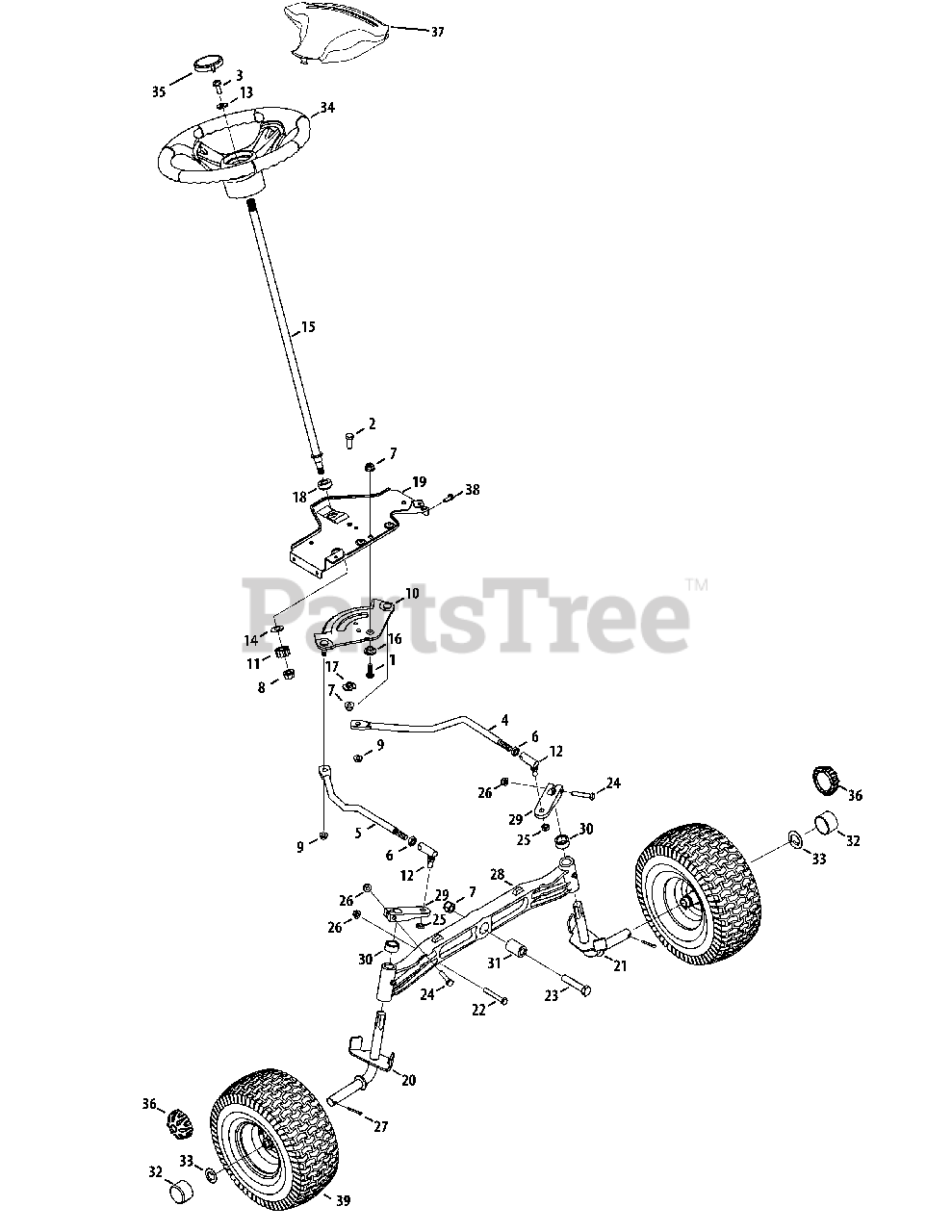

GT 5427 (14AK94KK897) - Columbia 54" Garden Tractor (2013) Steering Parts Diagram

54" Garden Tractor

Steering Parts Diagram

  • Title

1

MTD 710-04095

Screw, 3/8-16 x 1.0

$5.49

$

In Stock, Qty 20+

0

2

MTD 710-0514

Hex Screw 3/16 x 1.00

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0643

Hex Screw 5/16-18 x 1.00 Special

$6.99

$

In Stock, Qty 5

0

4

MTD 711-04998

Link, Drag LH

$27.99

$

In Stock, only 1 left!

0

5

MTD 711-04999

Link, Drag RH

$27.99

$

In Stock, only 1 left!

0

6

MTD 912-0240

Hex Jam Nut 7/16-20

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

9

MTD 712-3004A

Hex Flange L-Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

MTD 717-1550F

Steering Gear, 11/90 Ratio

$70.99

$

In Stock, Qty 20+

0

11

MTD 717-1554

Steering Pinion Gear

$10.99

$

In Stock, Qty 20+

0

12

MTD 923-0448A

Ball Joint, 7/16 - 20

$24.99

$

In Stock, Qty 20+

0

13

MTD 936-3004

Flat Washer .406 ID x .875 DE x .105
(Superseded to 736-3004)

$

$

Not available

14

MTD 736-3084

Flat Washer .510 x 1.120 x .060

$4.99

$

In Stock, Qty 20+

0

15

MTD 738-04263

Steering Shaft .625 OD x 24.25

$68.99

$

In Stock, Qty 7

0

16

MTD 738-04363

Shoulder Spacer .385 x 1.25 x .3025

$5.99

$

In Stock, only 3 left!

0

17

MTD 738-04364B

Spacer .38 x 1.375 Special

$6.49

$

In Stock, only 1 left!

0

18

MTD 741-04237B

Hex Flange Bearing 5/8

$6.99

$

In Stock, Qty 15

0

19

MTD 783-06043-0637

Steering Support Bracket

$

$

Not available

20

MTD 938-04040-0637

Axle Ass’y RH .750 Dia

$

$

Not available

21

MTD 938-04041-0637

Axle Ass’y LH .750 Dia.

$

$

Not available

22

MTD 710-0395

Hex Bolt 5/16-18 x 2.25

$4.99

$

In Stock, only 1 left!

0

23

MTD 710-0859

Hex Cap Screw, 3/8-16 x 2.5

$6.99

$

In Stock, Qty 17

0

24

MTD 710-3180

Hex Screw 5/16-18 x 1.75" Lg.

$5.49

$

In Stock, Qty 20+

0

25

MTD 912-0214

Hex Cent L-Nut 3/8-24
(Superseded to 712-0214)

$6.49

$

In Stock, only 2 left!

0

26

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Ny lon

$3.99

$

In Stock, Qty 20+

0

27

MTD 714-0162

Cotter Pin 5/32" Dia.

$4.99

$

In Stock, Qty 20+

0

28

MTD 719-04413A

Pivot Bar (cast)

$241.99

$

Usually ships in 3-6 days

0

29

MTD 748-04278-0637

Steering Block
(Superseded to 748-04278)

$21.99

$

In Stock, only 1 left!

0

30

MTD 748-04068

Spacer .710 ID x .125 OD x .56

$4.49

$

In Stock, Qty 20+

0

31

MTD 750-05280

Spacer .385 x 1.0 x 1.5075

$11.99

$

In Stock, Qty 10

0

32

MTD 931-3020

Hub Cap (w/ball bearings)

$8.99

$

In Stock, Qty 20+

0

33

MTD 736-0866

Flat Washer .755 x 1.92 x .060 (w/ball bearings)

$4.49

$

In Stock, Qty 20+

0

34

MTD 631-04028

Steering Wheel, Standard Grip

$69.99

$

In Stock, only 1 left!

0

34

MTD 631-04008A

Steering Wheel, Softgrip
(Superseded to 631-04008B)

$94.99

$

In Stock, only 3 left!

0

35

MTD n/a

Steering Wheel Cap (spig) logo

Note: Not used on these models

$

$

Currently unavailable

36

MTD n/a

Hub Cap

Note: Not used on these models

$

$

Currently unavailable

37

MTD 731-04064A

Steering Wheel Cover (w/o sprigs)

$14.99

$

Usually ships in 3-6 days

0

38

MTD 710-04484

S-Tapp Scr. 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

39

See "Front and Rear Wheels"

$

$

Not available
