GT 54 LS (960430179-00) - Husqvarna 54" Garden Tractor (2013-11) MOWER DECK / CUTTING DECK Parts Diagram

54" Garden Tractor

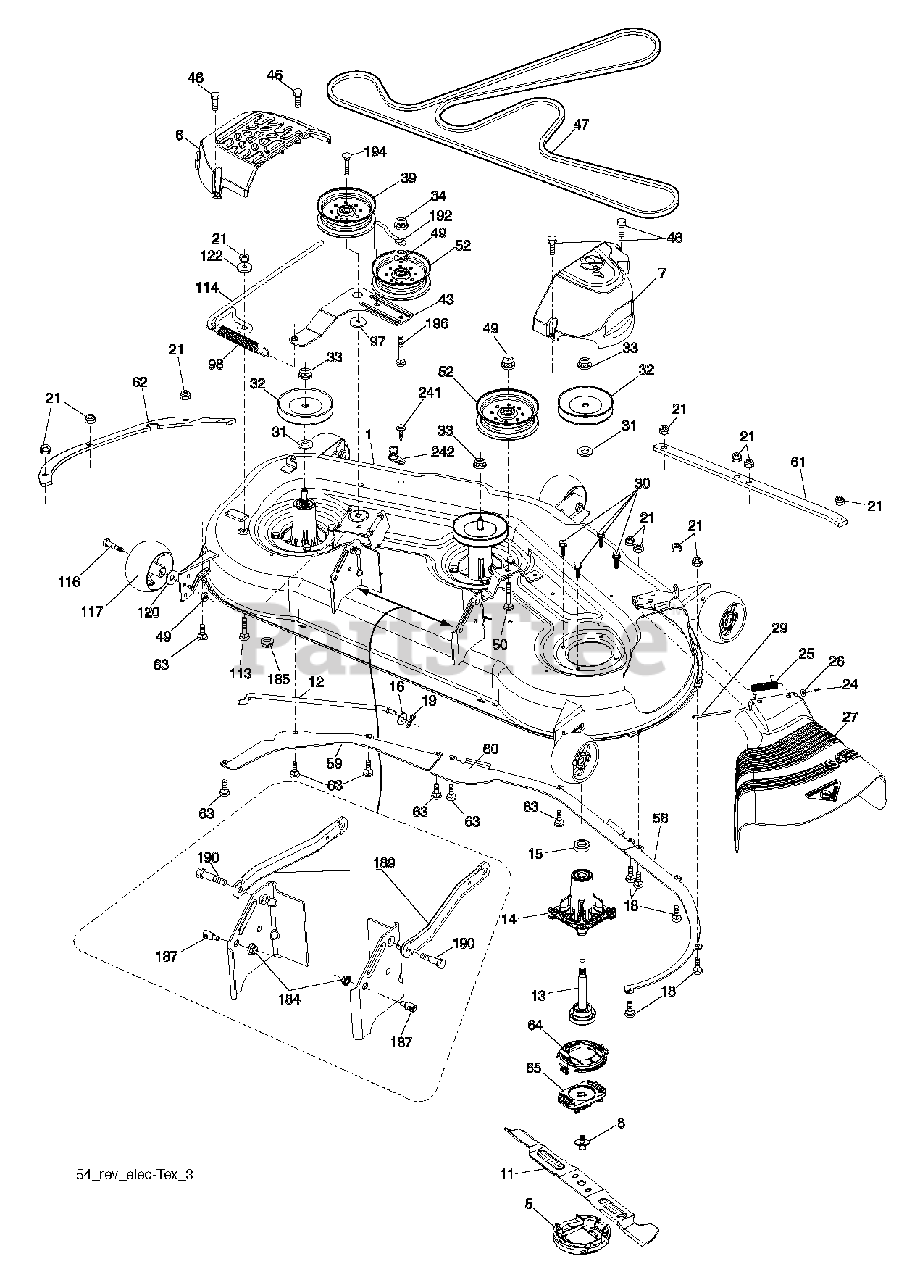

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 532445061

DECK.WLDMT.W/TUBES.54".ORANGE
(Superseded to 532418230)

$740.99

$

Usually ships in 3-10 days

0

5

Husqvarna 584306701

CAP.REVOLUTION.LOWER
(Superseded to 586638501)

$34.99

$

In Stock, only 2 left!

0

6

Husqvarna 532196066

COVER.MANDREL.LH.54"20

$34.99

$

In Stock, only 1 left!

0

7

Husqvarna 532197181

COVER.MANDREL.RH.54.20

$47.99

$

In Stock, only 1 left!

0

8

Husqvarna 584309301

SCREW.SEMS.7/16-20X1.HEX.HEAD
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

11

Husqvarna 581101101

BLADE.BAGGER.54"

$28.99

$

In Stock, Qty 5

0

12

Husqvarna 532400337

ROD.ANTI.SWAY.48/54"TE

$

$

Not available

13

Husqvarna 580862101

MANDREL.ASM.REV.TALL.N/GRSABLE
(Superseded to 587820201)

$37.99

$

In Stock, only 3 left!

0

14

Husqvarna 532187281

HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$56.99

$

In Stock, Qty 19

0

15

Husqvarna 532110485

BEARING

$13.99

$

In Stock, Qty 6

0

16

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532178102

SPRING, TORSION
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532188938

DEFLECTOR
(Superseded to 532187257)

$80.99

$

In Stock, Qty 10

0

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532153535

PULLEY/MANDREL
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 18

0

34

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532197380

RB PULLEY.IDLER.4.50/HUB SPEC
(Superseded to 532196104)

$43.99

$

In Stock, Qty 10

0

43

Husqvarna 532196065

ARM.IDLER

$15.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 532196103

BELT.DRIVE.54."2006
(Superseded to 587686701)

$62.99

$

In Stock, Qty 11

0

49

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

50

Husqvarna 872110616

BOLT

$6.49

$

Usually ships in 3-10 days

0

52

Husqvarna 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$39.99

$

In Stock, Qty 20+

0

58

Husqvarna 532187342

BAFFLE.RIGHT.54"

$12.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532187344

BAFFLE.LEFT.54"

$

$

Not available

60

Husqvarna 532187607

BAFFLE CENTER 54" MOWER

$22.99

$

In Stock, only 2 left!

0

61

Husqvarna 585322605

PLATE.REIN.FRONT.BOLT54"X431

$20.99

$

In Stock, only 1 left!

0

62

Husqvarna 585322805

PLATE.REIN.SIDE.BOLT.54"X431

$

$

Not available

63

Husqvarna 872110510

BOLT.CARRIAGE.5/16-18

$7.49

$

In Stock, Qty 20+

0

64

Husqvarna 584306601

CAP.REVOLUTION.UPPER
(Superseded to 586638501)

$34.99

$

In Stock, only 2 left!

0

55

Husqvarna 580954002

HOLDER BLADE REVOLUTION
(Superseded to 580954003)

$205.99

$

In Stock, Qty 5

0

97

Husqvarna 532178515

WASHER

$6.99

$

Usually ships in 3-10 days

0

98

Husqvarna 532196105

SPRING, DECK DRIVE

$7.99

$

In Stock, Qty 11

0

113

Husqvarna 872110508

BOLT CRT

$4.99

$

Usually ships in 3-10 days

0

114

Husqvarna 532187556

ROD TENSION RELIEF

$24.99

$

In Stock, only 1 left!

0

116

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Husqvarna 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

120

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

122

Husqvarna 532187557

BUSHING.RELIEF.TENSION

$9.49

$

In Stock, only 1 left!

0

184

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

185

Husqvarna 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 14

0

187

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

189

Husqvarna 532195185

ARM.SUSPENSION.MOWER
(Superseded to 531169201)

$14.99

$

In Stock, Qty 5

0

190

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

192

Husqvarna 532198468

KEEPER.BELT.IDLER.54"T

$17.99

$

Usually ships in 3-10 days

0

194

Husqvarna 874490736

BOLT.HEX.WASHER.HEAD.7/16-24X

$13.99

$

In Stock, only 4 left!

0

196

Husqvarna 872140620

BOLT

$3.99

$

Usually ships in 3-10 days

0

241

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, only 2 left!

0

242

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 13

0

--

Husqvarna 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 7

0

--

Husqvarna 580862601

MANDREL.ASM.REV.TALL.GREASEABL

$44.99

$

Usually ships in 3-10 days

0

--

Husqvarna 586440701

DECK.ASM SVC.54"E.HDHP.GWB.
(Superseded to 583408701)

$607.99

$

Usually ships in 3-10 days

0
