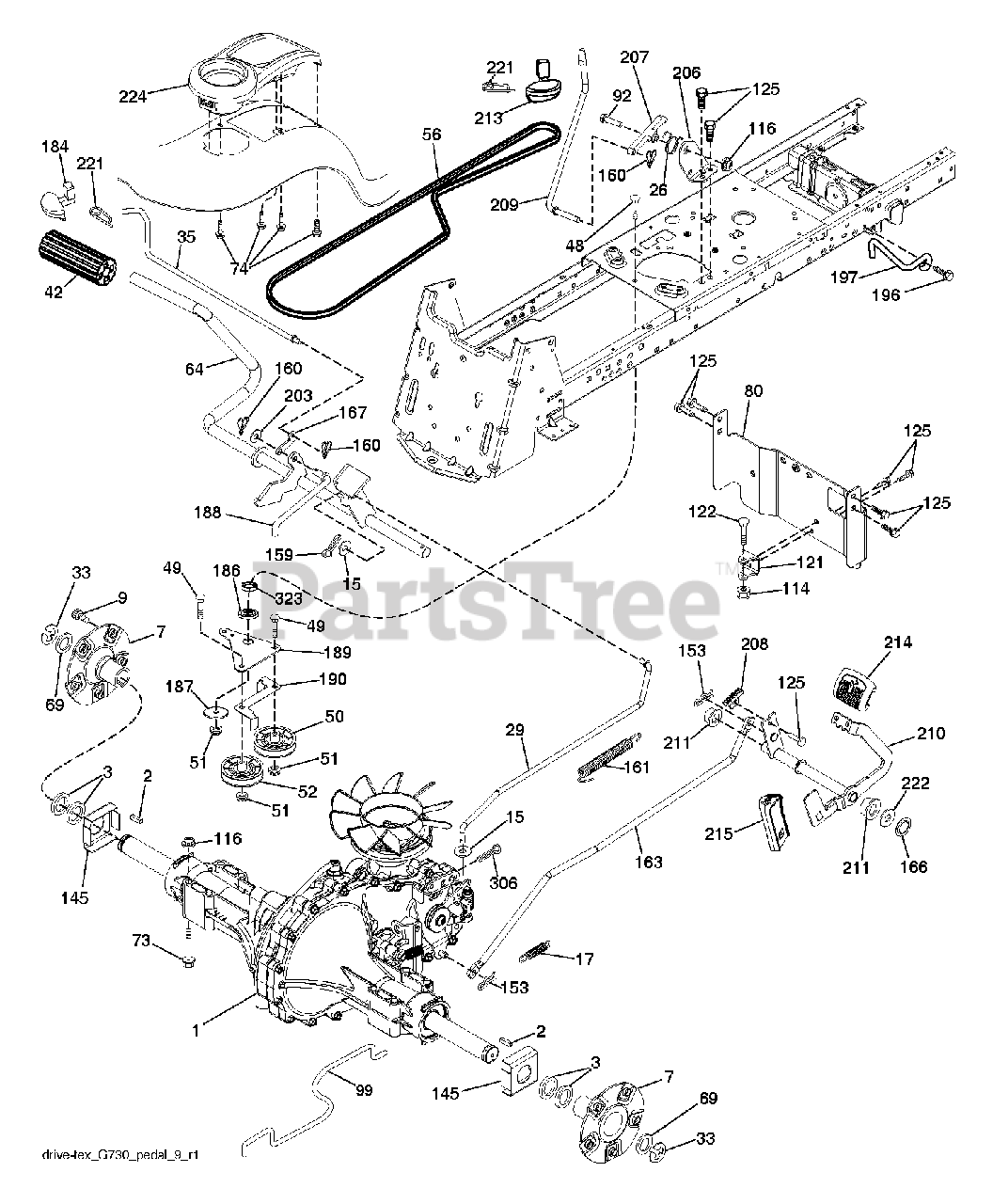

GT 54 CS (960430225-00) - Husqvarna 54" Garden Tractor (2015-12) DRIVE Parts Diagram

54" Garden Tractor

DRIVE Parts Diagram

  • Title
1

000000000

Note: Transaxle Hydro G7-BCBB-1XDC-1FCA (420331)

$

$

Not available

2

Husqvarna 532007070

KEY 1/4 X 2.5

$6.49

$

Usually ships in 3-10 days

0

3

$8.99

$

In Stock, only 1 left!

0

7

Husqvarna 532199837

HUB.ASM.WHEEL.REAR.23"TEX

$78.99

$

In Stock, Qty 6

0

9

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 532197296

SPRING.BRAKE.HG3000/3500

$6.99

$

In Stock, only 1 left!

0

26

Husqvarna 532199679

SPRING.RETURN.CRUISE

$6.49

$

In Stock, only 1 left!

0

29

$34.99

$

Usually ships in 3-10 days

0

33

Husqvarna 812000053

E RING HYT

$7.49

$

Usually ships in 3-10 days

0

35

Husqvarna 583864501

ROD .BRAKE. PARKING. GT. HUSQ.

$7.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

48

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 16

0

51

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Husqvarna 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532420807

V-BELT.GROUND.DRIVE.

$54.99

$

In Stock, only 2 left!

0

64

Husqvarna 532197865

SHAFT.ASM.PEDAL.BRK.CNTR

$53.99

$

In Stock, only 1 left!

0

$7.49

$

In Stock, only 1 left!

0

73

Husqvarna 874490548

BOLT HEX FLGHD 5/16-18X3 GR. 5

$6.49

$

In Stock, only 1 left!

0

74

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

80

Husqvarna 532418184

STRAP.TORQUE.YT.G700

$34.99

$

Usually ships in 3-10 days

0

92

Husqvarna 874760520

BOLT
(Superseded to 874780520)

$4.99

$

Usually ships in 3-10 days

0

99

Husqvarna 532418188

SPRING.BYPASS.YT.G700

$14.99

$

Usually ships in 3-10 days

0

114

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

116

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

121

Husqvarna 532175611

BRACKET STRAP TORQUE

$7.99

$

Usually ships in 3-10 days

0

122

Husqvarna 872010520

BOLT.5/16-18X2.5

$6.49

$

Usually ships in 3-10 days

0

125

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

145

Husqvarna 532163168

WASHER.AXLE.FLANGE.HG-3000

$15.99

$

In Stock, only 3 left!

0

153

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

159

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

160

Husqvarna 532169484

RETAINER CLIP

$

$

Not available

161

Husqvarna 532105709

SPRING, RETURN LT

$11.99

$

Usually ships in 3-10 days

0

163

Husqvarna 532418185

ROD PEDAL CONTROL

$34.99

$

Usually ships in 3-10 days

0

166

Husqvarna 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 2 left!

0

167

Husqvarna 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

184

Husqvarna 587653701

HANDLE.PARKING.BRAKE.H (BLK)
(Superseded to 532196439)

$12.99

$

In Stock, Qty 20+

0

186

Husqvarna 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 9

0

187

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

188

Husqvarna 532194323

RP LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$5.99

$

In Stock, Qty 10

0

189

Husqvarna 532407504

BELLCRANK.GROUND.DRIVE.TRAPPED

$15.99

$

Usually ships in 3-10 days

0

190

Husqvarna 532407505

KEEPER BELLCRANK ROUND DRIVE

$10.99

$

In Stock, only 1 left!

0

196

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

197

Husqvarna 585658601

CLUTCH.ANTIROTATION.WIREFORM.

$4.99

$

Usually ships in 3-10 days

0

203

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

206

Husqvarna 532448596

BRACKET.MOUNT.CRUISE.LATCH

$5.99

$

Usually ships in 3-10 days

0

207

Husqvarna 587031401

LATCH.CONTROL.CRUISE.TEX

$

$

Not available

208

Husqvarna 532197869

GEAR.SECTOR.CONTROL.CR

$6.49

$

Usually ships in 3-10 days

0

209

Husqvarna 532199592

ROD.CONTROL.CRUISE.GT.

$10.99

$

Usually ships in 3-10 days

0

210

Husqvarna 532197860

ROCKER.ASM.PEDAL.CONTR

Note: RH

$51.99

$

Usually ships in 3-10 days

0

211

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 3 left!

0

213

Husqvarna 532403119

KNOB.CONTROL.CRUSIE.HU

$12.99

$

In Stock, only 1 left!

0

214

Husqvarna 532421263

PEDAL.FORWARD.PAD.TEX

$8.99

$

In Stock, only 1 left!

0

215

Husqvarna 532401723

PEDAL.REVERSE.TEX.GT.4

$14.99

$

Usually ships in 3-10 days

0

221

Husqvarna 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, only 2 left!

0

222

Husqvarna 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$6.49

$

In Stock, only 1 left!

0

$

$

Currently unavailable

306

Husqvarna 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

323

Husqvarna 585714101

SLEEVE.BELLCRANK

$

$

Not available
