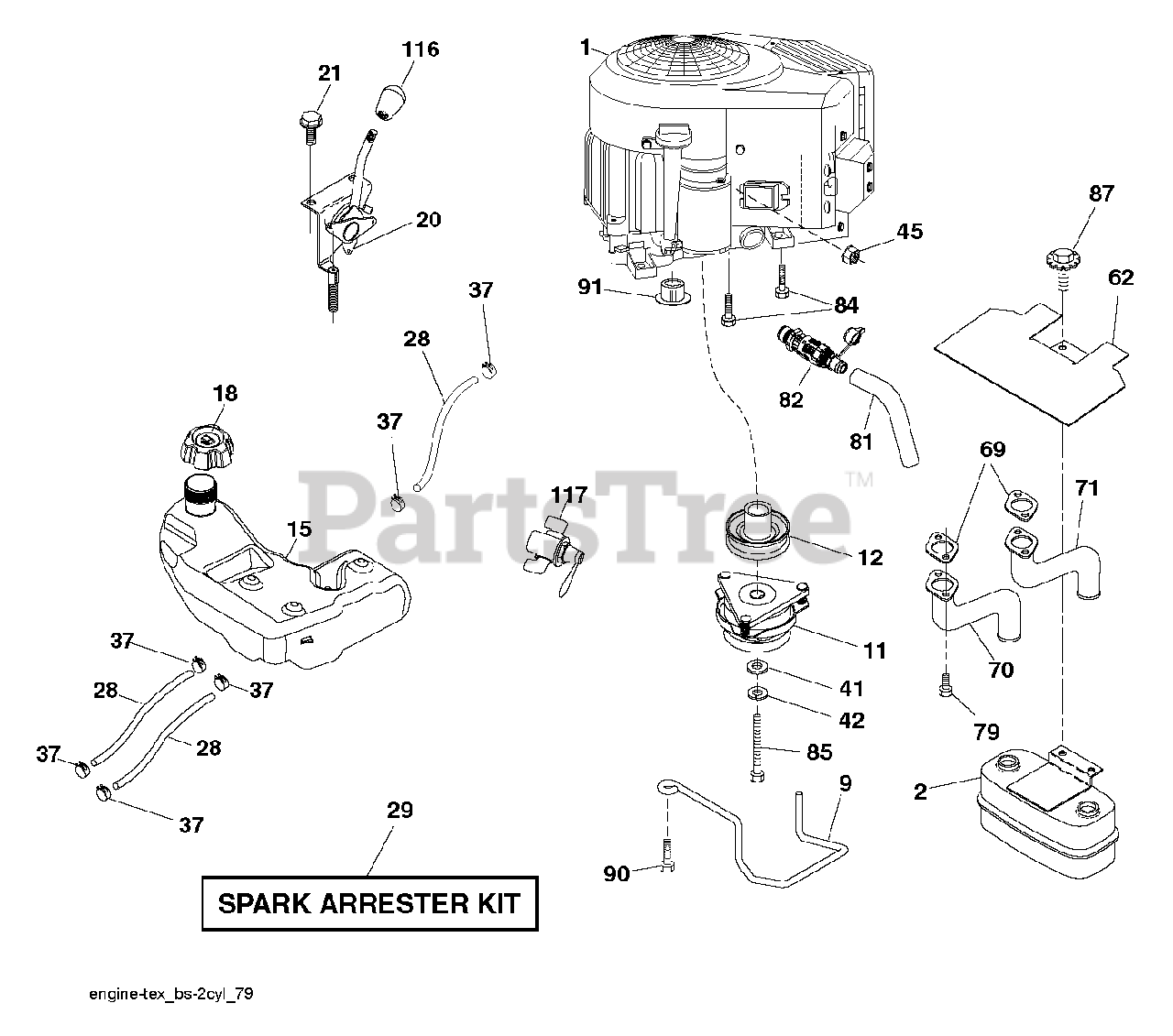

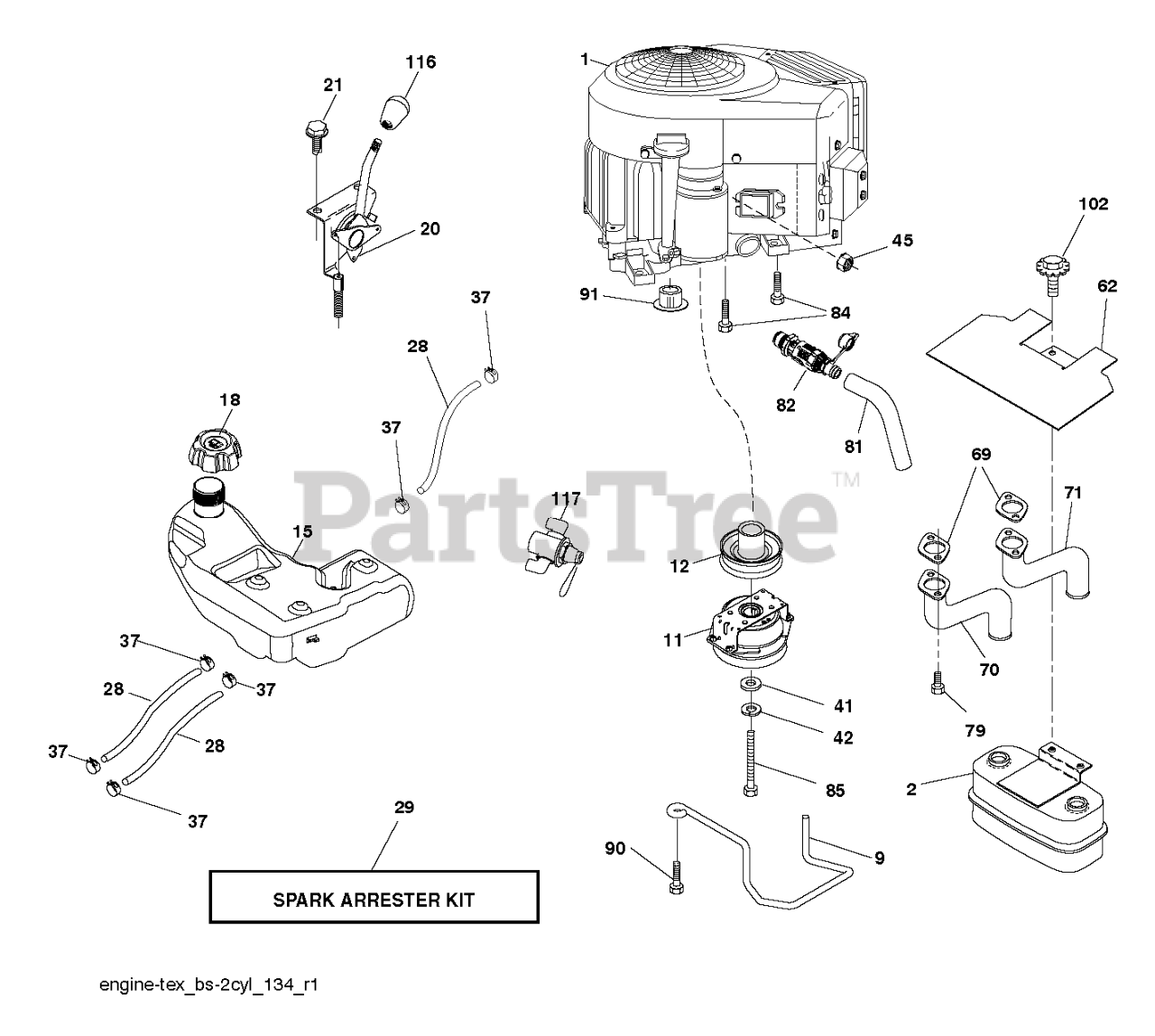

GT 52 XLSI (960480066-00) - Husqvarna 52" Garden Tractor (2013-11) ENGINE Parts Diagram

52" Garden Tractor

ENGINE Parts Diagram

  • Title

1

000000000

Note: ENGINE B S MODEL NUMBER 49S877-0003-G1 (586362501)

$

$

Not available

2

Husqvarna 532445962

MUFFLER.ASM.TWN.EXTNDED.DFLCTR
(Superseded to 589818702)

$51.99

$

In Stock, Qty 20+

0

9

Husqvarna 584908001

KEEPER BELT ENGINE
(Superseded to 501832602)

$

$

Not available

11

Husqvarna 532179335

CLUTCH MZ ZTR GT.48/54"1.125"

$341.99

$

In Stock, Qty 10

0

12

Husqvarna 532194343

PULLEY ENGINE

$74.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532422804

TANK FUEL

$206.99

$

Usually ships in 3-10 days

0

18

Husqvarna 584248702

CAP.ASSY.FUEL.3".N-EPA.GRY.498

$17.99

$

In Stock, Qty 12

0

20

Husqvarna 586219601

CONTROL.THROTTLE/CHOKE.PRO.45

$80.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

28

Husqvarna 532142158

REPL BY 532 00 85-43
(Superseded to 587044854)

$17.99

$

In Stock, only 1 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 14

0

41

Husqvarna 532126197

WASHER

$8.99

$

In Stock, Qty 20+

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 20+

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

70

Husqvarna 581881101

EXHAUST.TUBE.LH.BS/TWIN

Note: LH

$44.99

$

Usually ships in 3-10 days

0

71

Husqvarna 581881001

EXHAUST.TUBE.RH.B&S.TWIN.INTEK

Note: RH

$27.99

$

In Stock, Qty 11

0

79

Husqvarna 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 20+

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, Qty 20+

0

84

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

85

Husqvarna 532179953

BOLT HEX 7/16-20 X 3.75 GR. 5
(Superseded to 501606601)

$4.99

$

In Stock, Qty 18

0

87

Husqvarna 532198239

BOLT.5/16-18UNCX1.W/SEMS.BLK

$7.49

$

In Stock, only 4 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 2 left!

0

116

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 5

0

117

Husqvarna 532420828

VALVE FUEL RESERVE

$47.99

$

In Stock, only 1 left!

0
