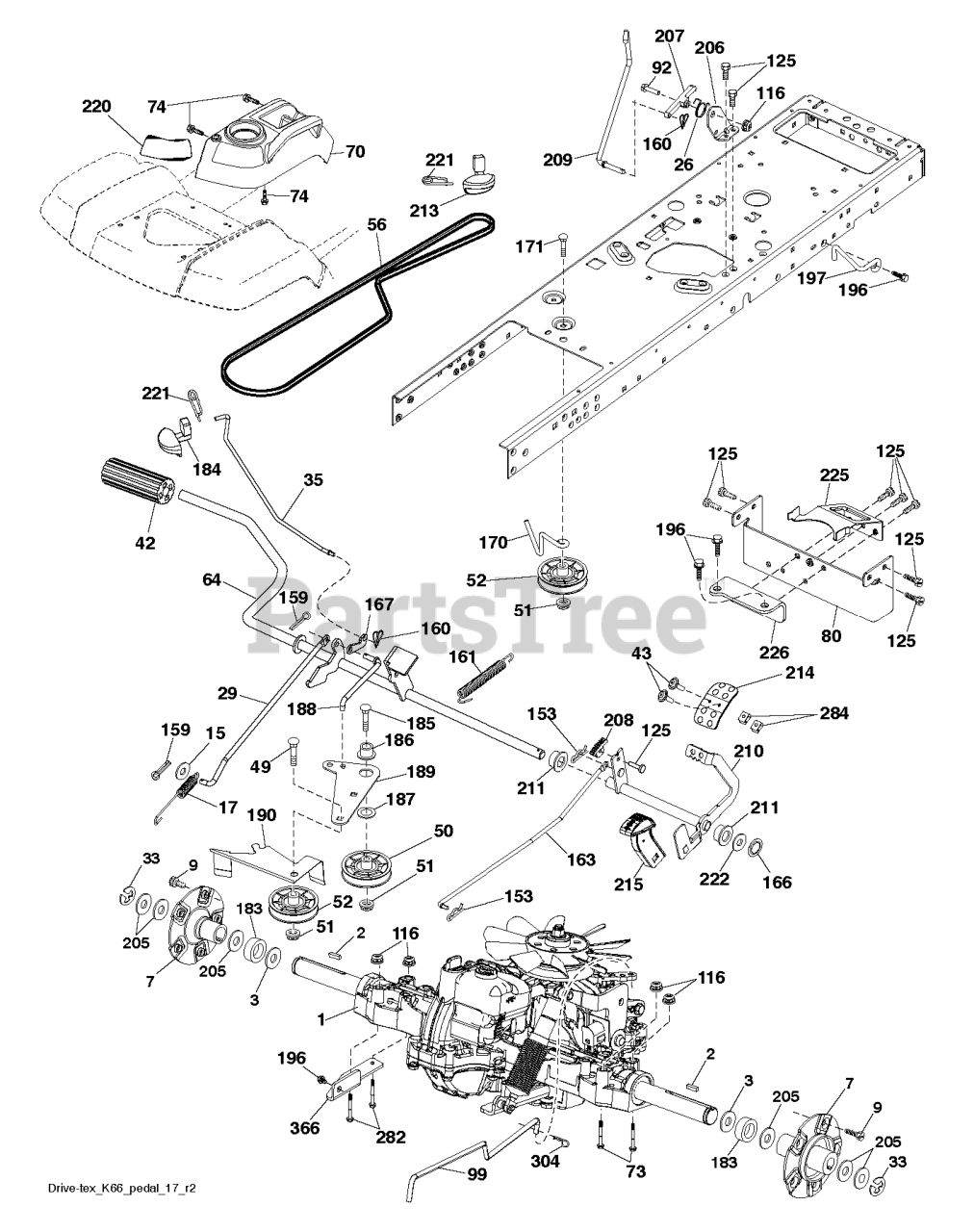

GT 52 XLSI (960430178-01) - Husqvarna 52" Garden Tractor (2015-09) DRIVE Parts Diagram

52" Garden Tractor

DRIVE Parts Diagram

  • Title

74

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

64

Husqvarna 532197865

SHAFT.ASM.PEDAL.BRK.CNTR

$53.99

$

In Stock, only 1 left!

0

221

Husqvarna 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, only 2 left!

0

184

Husqvarna 587653701

HANDLE.PARKING.BRAKE.H (BLK)
(Superseded to 532196439)

$12.99

$

In Stock, Qty 20+

0

1

000000000

Note: TRANSAXLE, TUFFTORQ K66ELD (580402201)

$

$

Not available

33

Husqvarna 812000053

E RING HYT

$7.49

$

Usually ships in 3-10 days

0

207

Husqvarna 587031401

LATCH.CONTROL.CRUISE.TEX

$

$

Not available

209

Husqvarna 590527801

ROD ROD.CRUISECONTROL.GT.HUSQ/
(Superseded to 590527802)

$7.99

$

Usually ships in 3-10 days

0

80

Husqvarna 589333402

STRAP.PNT.TORQUE.K66.EDIP

$26.99

$

Usually ships in 3-10 days

0

56

Husqvarna 592855301

BELT.DRIVE.T2.K66
(Superseded to 532125907)

$39.99

$

In Stock, Qty 9

0

43

Husqvarna 874180412

SCREW.MACHINE.CR.1/4-20

$4.99

$

In Stock, only 4 left!

0

215

Husqvarna 586606502

PEDAL.COVER.REVERSE.CRD.X428BK

$20.99

$

In Stock, only 1 left!

0

73

Husqvarna 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 586935402

HUB.PNT.GT.PM.1IN.AXLE.E-DIP

$62.99

$

In Stock, only 2 left!

0

26

Husqvarna 532199679

SPRING.RETURN.CRUISE

$6.49

$

In Stock, only 1 left!

0

213

Husqvarna 532403119

KNOB.CONTROL.CRUSIE.HU

$12.99

$

In Stock, only 1 left!

0

304

Husqvarna 532423303

HAIRPIN.SOFT.ZINC.059X1.125
(Superseded to 583404901)

$6.49

$

In Stock, only 1 left!

0

185

Husqvarna 872110622

BOLT

$4.99

$

In Stock, Qty 10

0

282

Husqvarna 874490548

BOLT HEX FLGHD 5/16-18X3 GR. 5

$6.49

$

In Stock, only 1 left!

0

225

Husqvarna 532407311

KEEPER.BELT.TRANSAXLE.K66

$13.99

$

In Stock, only 1 left!

0

196

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

226

Husqvarna 532407109

BRACKET.MOUNT.TORQUE.K66.TG

$10.99

$

Usually ships in 3-10 days

0

187

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

2

Husqvarna 539912757

KEY, 1/4 SQ X 1 1/4

$4.99

$

Usually ships in 3-10 days

0

284

Husqvarna 532417693

NUT.U-CHNL.1/4-20.550DP.350PNL

$4.99

$

Usually ships in 3-10 days

0

214

Husqvarna 532416863

PEDAL.FORWARD.HUSQVARNA.DEALER

$37.99

$

In Stock, only 1 left!

0

15

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

366

Husqvarna 580626201

BRACKET.REINFORCEMENT

$51.99

$

Usually ships in 3-10 days

0

153

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

3

Husqvarna 532007563

WASHER T

$8.99

$

In Stock, only 1 left!

0

116

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

210

Husqvarna 532197860

ROCKER.ASM.PEDAL.CONTR

$51.99

$

Usually ships in 3-10 days

0

220

Husqvarna 532198908

REFLECTOR.RH.TEX GT

$17.99

$

In Stock, only 1 left!

0

197

Husqvarna 585658601

CLUTCH.ANTIROTATION.WIREFORM.

$4.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 16

0

70

Husqvarna 532439661

CONSOLE.ASM.RH.GT.FC.HUSQ

$91.99

$

In Stock, only 1 left!

0

208

Husqvarna 532197869

GEAR.SECTOR.CONTROL.CR

$6.49

$

Usually ships in 3-10 days

0

161

Husqvarna 532105709

SPRING, RETURN LT

$11.99

$

Usually ships in 3-10 days

0

186

Husqvarna 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 9

0

29

Husqvarna 532407245

ROD.BRAKE.K66

$30.99

$

In Stock, only 1 left!

0

49

Husqvarna 872110614

BOLT

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532140080

HUB BOLT

$3.99

$

Usually ships in 3-10 days

0

160

Husqvarna 532169484

RETAINER CLIP

$

$

Not available

166

Husqvarna 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 2 left!

0

92

Husqvarna 874760520

BOLT
(Superseded to 874780520)

$4.99

$

Usually ships in 3-10 days

0

167

Husqvarna 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

171

Husqvarna 872110616

BOLT

$6.49

$

Usually ships in 3-10 days

0

52

Husqvarna 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

Usually ships in 3-10 days

0

35

Husqvarna 590605901

ROD ROD.PARKINGBRAKE.GT.HUSQ/P
(Superseded to 590605902)

$9.49

$

In Stock, only 1 left!

0

183

Husqvarna 587587401

SPACER.SPLIT.1.000IDX1.75

$10.99

$

In Stock, only 1 left!

0

159

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

189

Husqvarna 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$

$

Not available

163

Husqvarna 532407246

ROD.PEDAL.CONTROL

$72.99

$

Usually ships in 3-10 days

0

188

Husqvarna 582217001

LINK.CLUTCH.GROUND DRIVE.LONG
(Superseded to 532194323)

$5.99

$

In Stock, Qty 10

0

42

Husqvarna 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

206

Husqvarna 532448596

BRACKET.MOUNT.CRUISE.LATCH

$5.99

$

Usually ships in 3-10 days

0

190

Husqvarna 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, only 2 left!

0

17

Husqvarna 532401072

SPRING.BRAKE.K46

$8.99

$

In Stock, Qty 10

0

99

Husqvarna 582404701

ROD.BYPASS.K66

$6.99

$

Usually ships in 3-10 days

0

1

Husqvarna 536879901

ABSORBER

Note: Shock Absorber For Transmission

$159.99

$

Usually ships in 3-10 days

0

222

Husqvarna 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$6.49

$

In Stock, only 1 left!

0

211

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 3 left!

0

125

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

51

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

170

Husqvarna 532194322

KEEPER.V-IDLER.CENTER.

$7.49

$

In Stock, only 1 left!

0

205

Husqvarna 532123800

WASHER

$7.49

$

In Stock, only 1 left!

0
