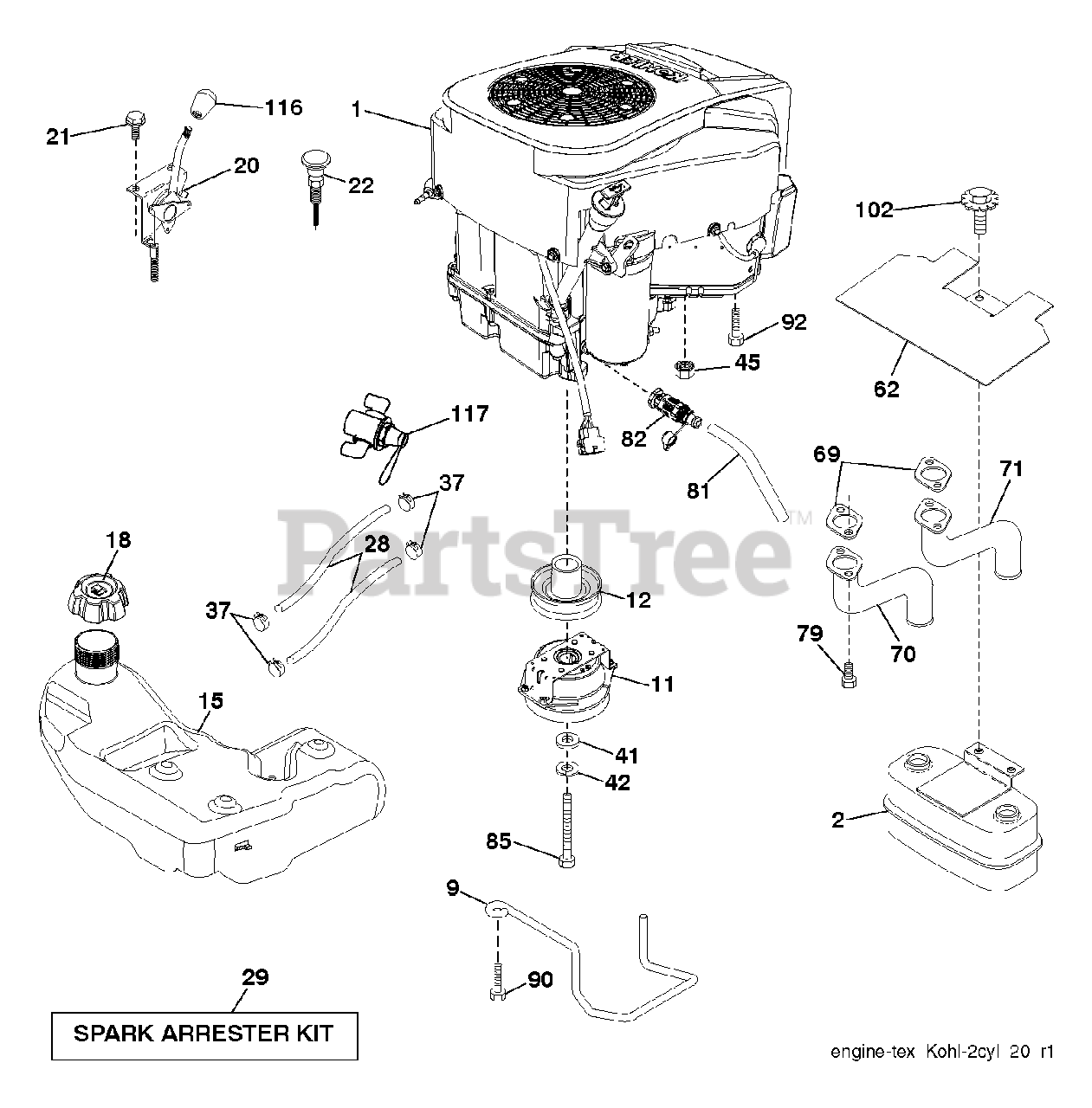

GT 52 XLS (960430206-01) - Husqvarna 52" Garden Tractor (2015-09) ENGINE Parts Diagram

52" Garden Tractor

ENGINE Parts Diagram

  • Title

1

000000000

Note: ENGINE KOHLER MODEL NO KT745-3011 (585453601)

$

$

Not available

2

Husqvarna 532445962

MUFFLER.ASM.TWN.EXTNDED.DFLCTR
(Superseded to 589818702)

$51.99

$

In Stock, only 4 left!

0

9

Husqvarna 532408667

KEEPER BELT ENGINE

$13.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532179335

CLUTCH MZ ZTR GT.48/54"1.125"

$341.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532194343

PULLEY ENGINE

$74.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532438082

TANK.ASSY.4.GAL.2.PORT.EPA
(Superseded to 529999002)

$284.99

$

Usually ships in 3-10 days

0

18

Husqvarna 585124801

CAP ASSY FUEL 3" GRAY

$20.99

$

In Stock, only 1 left!

0

20

Husqvarna 532426184

CONTROL.THROTTLE.PRO.KOHLER

$93.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

22

Husqvarna 532191596

CONTROL.CHOKE.ERGO.PUSH-IN.BLA

$40.99

$

In Stock, only 1 left!

0

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$20.99

$

In Stock, only 1 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

41

Husqvarna 532126197

WASHER

$8.99

$

In Stock, only 3 left!

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532186054

GASKET.EXHAUST.KOHL.CV18-CV26

$

$

Not available

70

Husqvarna 583954501

PIPE.EXHAUST.LH.CV18/20

Note: LH

$22.99

$

In Stock, only 1 left!

0

71

Husqvarna 583954801

PIPE.EXHAUST.RH.CV18/20

Note: RH

$20.99

$

In Stock, only 1 left!

0

79

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 17

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 6

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, Qty 5

0

85

Husqvarna 532179953

BOLT HEX 7/16-20 X 3.75 GR. 5
(Superseded to 501606601)

$4.99

$

In Stock, only 1 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

116

Husqvarna 532424659

RP KNOB SOFT TOUCH
(Superseded to 539132624)

$7.99

$

In Stock, Qty 6

0

117

Husqvarna 532420828

VALVE FUEL RESERVE

$47.99

$

In Stock, only 2 left!

0
