GT 52 XLS (960430160-02) - Husqvarna 52" Garden Tractor (2016-05) SEAT Parts Diagram

52" Garden Tractor

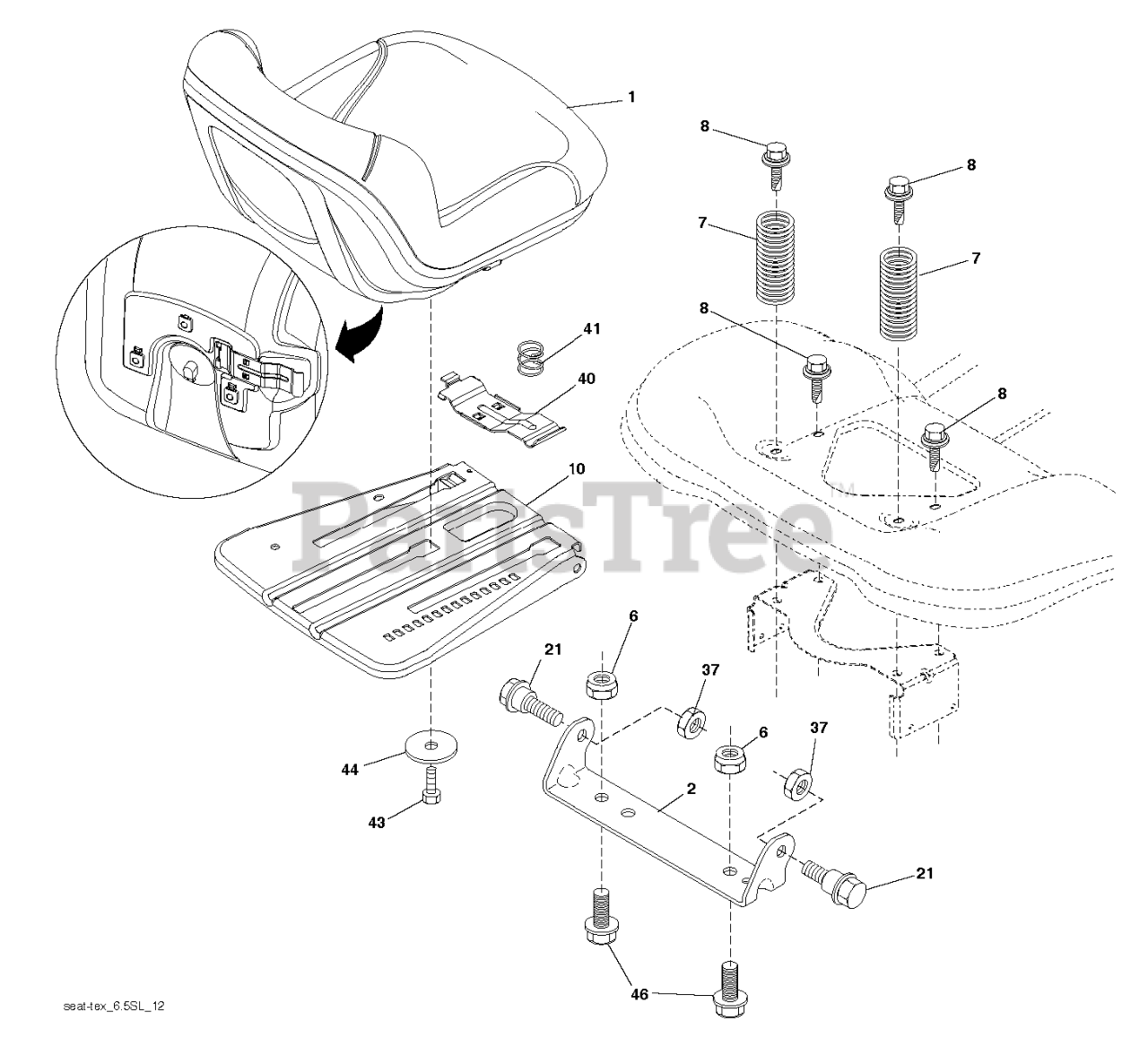

SEAT Parts Diagram

  • Title

1

Husqvarna 532443263

SEAT.TH154.GREY.HUS.ARMREST
(Superseded to 588556701)

$319.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532196977

PAN.ASM.SEAT.3PT
(Superseded to 596768801)

$56.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532180166

BRKT.PIVOT.FENDER

$13.99

$

In Stock, only 1 left!

0

41

Husqvarna 532198200

SPRING.LATCH.SEAT.TEX

$6.49

$

Usually ships in 3-10 days

0

44

Husqvarna 819133812

WASHER 13/32 X 2-3/8 X 12GA
(Superseded to 583789501)

$

$

Not available

43

Husqvarna 874760612

BOLT

$4.99

$

In Stock, only 3 left!

0

7

Husqvarna 587613301

SPRING.COMPRESSION.SEAT.BLACK

$6.99

$

In Stock, only 4 left!

0

46

Husqvarna 588090401

BOLT.3/8-16X1;1.25OD.WSHR.SEMS

$6.99

$

Usually ships in 3-10 days

0

21

Husqvarna 587907801

BOLT.5/16-18X5/8.SHOULDER

$4.99

$

In Stock, Qty 8

0

37

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

40

Husqvarna 532439871

HANDLE.SLIDE.SEAT.TEX.GREY
(Superseded to 532197661)

$

$

Not available

6

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0
