GT 52 XLS (960430159-01) - Husqvarna 52" Garden Tractor (2013-08) MOWER DECK / CUTTING DECK Parts Diagram

52" Garden Tractor

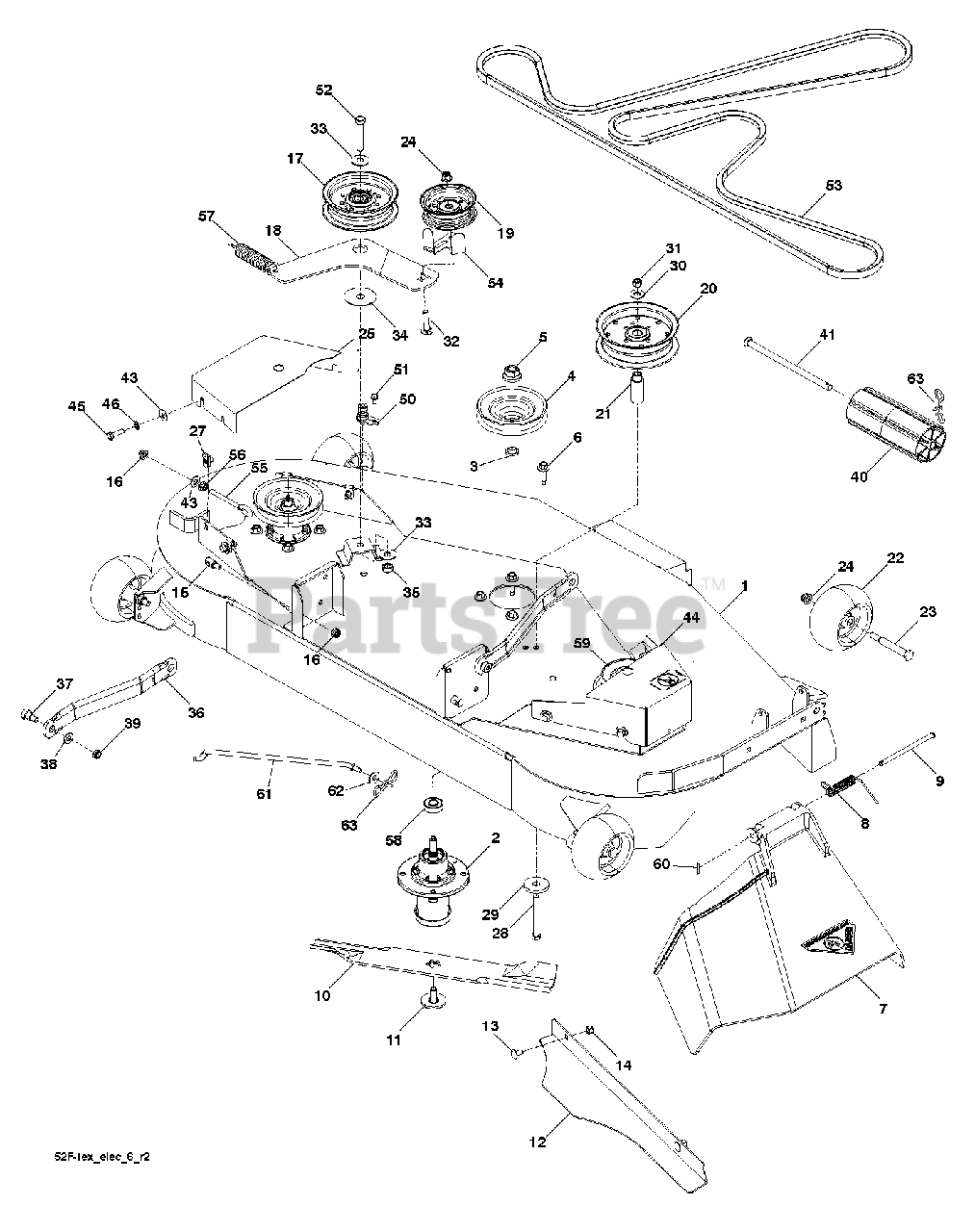

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 575438003

DECK SVC W/DECALS.52.GTH.ORG
(Superseded to 591350101)

$1455.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539112170

MANDREL.DECK.ASSEMBLY

$79.99

$

In Stock, Qty 20+

0

3

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0

4

Husqvarna 532174375

PULLEY.DRIVEN.DECK.48'

$39.99

$

In Stock, Qty 10

0

5

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

6

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 532110733

DISCHARGE.CHUTE-52"
(Superseded to 539110733)

$53.99

$

In Stock, only 2 left!

0

8

Husqvarna 532110735

SPRING - TORSION
(Superseded to 539110735)

$

$

Not available

9

Husqvarna 532110736

PIN, CLEVIS 5/16 X 5.19
(Superseded to 539110736)

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 574870801

BLADE, 17.75 X 2.5 X .25

$22.99

$

In Stock, Qty 20+

0

11

Husqvarna 539107522

BLADE BOLT ASSY-7/16" TB REPL
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

12

Husqvarna 574875002

PLATE.52".CONFINEMENT.BLACK

$53.99

$

Usually ships in 3-10 days

0

13

Husqvarna 872110505

BOLT
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

16

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

17

Husqvarna 532196104

PULLEY.IDLER.MWR.STATI.LH

$43.99

$

In Stock, Qty 19

0

18

Husqvarna 574841802

ARM, IDLER, 52" BLK

$31.99

$

In Stock, only 1 left!

0

19

Husqvarna 532177968

PULLEY.IDLER.FLAT

$31.99

$

In Stock, Qty 5

0

20

Husqvarna 539132728

PULLEY, IDLER
(Superseded to 589766102)

$31.99

$

Usually ships in 3-10 days

0

21

Husqvarna 575224501

BUSHING, IDLER

$31.99

$

In Stock, Qty 5

0

22

Husqvarna 532133957

WHEEL GAGE DONUT

$13.99

$

In Stock, Qty 20+

0

23

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

24

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

25

Husqvarna 575224702

SHIELD.BELT.LH.ORANGE

$48.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 9

0

28

Husqvarna 539108271

HCS 3/8-16 X 3-1/2 GR5 ZD

$5.99

$

In Stock, Qty 8

0

29

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

30

Husqvarna 819141614

WASHER 3/8 FLAT
(Superseded to 539990517)

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 539990923

RHSNB 3/8-16X1-3/4

$3.49

$

In Stock, only 1 left!

0

33

Husqvarna 539104864

WASHER 7/16 FLAT ZD
(Superseded to 596437601)

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532178515

WASHER

$6.99

$

Usually ships in 3-10 days

0

35

Husqvarna 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 14

0

36

Husqvarna 532195185

ARM.SUSPENSION.MOWER
(Superseded to 531169201)

$14.99

$

In Stock, Qty 5

0

37

Husqvarna 539113621

SB 3/8-16 X 3/8 SKT HD ZD
(Superseded to 596241101)

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

40

Husqvarna 532176066

NOSE ROLLER 48"

$13.99

$

In Stock, Qty 20+

0

41

Husqvarna 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$6.99

$

In Stock, Qty 20+

0

43

Husqvarna 819121414

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

44

Husqvarna 575967302

SHIELD.BELT.RH.52.ORANGE

$48.99

$

In Stock, only 4 left!

0

45

Husqvarna 874780516

BOLT.FIN.HEX.5/16-18UNC X 1.00

$6.49

$

Usually ships in 3-10 days

0

46

Husqvarna 810030500

WASH.5/16.SLW.ZD
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

50

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 12

0

51

Husqvarna 817490408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539104870

BOLT 7/16-14 X 2-1/2 GR 5 ZD
(Superseded to 874780740)

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 574845603

BELT, 143.5" EL

$109.99

$

In Stock, only 4 left!

0

54

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$5.99

$

In Stock, only 3 left!

0

55

Husqvarna 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

56

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 539106850

SPRING

$

$

Not available

58

Husqvarna 532110485

BEARING

$13.99

$

In Stock, Qty 14

0

59

Husqvarna 575352901

RP PULLEY, COLLECTION 48
(Superseded to 588586401)

$66.99

$

In Stock, Qty 15

0

60

Husqvarna 532169484

RETAINER CLIP

$

$

Not available

61

Husqvarna 532400337

ROD.ANTI.SWAY.48/54"TE

$

$

Not available

62

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

63

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0
