GT 5024 (14AQ94KP897) - Columbia 50" Garden Tractor (2014) Hood & Grille Parts Diagram

50" Garden Tractor

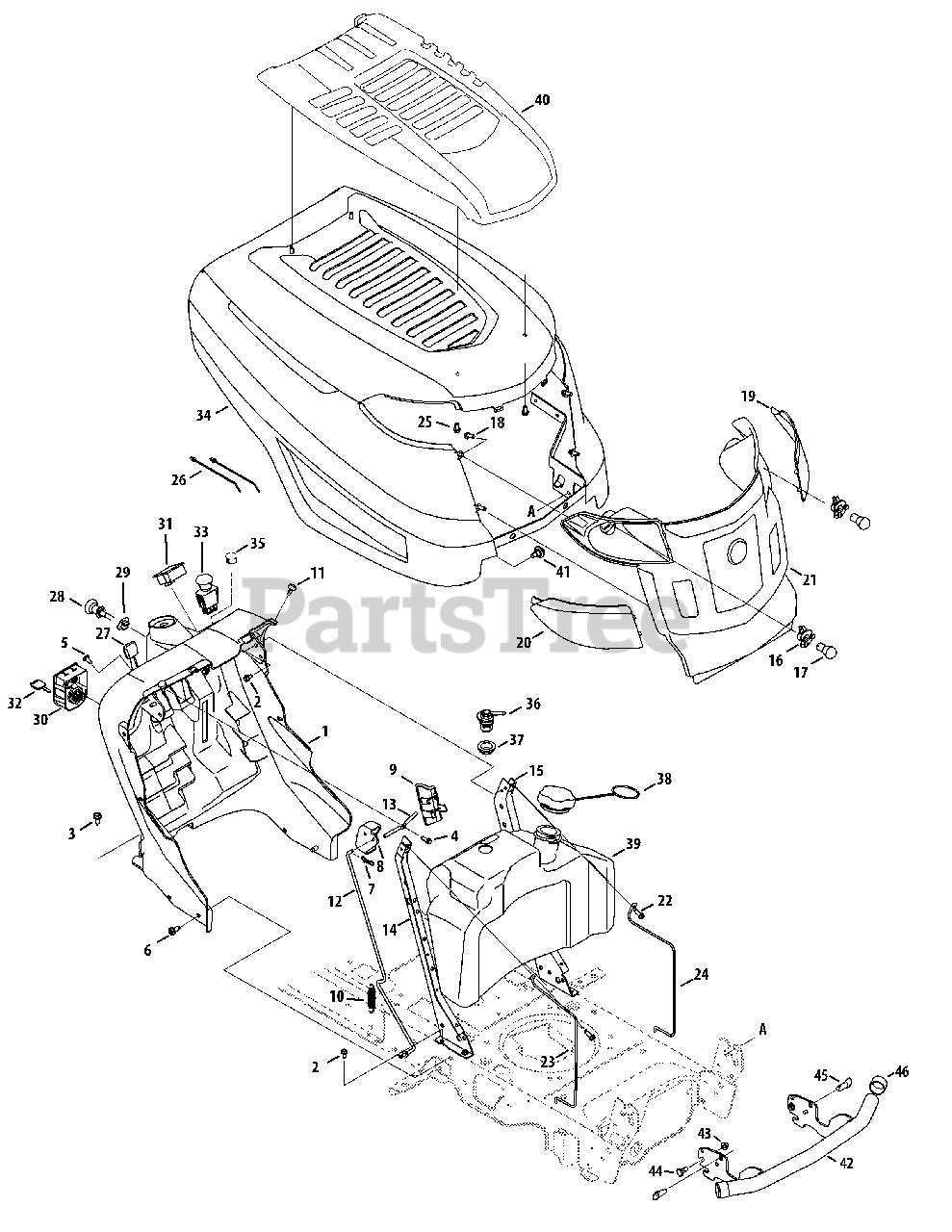

Hood & Grille Parts Diagram

  • Title

1

MTD 931-04664

Dash Panel (Elect PTO)

$

$

Not available

2

MTD 710-0599

Screw, 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-05108

Hex Bos Scr 1/4 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-1017

Torx Mach. AB-Tapp Scr. 1/4-14 x .625 Lg

$8.49

$

In Stock, Qty 9

0

6

MTD 710-1611B

Screw 5/16-18 x .75

$6.99

$

In Stock, only 2 left!

0

7

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

8

MTD 731-06639

Dash Lever

$

$

Not available

9

MTD 731-06642

Cruise Cover

$5.99

$

Usually ships in 3-6 days

0

10

MTD 732-04580

Extension Spring .500 Dia. x 2.733" Lg.

$6.49

$

Usually ships in 3-6 days

0

11

MTD 735-0271A

Bumper

$8.99

$

In Stock, only 4 left!

0

12

MTD 747-05008

Control Rod

$16.99

$

Usually ships in 3-6 days

0

13

MTD 747-1196

Pivot Rod

$15.99

$

Usually ships in 3-6 days

0

14

MTD 783-04285F-0637

RH Dash Support Plate

$

$

Not available

15

MTD 783-04323F-0637

LH Dash Support Plate

$34.99

$

Usually ships in 3-6 days

0

16

MTD 925-1649

Lamp Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

17

MTD 925-0963

Lamp

$7.49

$

In Stock, only 4 left!

0

18

MTD 710-05108

Screw 1/4 x .75

$3.99

$

In Stock, Qty 20+

0

19

MTD 731-06095

Lens LH

$12.99

$

In Stock, only 1 left!

0

20

MTD 731-06096

Lens RH

$12.99

$

In Stock, only 2 left!

0

21

MTD 931-06796

Grille Style "K"
(Superseded to 931-06796A)

$72.99

$

Usually ships in 3-6 days

0

22

MTD 710-1652

TT Scr. 1/4-20 x .625 Lg.

$4.49

$

In Stock, Qty 20+

0

23

MTD 747-04161

LH Support Rod

$

$

Not available

24

MTD 747-04946

RH Support Rod

$

$

Not available

25

MTD 710-04187

Hex Screw 1/4-15 x .50
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 7

0

25

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

27

MTD 946-04542

Throttle/Choke Cont. Cable (Kohler Twin)

Note: (w/Electric PTO)

$47.99

$

In Stock, only 1 left!

0

28

Choke Cable (Kohler Twin)

$

$

Not available

29

MTD 731-1999

Choke Plug (Single Cyl.)

$10.99

$

Usually ships in 3-6 days

0

30

MTD 725-06102A

Module Ignition Switch (Electric PTO)
(Superseded to 725-13425)

$96.99

$

In Stock, Qty 7

0

31

MTD 925-06154

Systems Ind. Monitor w/Hr. Meter
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

32

MTD 925-1745A

Key

$17.99

$

In Stock, Qty 20+

0

33

MTD 925-04174

Electric PTO Switch (Electic PTO Only)
(Superseded to 925-04174A)

$70.99

$

In Stock, Qty 5

0

34

MTD 683-04774-0662

HOOD ASSEMBLY(K STYLE) (OYSTER GRAY)

$344.99

$

Usually ships in 3-6 days

0

35

MTD 726-04096

Cap

$3.99

$

Usually ships in 3-6 days

0

36

MTD 751-12118

Rollover Valve

$35.99

$

In Stock, only 1 left!

0

37

MTD 735-04081

Rubber Grommet

$4.99

$

In Stock, Qty 20+

0

38

MTD 951-12182

Cap-Fuel (w/hoop)

$36.99

$

In Stock, only 1 left!

0

39

MTD 951-04309

Tank Ass'y

$

$

Not available

40

MTD 731-06194B

Hood Scoop

$56.99

$

Usually ships in 3-6 days

0

41

MTD 738-04091A

Shoulder Screw 5/16-18: .43 x .29

$3.99

$

Usually ships in 3-6 days

0

42

MTD 683-04219B-0637

Bumper Assembly

$60.99

$

In Stock, only 2 left!

0

43

MTD 712-0130

Hex Lock-Nut 3/8-16 Nylon

$3.99

$

In Stock, Qty 13

0

44

MTD 738-0143

SHOULDER SCREW .498 DIA x .340

$4.49

$

In Stock, Qty 20+

0

45

MTD 714-04061

Quick Pin 1/2" dia. x 0.50

$21.99

$

In Stock, Qty 20+

0

46

MTD 731-05674

Bumper Cap

$5.49

$

In Stock, Qty 20+

0

MTD 925-04104

Harness

Note: (Electric PTO/RMC/Hour Meter)

$220.99

$

Usually ships in 3-6 days

0

RMC® (Reverse Mowing Control)

$

$

Not available
