GT 5024 (14AQ94KP897) - Columbia 50" Garden Tractor (2014) Drive Assembly Parts Diagram

50" Garden Tractor

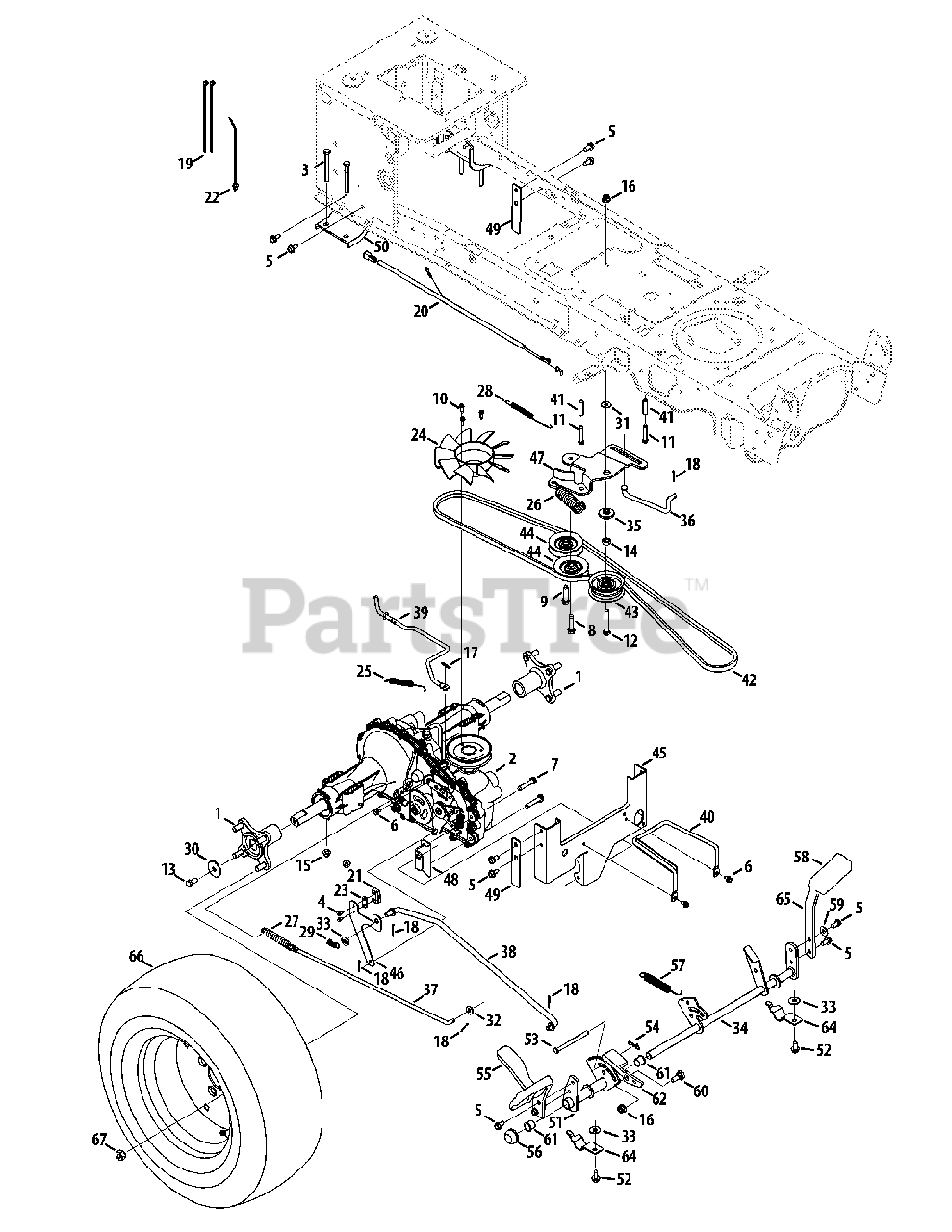

Drive Assembly Parts Diagram

  • Title

1

MTD 918-04317

Wheel Hub

$116.99

$

In Stock, only 1 left!

0

2

MTD 918-04917

Transmission

$1988.99

$

Usually ships in 3-6 days

0

3

MTD 710-0189

Hex Screw 5/16-18 X 3.00

$6.49

$

In Stock, Qty 5

0

4

MTD 710-0227

Hex Wash HD AB S-Tapp Scr #8-.50

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0909A

Hex Wash TT-Tap Scr 5/16-18 x 1.75 Lg.

$10.99

$

In Stock, only 2 left!

0

8

MTD 710-1007

Hex L-Wash HD Scr 3/8-16 x 1.5

$6.49

$

In Stock, only 1 left!

0

9

MTD 710-1008

Hex L-Wash TT Scr. 3/8-16 x 1.88

$5.49

$

In Stock, Qty 8

0

10

MTD 710-1189

Screw, #12-24 x .625

$

$

Not available

11

MTD 710-1325

Hex Washer Hd. TT Screw 1/4-20 x 1.625

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-3011

Hex Bolt 3/8-16 x 2.25" Lg.

$6.99

$

In Stock, Qty 20+

0

13

MTD 710-3119

Hex Cap Lock Screw 3/8-16 x .75 Gr. 5

$6.99

$

In Stock, only 1 left!

0

14

MTD 912-0240

Hex Jam Nut 7/16-20

$4.49

$

In Stock, Qty 20+

0

15

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 5

0

16

MTD 712-04065

Flange Locknut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

17

MTD 914-0104

Int. Cotter Pin .072 x 1.13" Lg.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

18

MTD 914-0111

Cotter Pin 3/32 dia x 1.00 Lg.
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

19

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

20

MTD 725-04791A

Jumper Harness

$15.99

$

Usually ships in 3-6 days

0

21

MTD 725-1644

Short Spring Switch

$9.99

$

In Stock, Qty 11

0

22

MTD 926-0154

Push Mount Tie

$6.49

$

Usually ships in 3-6 days

0

23

MTD 926-0320

Insulator Nut Plate

$6.99

$

In Stock, Qty 11

0

24

MTD 931-1449A

Fan

$35.99

$

In Stock, Qty 9

0

25

MTD 732-04528

Extension Spring .50 dia. x 5.0" Lg.

$9.99

$

Usually ships in 3-6 days

0

26

MTD 732-04792

Extension Spring 1.0 dia. x 4.75" lg.

$9.49

$

In Stock, Qty 5

0

27

MTD 732-0716D

Extension Spring .59 dia. x 4.0" Lg.

$13.99

$

In Stock, only 1 left!

0

28

MTD 732-0932

Extension Spring .38 dia. x 5.6" Lg.

$14.99

$

In Stock, only 4 left!

0

29

MTD 732-3118

Extension Spring 3/8 dia. x 1.44" Lg.

$10.99

$

In Stock, only 1 left!

0

30

MTD 936-0227

Flat Washer .39 ID x 1.5 OD x .135
(Superseded to 736-0227)

$

$

Not available

31

MTD 936-0344

Flat Washer .385 x 1.0 x .03
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

32

MTD 936-3008

Flat Washer .312 ID x .75 OD

$6.99

$

Usually ships in 3-6 days

0

33

MTD 936-0275

Flat Washer .344 x 0.688 x .065
(Superseded to 736-0275)

$

$

Not available

34

MTD 647-04152D

Shaft Ass'y

$

$

Not available

35

MTD 738-04420

SHOULDER SPACER 1.375X.380X.183

$6.99

$

In Stock, only 3 left!

0

36

MTD 747-04957A

Footpedal Bypass Rod

$13.99

$

Usually ships in 3-6 days

0

37

MTD 747-05124

Brake Rod

$15.99

$

Usually ships in 3-6 days

0

38

MTD 747-05125A

Control Rod

$

$

Not available

39

MTD 747-05130

Disengage Rod

$

$

Not available

40

MTD 747-05181

Belt Keeper

$14.99

$

Usually ships in 3-6 days

0

41

MTD 750-04456

Spacer .260 x .372 x 1.420

$7.49

$

In Stock, only 3 left!

0

42

MTD 954-04244A

V-Belt, 4L x 77.0

$30.99

$

In Stock, only 1 left!

0

43

MTD 756-04224

Idler Pulley, Flat 2.75 OD

$26.99

$

In Stock, Qty 20+

0

44

MTD 756-04325

Idler Pulley V-Type x 3.06

$24.99

$

In Stock, Qty 20+

0

45

MTD 783-05443A-0637

Torque Bracket

$29.99

$

Usually ships in 3-6 days

0

46

MTD 753-06760

Switch Bracket

$13.99

$

Usually ships in 3-6 days

0

47

MTD 783-06027B

Idler Bracket (Centre Double)

$

$

Not available

48

MTD 783-06501A-0637

Deck Bracket

$

$

Not available

49

MTD 783-06503

Plate Bracket

$

$

Not available

50

MTD 783-0693A-0637

Axle Bracket

$24.99

$

Usually ships in 3-6 days

0

51

MTD 683-04571

Hydro Petal Bracket Ass'y

$

$

Not available

52

MTD 710-0604A

Self-tapping Screw 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

53

MTD 711-05068A

Clevis Pin 5/16 x 3.985

$7.99

$

Usually ships in 3-6 days

0

54

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

55

MTD 719-0584B-0637

Control Pedal

$60.99

$

In Stock, only 1 left!

0

56

MTD 726-0214

Push Cap 5/8" Dia Rod

$10.99

$

Usually ships in 3-6 days

0

57

MTD 732-04587

Extension Spring .63 dia. x 4.95

$7.49

$

In Stock, Qty 12

0

58

MTD 735-04136

Brake Pedal Pad

$15.99

$

Usually ships in 3-6 days

0

59

MTD 736-0242

Cupped Washer .345 ID x .88 OD x .060

$4.49

$

In Stock, Qty 20+

0

60

MTD 938-0380

Shoulder Screw .500 x .25
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

61

MTD 741-0495

NYLINER BEARING

$4.99

$

In Stock, Qty 20+

0

62

MTD 748-04203

Cruise Latch

$14.99

$

Usually ships in 3-6 days

0

63

MTD 783-05914

Pedal Strap Support Bracket

$7.49

$

Usually ships in 3-6 days

0

64

MTD 783-05940

Pedal Strap Support Bracket

$7.49

$

Usually ships in 3-6 days

0

65

MTD 783-06103A-0637

Brake Pedal Bracket

$17.99

$

Usually ships in 3-6 days

0

66

See Wheel Chart

$

$

Not available

67

MTD 712-3050

Lug Nut 7/16-14

$9.99

$

In Stock, Qty 5

0
