GT 50 B (UT-26049) - Green Machine String Trimmer Engine Internals Parts Diagram

String Trimmer

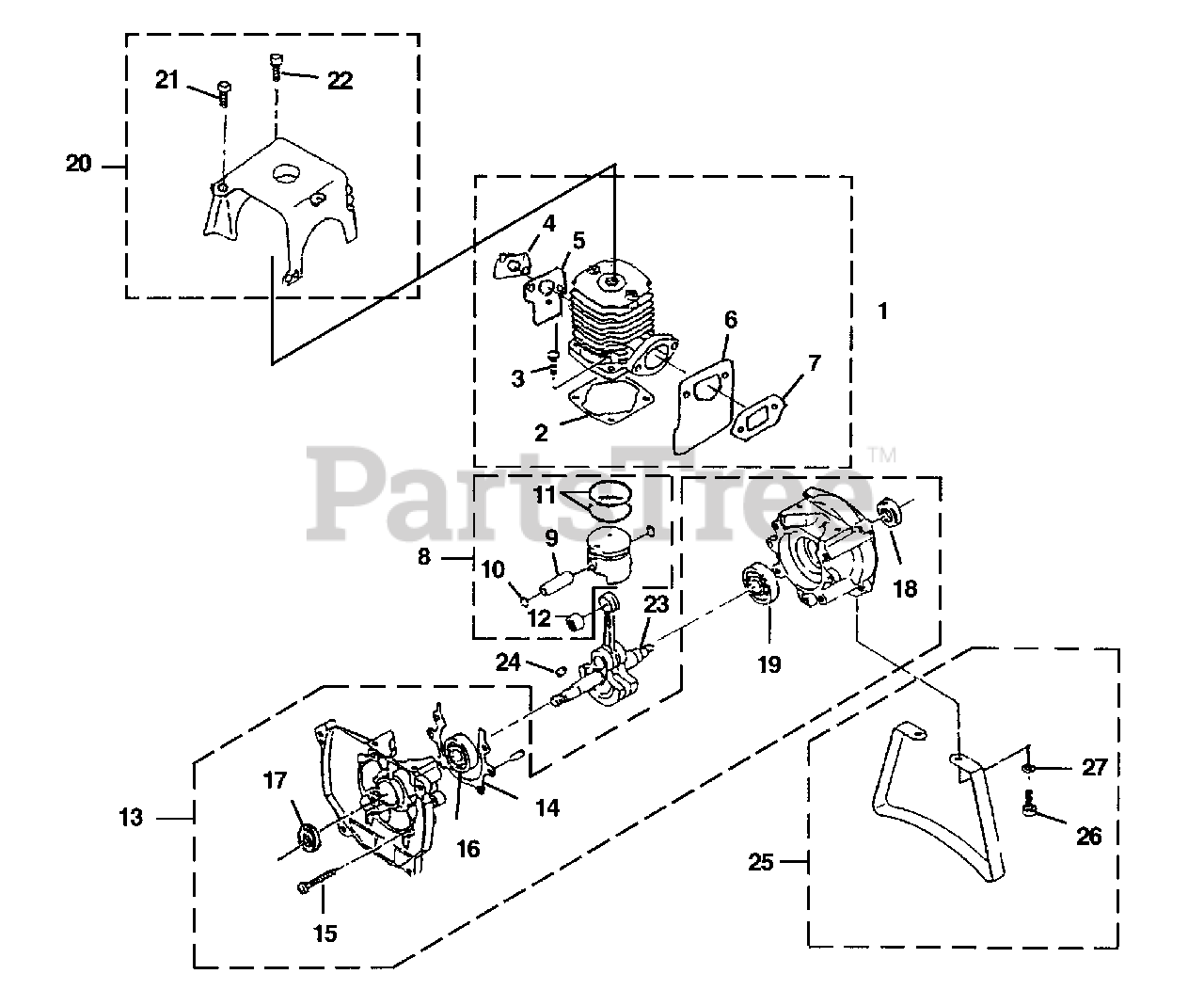

Engine Internals Parts Diagram

  • Title

1

Homelite UP05490

CYLINDER ASSEMBLY

$

$

Not available

2

Homelite PS03254

GASKET, CYLINDER

$

$

Not available

3

Homelite PS03255

SCREW

Note: Torque Specs 61 - 69 In/Lbs 6.9 - 7.8 Nm

$

$

Not available

4

Homelite PS03256

GASKET, CARB

$

$

Not available

5

Homelite PS03257

GASKET, HEAT DAM

$

$

Currently unavailable

6

Homelite PS03258

GASKET, MUFFLER

$

$

Not available

7

Homelite PS03259

GASKET, MUFFLER

$4.49

$

Usually ships in 3-7 days

0

8

Homelite UP05486

PISTON ASSEMBLY

$

$

Currently unavailable

9

Homelite PS03240

PIN - Piston

$

$

Not available

10

Homelite PS03241

RING - Retaining

$

$

Currently unavailable

11

Homelite PS00748

RING - Piston

$

$

Not available

12

Homelite PS03242

BEARING - Wrist Pin

$

$

Not available

13

Homelite UP05487

CRANKCASE ASSY

$

$

Currently unavailable

14

Homelite PS03243

GASKET, C/CASE

$

$

Not available

15

Homelite PS03244

SCREW

$

$

Currently unavailable

16

Homelite PS03003

BEARING, BALL
(Superseded to PS03154)

$

$

Not available

17

Homelite PS03004

OIL SEAL

$

$

Not available

18

Homelite PS03252

OIL SEAL

$

$

Not available

19

Homelite PS03155

BEARING, BALL

$

$

Not available

20

Homelite UP05488

CYLINDER COVER

$

$

Not available

21

Homelite PS03247

SCREW

Note: Torque Specs 11 - 15 In/Lbs 1.2 - 1.7 Nm

$

$

Not available

22

Homelite PS03248

SCREW

Note: Torque Specs 11 - 15 In/Lbs 1.2 - 1.7 Nm

$

$

Not available

23

Homelite PS03249

CRANKSHAFT

$

$

Not available

24

Homelite PS03250

KEY-Woodriff

$

$

Not available

25

Homelite UP05489

STAND - Engine

$

$

Currently unavailable

26

Homelite PS03251

SCREW - Socket Hd (M6 X 12)

Note: Torque Specs 61 - 69 In/Lbs 6.9 - 7.8 Nm

$

$

Not available

27

Homelite PS00503

WASHER-Spring

$

$

Not available
