GT 50 B (UT-26049) - Green Machine String Trimmer Deflector - Guard - Driveshaft - Stringhead Parts Diagram

String Trimmer

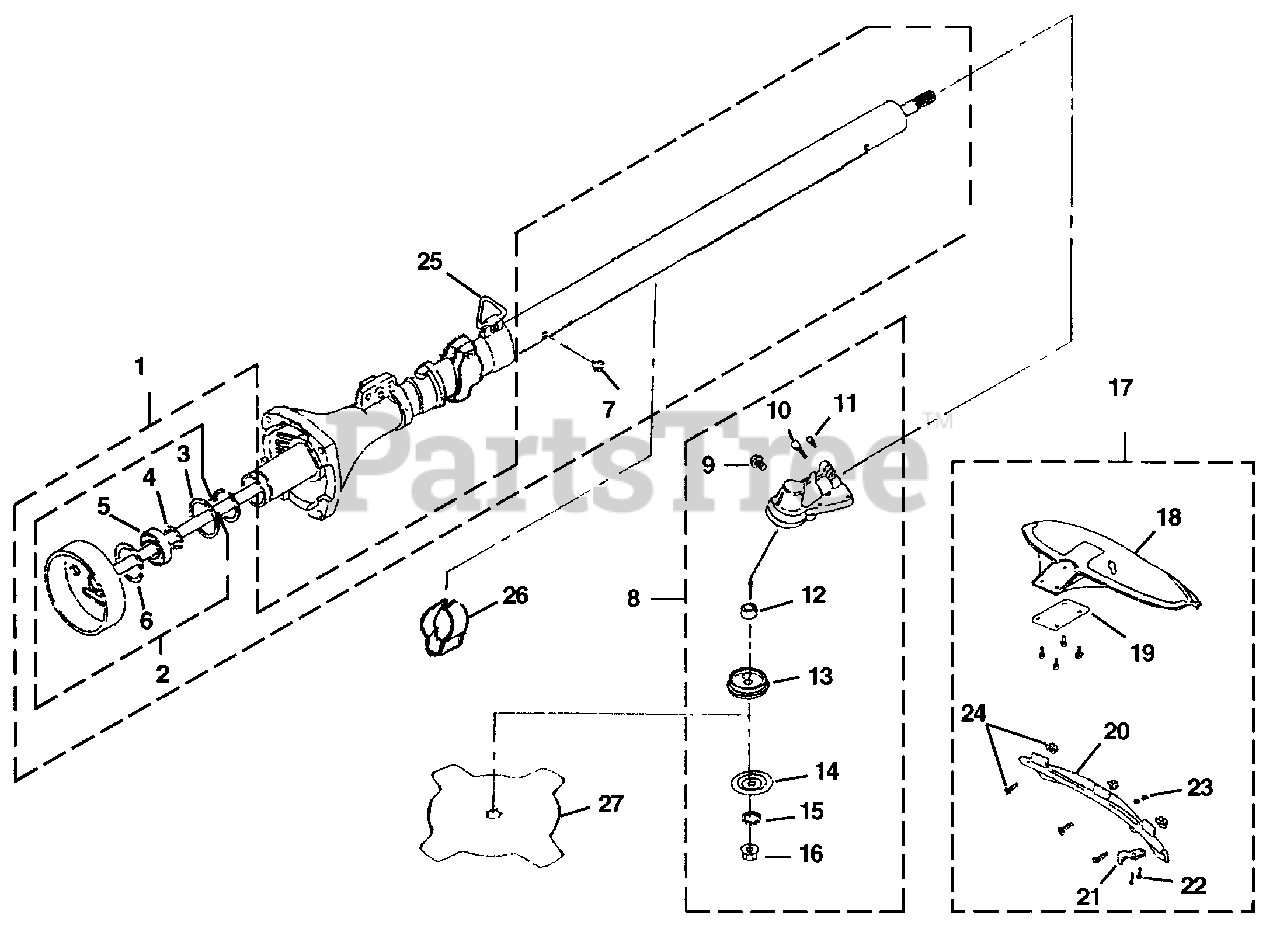

Deflector - Guard - Driveshaft - Stringhead Parts Diagram

  • Title

1

Homelite UP05507

DRIVESHAFT HSG

$

$

Not available

2

Homelite UP05508

DRIVESHAFT ASSY

$

$

Not available

3

Homelite PS03107

WASHER

$

$

Not available

4

Homelite PS03103

SNAPRING - Outer

$

$

Not available

5

Homelite PS03101

BEARING, BALL

$

$

Not available

6

Homelite PS03102

SNAPRING - Inner

$

$

Not available

7

Homelite PS03325

BOLT - Oil

$

$

Not available

8

Homelite UP05509

GEARHEAD ASSEMBLY

$

$

Not available

9

Homelite PS03326

BOLT - Grease

$

$

Not available

10

Homelite PS03327

SCREW - Socket Hd (M5 X 15 SW)

Note: Torque Specs 44 - 60 In/Lbs 5.0 - 6.8 Nm

$

$

Not available

11

Homelite PS03328

SCREW - Socket Hd (M6 X 20)

Note: Torque Specs 44 - 60 In/Lbs 5.0 - 6.8 Nm

$

$

Currently unavailable

12

Homelite PS03329

SPACER

$

$

Not available

13

Homelite PS03330

WASHER - Flange

$

$

Not available

14

Homelite PS03331

WASHER - Clamp

$

$

Not available

15

Homelite PS03332

WASHER - Spring

$

$

Not available

16

Homelite PS03333

NUT

$

$

Not available

17

Homelite UP05510

DEFLECTOR ASSY

$

$

Currently unavailable

18

Homelite PS03334

DEFLECTOR - Blade

$

$

Not available

19

Homelite PS03335

FIXING PLATE

$

$

Not available

20

Homelite PS03336

DEFLECTOR - Grass

$

$

Not available

21

Homelite PS03337

BLADE

$

$

Not available

22

Homelite PS03338

BOLT

Note: Torque Specs 52 - 68 In/Lbs 5.9 - 7.7 Nm

$

$

Not available

23

Homelite PS03339

NUT

$

$

Not available

24

Homelite PS03340

BOLT AND NUT SET

Note: Torque Specs 52 - 68 In/Lbs 5.9 - 7.7 Nm

$

$

Not available

25

Homelite PS03109

HANGER ASSEMBLY

$

$

Not available

26

Homelite PS03122

CLAMP - Wire

$

$

Not available

27

Homelite PS03161

BLADE - Cutter

$

$

Not available
