GT 50 B (UT-26049) - Green Machine String Trimmer Air Filter - Carburetor - Heat Dam Parts Diagram

String Trimmer

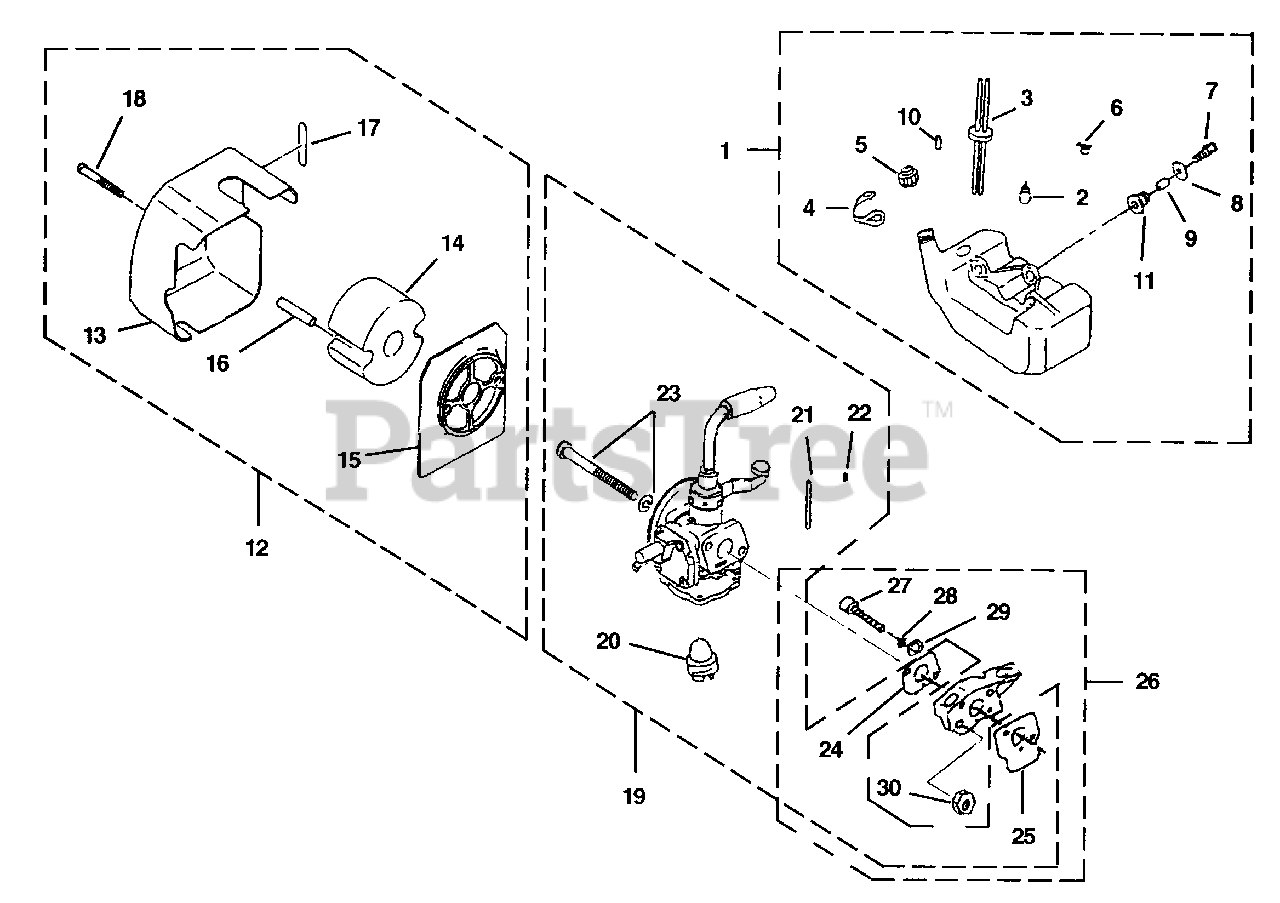

Air Filter - Carburetor - Heat Dam Parts Diagram

  • Title

1

Homelite UP05497

FUEL TANK ASSEMBLY

$

$

Currently unavailable

2

Homelite PS00520

FILTER-Fuel

$

$

Currently unavailable

3

Homelite PS03282

TUBE ASSEMBLY

$

$

Not available

4

Homelite PS00522

CAP-Retainer
(Superseded to UP02946)

$

$

Not available

5

Homelite PS02989

CAP - Fuel
(Superseded to UP02946)

$

$

Not available

6

Homelite PS00833

HOSE CLAMP

$

$

Not available

7

Homelite PS03284

SCREW

$

$

Not available

8

Homelite PS00816

WASHER

$

$

Not available

9

Homelite PS03285

SPACER

$

$

Not available

10

Homelite PS03287

CLIP

$

$

Currently unavailable

11

Homelite PS03286

BUMPER, Fuel Tank

$

$

Not available

12

Homelite UP05498

AIR FILTER ASSEMBLY

$

$

Not available

13

Homelite PS03288

BODY - Air Filter

$

$

Not available

14

Homelite PS03289

FILTER - Air

$

$

Not available

15

Homelite PS03290

HOLDER - Lead

$

$

Not available

16

Homelite PS03291

SPACER

$

$

Not available

17

Homelite PS03292

LABEL - Choke

$

$

Not available

18

Homelite PS03293

SCREW - Pan Hd

Note: Torque Specs 19 - 25 In/Lbs 2.1 - 2.8 Nm

$

$

Not available

19

Homelite UP05499

CARBURETOR ASSY

$

$

Not available

20

Homelite UP00650

AIR PURGE BULB

$

$

Currently unavailable

21

Homelite PS03294

TUBE

$

$

Not available

22

Homelite PS03287

CLIP

$

$

Currently unavailable

23

Homelite PS03298

SCREW

$

$

Not available

24

Homelite PS03299

GASKET - Carburetor

$

$

Currently unavailable

25

Homelite PS03300

GASKET - Heat Dam

$

$

Not available

26

Homelite UP05500

HEAT DAM ASSEMBLY

$

$

Not available

24

Homelite PS03299

GASKET - Carburetor

$

$

Currently unavailable

25

Homelite PS03300

GASKET - Heat Dam

$

$

Not available

27

Homelite PS03301

SCREW - Socket Hd

Note: Torque Specs 33 - 37 In/Lbs 3.7 - 4.2 Nm; Red 262 Loctite Required

$

$

Not available

28

Homelite PS00503

WASHER-Spring

$

$

Not available

29

Homelite PS03302

WASHER

$

$

Not available

30

Homelite PS03303

NUT

$

$

Not available
