GT 41 (UT-26058) - Green Machine String Trimmer Engine Internals Parts Diagram

String Trimmer

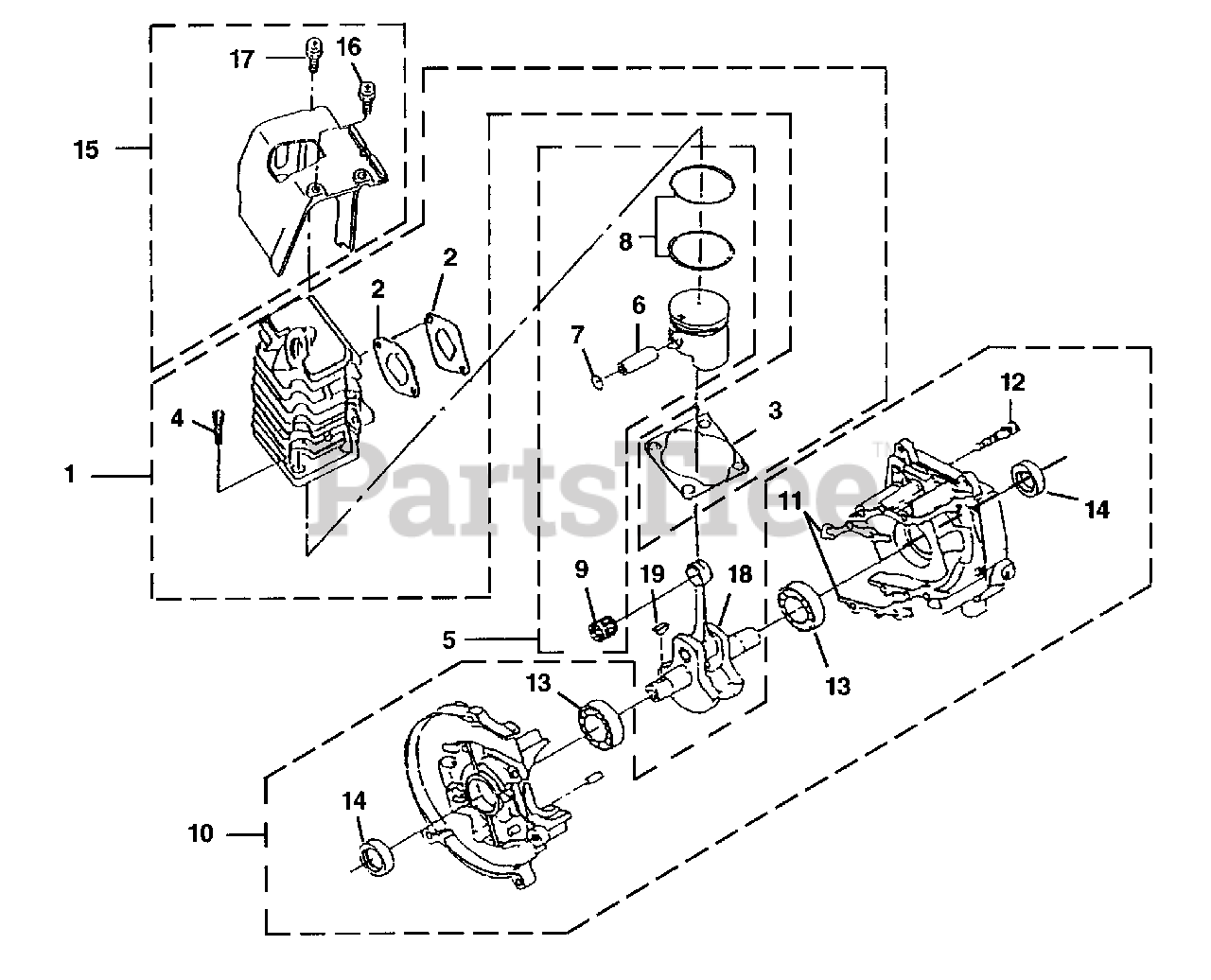

Engine Internals Parts Diagram

  • Title

1

Homelite UP05467

CYLINDER ASSEMBLY

$

$

Currently unavailable

2

Homelite PS03014

GASKET, MUFFLER

$

$

Not available

3

Homelite PS00745

GASKET-Cylinder

$

$

Not available

4

Homelite PS00747

SCREW-Socket Hd (M6 X 8)

Note: Torque Specs: 61 - 69 In/Lbs; 6.9 - 7.8 Nm

$

$

Not available

5

Homelite UP05468

PISTON ASSEMBLY

$

$

Currently unavailable

6

Homelite PS03009

PIN - PISTON

$

$

Not available

7

Homelite PS03010

RING - Retaining

$

$

Not available

8

Homelite PS03162

RING - Piston

$

$

Not available

9

Homelite PS03012

BEARING - Wrist Pin

$

$

Currently unavailable

10

Homelite UP05425

CRANKCASE ASSEMBLY

$

$

Not available

11

Homelite PS00751

GASKET-Crankcase

$

$

Not available

12

Homelite PS00752

SCREW-Socket Hd (M5 x 30 SW)

Note: Torque Specs: 33 - 37 In/Lbs; 3.7 - 4.2 Nm

$

$

Not available

13

Homelite PS03003

BEARING, BALL
(Superseded to PS03154)

$

$

Not available

14

Homelite PS03004

OIL SEAL

$

$

Not available

15

Homelite UP05448

CYLINDER COVER

$

$

Not available

16

Homelite PS00802

SCREW (M5 x 14 W SW)

Note: Torque Specs: 11 - 15 In/Lbs; 1.2 - 1.7 Nm

$

$

Not available

17

Homelite PS03074

SCREW (M5 X 20W SW)

Note: Torque Specs: 11 - 15 In/Lbs; 1.2 - 1.7 Nm

$

$

Not available

18

Homelite PS03008

CRANKSHAFT

$

$

Not available

19

Homelite PS00538

KEY-Woodruff

$

$

Not available
