GT 41 (UT-26058) - Green Machine String Trimmer Deflector - Guard - Gear Head Parts Diagram

String Trimmer

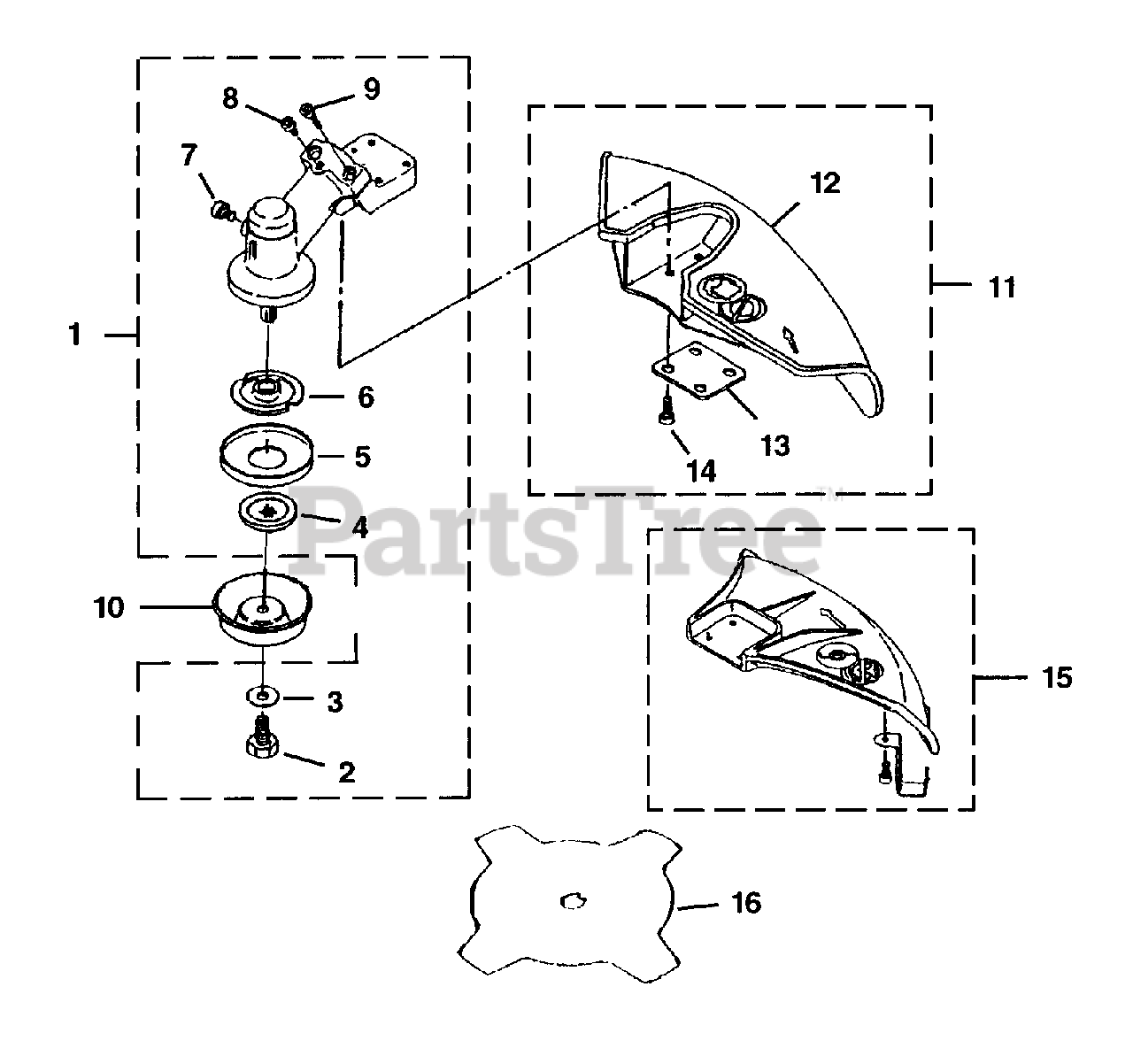

Deflector - Guard - Gear Head Parts Diagram

  • Title

1

Homelite UP05478

GEAR CASE ASSY

$

$

Currently unavailable

2

Homelite PS03214

BLADE BOLT M8, LH

Note: Torque Specs: 149 - 165 In/Lbs; 16.8 - 18.6 Nm

$

$

Not available

3

Homelite PS03213

WASHER

$

$

Not available

4

Homelite PS03212

BLADE CAP

$

$

Not available

5

Homelite PS03211

GRASS COVER (B)

$

$

Not available

6

Homelite PS03210

BLADE HOLDER

$

$

Not available

7

Homelite PS03209

TORX BOLT M6 X 8

Note: Torque Specs: 39 - 47 In/Lbs; 4.4 - 5.3 Nm

$

$

Not available

8

Homelite PS03208

TORX BOLT M5 X 10

Note: Torque Specs: 44 - 60 In/Lbs; 5.0 - 6.8 Nm

$

$

Currently unavailable

9

Homelite PS03204

TORX SCREW M5 X 20

Note: Torque Specs: 44 - 60 In/Lbs; 5.0 - 6.8 Nm

$

$

Currently unavailable

10

Homelite PS03215

BOLT COVER

$

$

Not available

11

Homelite UP05476

GUARD ASSEMBLY

$

$

Currently unavailable

12

Homelite PS03202

GUARD

$

$

Not available

13

Homelite PS03203

PLATE

$

$

Not available

14

Homelite PS03204

TORX SCREW M5 X 20

Note: Torque Specs: 52 - 68 In/Lbs; 5.9 - 7.7 Nm

$

$

Currently unavailable

15

Homelite UP05477

GUARD COMPLETE

$

$

Not available

16

Homelite PS03161

QUAD BLADE

$

$

Not available
