GT 41 (UT-26058) - Green Machine String Trimmer Carburetor - Heat Dam - Reed Valve Parts Diagram

String Trimmer

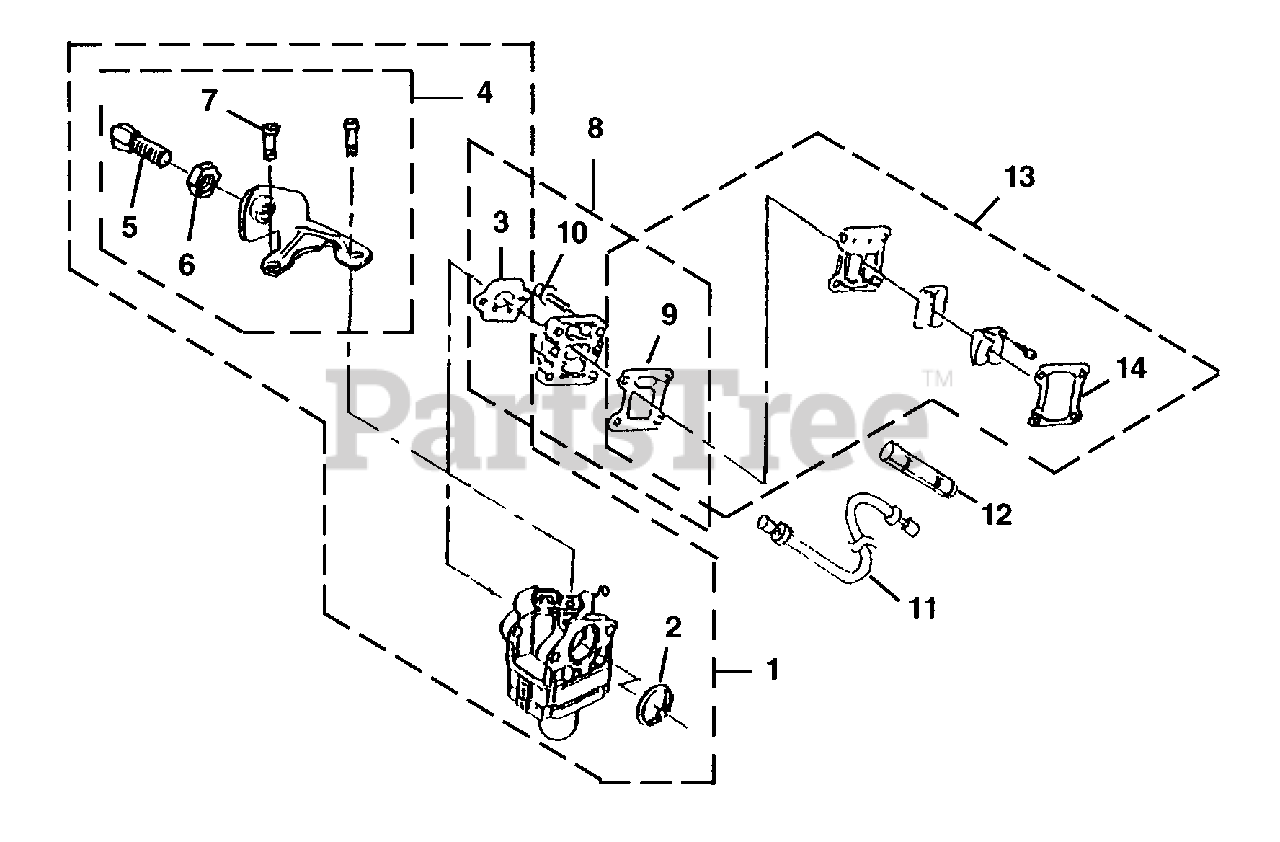

Carburetor - Heat Dam - Reed Valve Parts Diagram

  • Title

1

Homelite UP05439

CARBURETOR ASSY

$

$

Not available

2

Homelite PS00541

RING-Packing

$

$

Not available

3

Homelite PS03028

GASKET-Carburetor

$

$

Not available

4

Homelite UP00485

CABLE BRACKET

$

$

Not available

5

Homelite PS00611

SCREW-Cable Adjust

$

$

Not available

6

Homelite PS00544

NUT-Cable Adjust

$

$

Not available

7

Homelite PS00542

SCREW-Throttle Collar

$

$

Not available

8

Homelite UP05438

HEAT DAM ASSEMBLY

$

$

Not available

3

Homelite PS03028

GASKET-Carburetor

$

$

Not available

9

Homelite PS00764

GASKET-Heat Dam

$

$

Not available

10

Homelite PS00583

SCREW-Socket Hd (M5 x 20)

Note: Torque Specs: 33 - 37 In/Lbs; 3.7 - 4.2 Nm; Red 262 Loctite Required

$

$

Not available

11

Homelite PS03463

CABLE-Throttle

$

$

Currently unavailable

12

Homelite PS03464

CASE-Connector

$

$

Currently unavailable

13

Homelite UP05437

REED VALVE ASSY

$

$

Not available

9

Homelite PS00765

GASKET-Heat Dam

$

$

Not available

14

Homelite PS00766

GASKET-Reed Valve

$

$

Not available
