GT 40 B (UT-26057) - Green Machine String Trimmer Starter Parts Diagram

String Trimmer

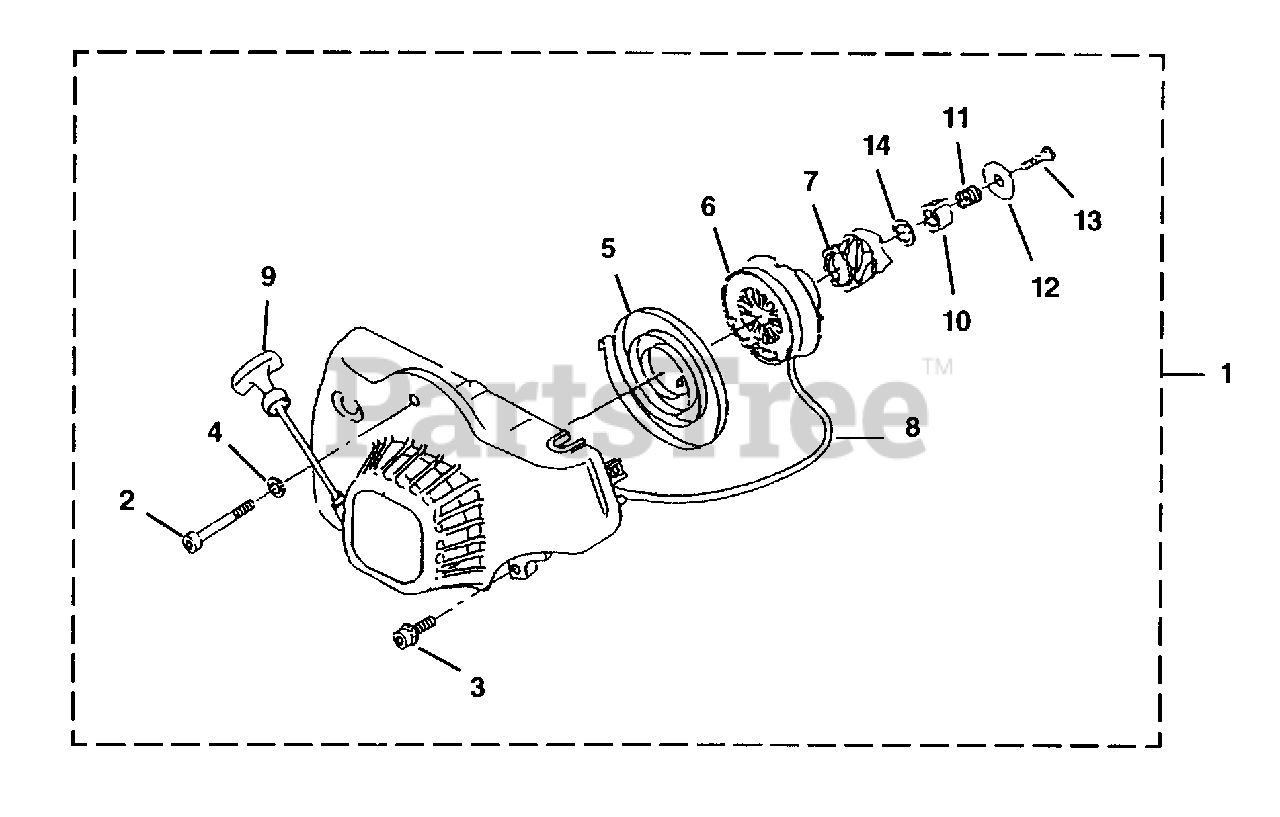

Starter Parts Diagram

  • Title
1

Homelite UP05447

STARTER ASSEMBLY

$

$

Currently unavailable

2

Homelite PS03070

SCREW - Socket Hd (M5 X 50)

Note: Torque Specs 26 - 34 In/Lbs 2.9 - 3.8 Nm

$

$

Not available

3

Homelite PS00764

SCREW-Socket Hd (M5 x 22 W)

Note: Torque Specs 26 - 34 In/Lbs 2.9 - 3.8 Nm

$

$

Not available

4

$

$

Currently unavailable

5

$

$

Not available

6

$

$

Not available

7

$

$

Not available

8

Homelite PS00711

ROPE-Starter

$

$

Not available

$

$

Not available

10

Homelite PS03066

RATCHET GUIDE

$

$

Not available

11

Homelite PS03067

SPRING - Friction

$

$

Not available

12

$

$

Not available

13

Homelite PS03069

SCREW

Note: Torque Specs 62 - 78 In/Lbs 7.0 - 8.8 Nm

$

$

Not available

14

Homelite PS03065

THRUST WASHER

$

$

Not available
