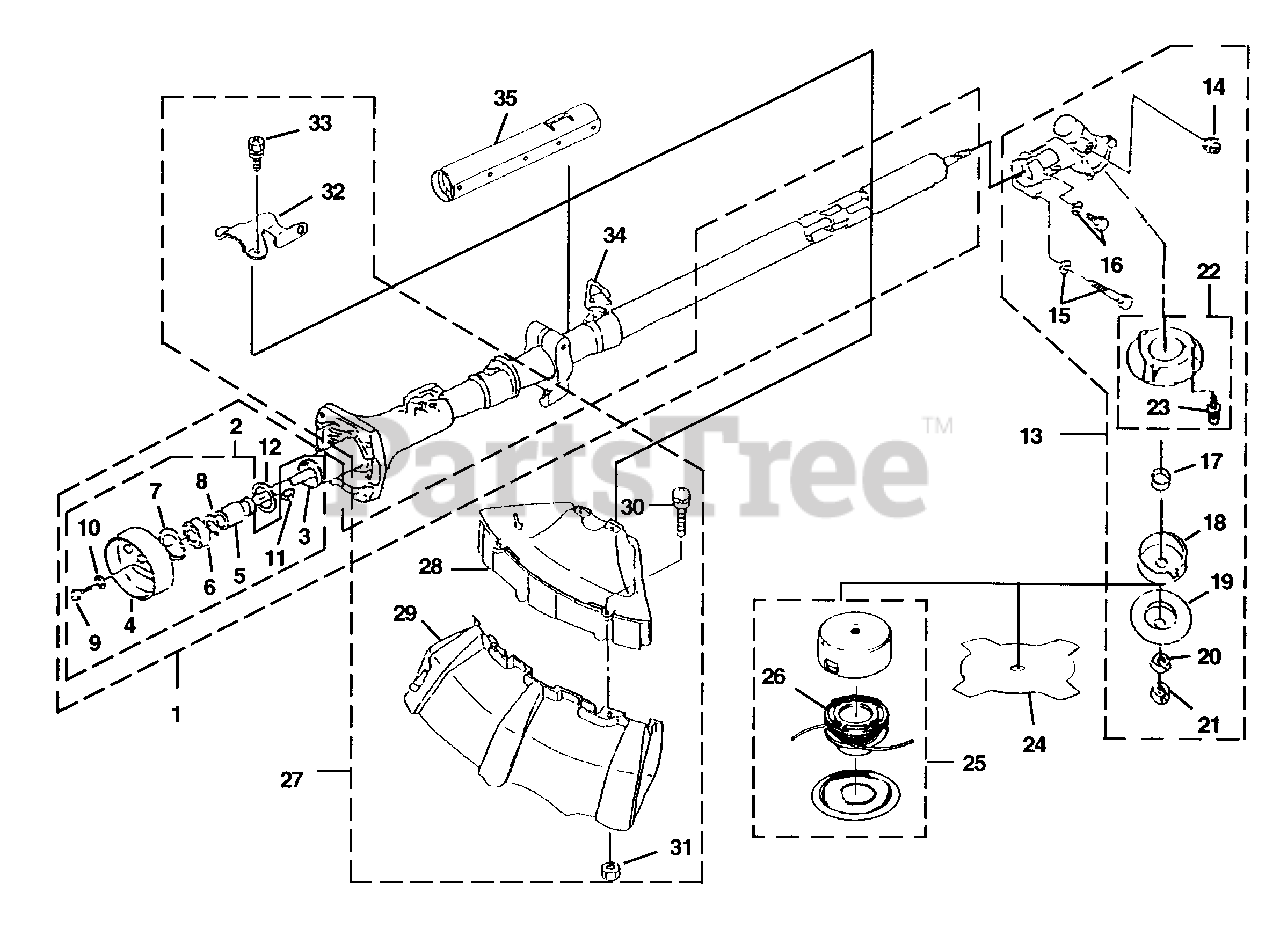

GT 40 B (UT-26057) - Green Machine String Trimmer Deflector - Guard - Driveshaft - Stringhead Parts Diagram

String Trimmer

Deflector - Guard - Driveshaft - Stringhead Parts Diagram

  • Title

1

Homelite UP05456

DRIVESHAFT HSG

$

$

Not available

2

Homelite UP05455

DRIVESHAFT ASSY

$

$

Not available

3

Homelite PS03098

DRIVESHAFT

$

$

Not available

4

Homelite PS03099

CLUTCH DRUM

$

$

Not available

5

Homelite PS03100

DAMPER

$

$

Not available

6

Homelite PS03101

BEARING, BALL

$

$

Not available

7

Homelite PS03102

SNAPPING - Inner

$

$

Not available

8

Homelite PS03103

SNAPPING - Outer

$

$

Not available

9

Homelite PS03079

BOLT

$

$

Not available

10

Homelite PS00829

WASHER

$

$

Not available

11

Homelite PS03106

SNAPPING - Outer

$

$

Not available

12

Homelite PS03107

WASHER

$

$

Not available

13

Homelite UP05462

GEARHEAD ASSEMBLY

$

$

Currently unavailable

14

Homelite PS00449

BOLT-Grease

Note: Torque Specs 39 - 47 In/Lbs 4.4 - 5.3 Nm

$

$

Not available

15

Homelite PS03131

BOLT (M6 X 32)

Note: Torque Specs 44 - 60 In/Lbs 5.0 - 6.8 Nm

$

$

Not available

16

Homelite PS03132

BOLT(M6 X 14)
(Superseded to PS03362)

Note: Torque Specs 44 - 60 In/Lbs 5.0 - 6.8 Nm

$

$

Not available

17

Homelite PS03133

SPACER

$

$

Not available

18

Homelite PS03134

WASHER - Flange

$

$

Not available

19

Homelite PS03135

WASHER - Clamp

$

$

Not available

20

Homelite PS03136

NUT

$

$

Not available

21

Homelite PS03137

NUT

Note: Torque Specs 149 - 165 In/Lbs 16.8 - 18.6 Nm

$

$

Not available

22

Homelite UP00496

GRASS GUARD

$

$

Not available

23

Homelite PS00554

SCREW-Socket Hd

Note: Torque Specs 48 - 56 In/Lbs 5.4 - 6.3 Nm

$

$

Not available

24

Homelite PS03161

BLADE - Cutter

$

$

Not available

25

Homelite UP05463

STRING HEAD ASSY

$

$

Not available

26

Homelite UP05465

SPOOL & STRING
(Superseded to UP08358)

$

$

Not available

27

Homelite UP05461

PROTECTOR ASSY

$

$

Not available

28

Homelite PS03123

PROTECTOR COMP

$

$

Not available

29

Homelite PS03124

PROTECTOR COMP
(Superseded to PS02685)

$

$

Not available

30

Homelite PS03125

SCREW ASSEMBLY
(Superseded to PS02681)

$

$

Not available

31

Homelite PS03126

NUT
(Superseded to PS02680)

$

$

Not available

32

Homelite PS03127

CLAMP, PROTECTOR

$

$

Not available

33

Homelite PS00455

BOLT ASSEMBLY, CROSSRECESS

Note: Torque Specs 52 - 68 In/Lbs 5.9 - 7.7 Nm

$

$

Not available

34

Homelite PS03109

HANGER ASSEMBLY

$

$

Not available

35

Homelite PS03160

CUSION

$

$

Currently unavailable
