GT 40 B (UT-26057) - Green Machine String Trimmer Carburetor - Heat Dam - Reed Valve Parts Diagram

String Trimmer

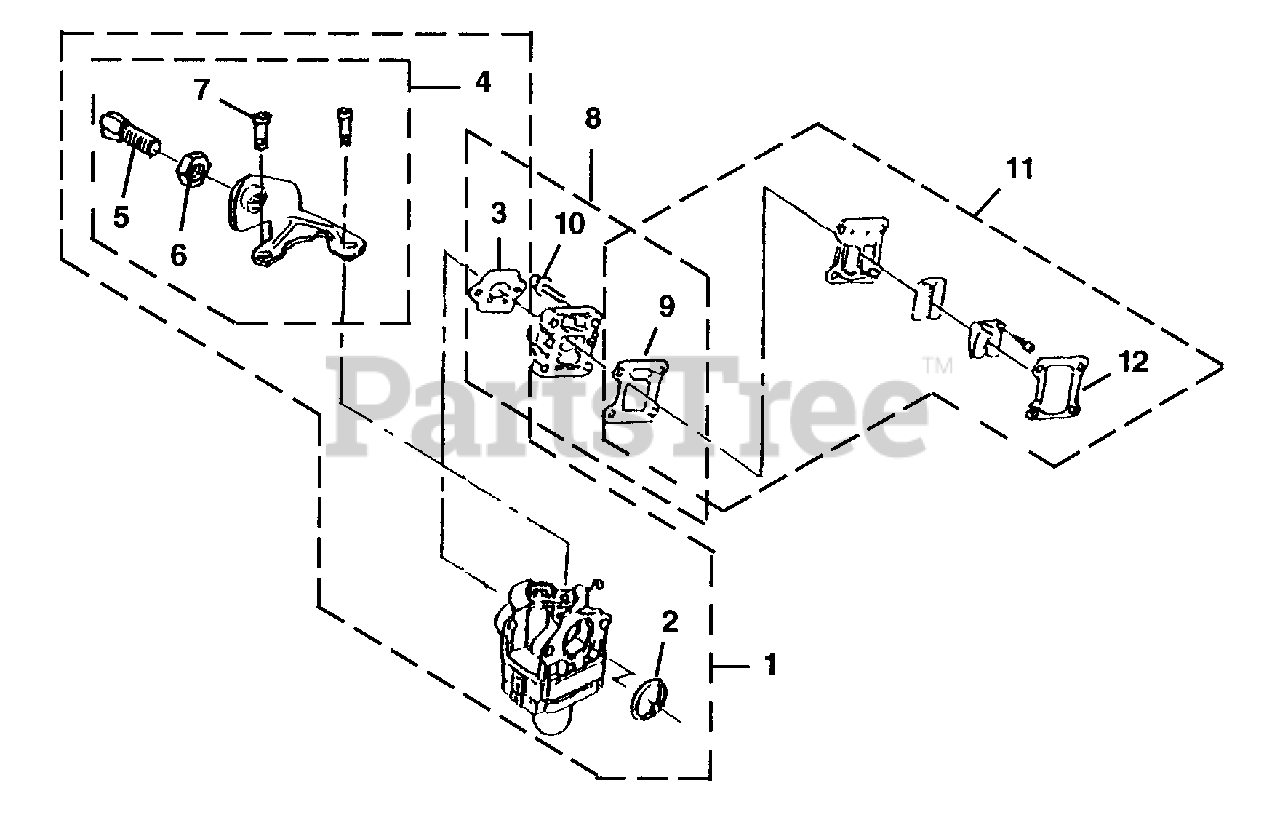

Carburetor - Heat Dam - Reed Valve Parts Diagram

  • Title

1

Homelite UP05439

CARBURETOR ASSY

$

$

Not available

2

Homelite PS00541

RING-Packing

$

$

Not available

3

Homelite PS03028

GASKET-Carburetor

$

$

Not available

4

Homelite UP00485

CABLE BRACKET

$

$

Not available

5

Homelite PS00611

SCREW-Cable Adjust

$

$

Not available

6

Homelite PS00544

NUT-Cable Adjust

$

$

Not available

7

Homelite PS00542

SCREW-Throttle Collar

Note: Torque Specs 48 - 56 In/Lbs 5.4 - 6.3 Nm

$

$

Not available

8

Homelite UP05438

HEAT DAM ASSEMBLY

$

$

Not available

3

Homelite PS03028

GASKET-Carburetor

$

$

Not available

9

Homelite PS00764

GASKET-Heat Dam

$

$

Not available

10

Homelite PS00583

SCREW-Socket Hd (M5 x 20)

Note: Torque Specs 33 - 37 In/Lbs 3.7 - 4.2 Nm; Red 262 Loctite required

$

$

Not available

11

Homelite UP05437

REED VALVE ASSY

$

$

Not available

9

Homelite PS00765

GASKET-Heat Dam

$

$

Not available

12

Homelite PS00766

GASKET-Reed Valve

$

$

Not available
