GT 35 B (UT-26056) - Green Machine String Trimmer Exhaust System Parts Diagram

String Trimmer

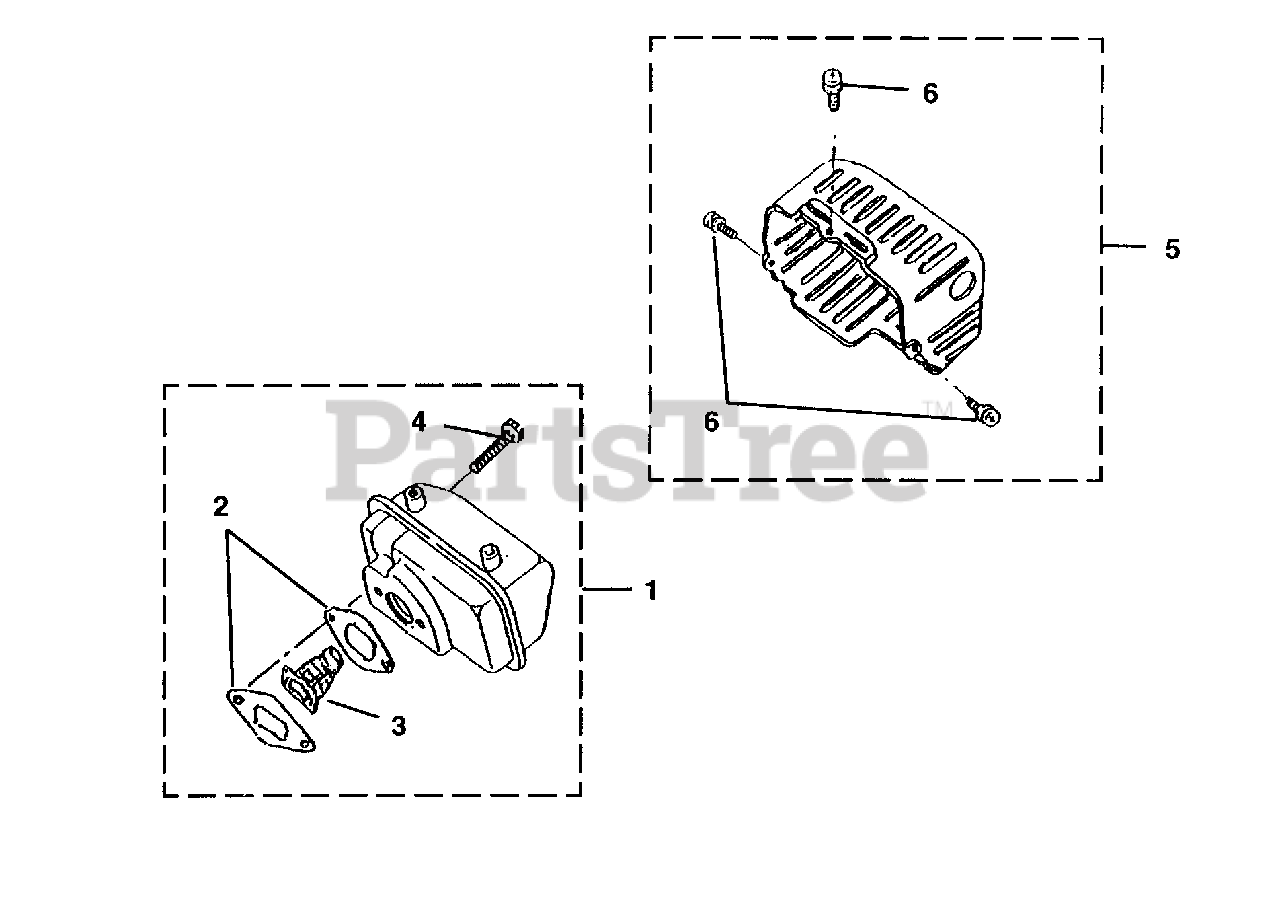

Exhaust System Parts Diagram

  • Title

1

Homelite UP05428

MUFFLER ASSEMBLY

$

$

Currently unavailable

2

Homelite PS03014

GASKET Muffler

$

$

Not available

3

Homelite PS03016

SPARK ARRESTER

$

$

Not available

4

Homelite PS03017

SCREW - Socket Hd (M6 X 60 SW)

Note: Torque Specs 61 - 69 In/Lbs, 6.9 - 7.8 Nm. Red 262 Loctite Required

$

$

Currently unavailable

5

Homelite UP05449

MUFFLER COVER

$

$

Not available

6

Homelite PS00802

SCREW (M5 x 14 W SW)

Note: Torque Specs 11 - 15 In/Lbs, 1.2 - 1.7 Nm

$

$

Not available
